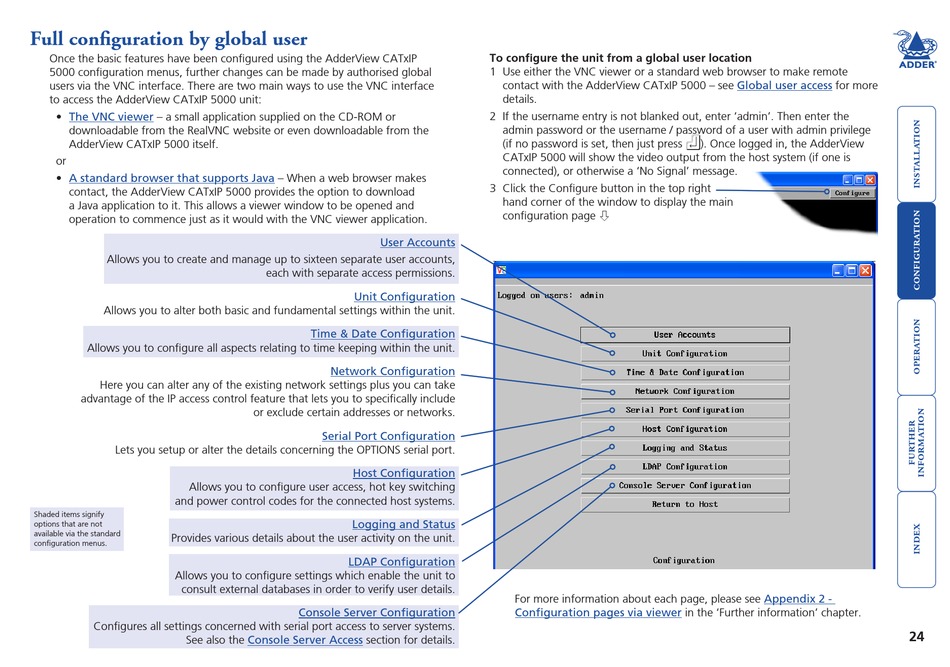

Full configuration by global user

Once the basic features have been configured using the AdderView CATxIP
5000 configuration menus, further changes can be made by authorised global
users via the VNC interface. There are two main ways to use the VNC interface
to access the AdderView CATxIP 5000 unit:
• The VNC viewer – a small application supplied on the CD-ROM or
downloadable from the RealVNC website or even downloadable from the
AdderView CATxIP 5000 itself.
or
• A standard browser that supports Java
contact, the AdderView CATxIP 5000 provides the option to download
a Java application to it. This allows a viewer window to be opened and
operation to commence just as it would with the VNC viewer application.
Allows you to create and manage up to sixteen separate user accounts,
Allows you to alter both basic and fundamental settings within the unit.
Allows you to configure all aspects relating to time keeping within the unit.
Here you can alter any of the existing network settings plus you can take
advantage of the IP access control feature that lets you to specifically include
Lets you setup or alter the details concerning the OPTIONS serial port.
Allows you to configure user access, hot key switching
and power control codes for the connected host systems.
Shaded items signify
options that are not
available via the standard
Provides various details about the user activity on the unit.
configuration menus.
Allows you to configure settings which enable the unit to
consult external databases in order to verify user details.
Configures all settings concerned with serial port access to server systems.
See also the
– When a web browser makes
User Accounts
each with separate access permissions.
Unit Configuration
Time & Date Configuration
Network Configuration
or exclude certain addresses or networks.
Serial Port Configuration
Host Configuration
Logging and Status
LDAP Configuration
Console Server Configuration
Console Server Access section for details.
To configure the unit from a global user location
1 Use either the VNC viewer or a standard web browser to make remote
contact with the AdderView CATxIP 5000 – see
details.
2 If the username entry is not blanked out, enter 'admin'. Then enter the
admin password or the username / password of a user with admin privilege
(if no password is set, then just press
CATxIP 5000 will show the video output from the host system (if one is
connected), or otherwise a 'No Signal' message.
3 Click the Configure button in the top right
hand corner of the window to display the main

configuration page
For more information about each page, please see
Configuration pages via viewer
Global user access
for more
). Once logged in, the AdderView
Appendix 2 -
in the 'Further information' chapter.
24
