Local user

A locally connected video monitor, keyboard
(and mouse) are required during the initial
configuration. These are also useful during
normal use to allow quick local control of any
connected computer systems. The AdderView
CATxIP 5000 unit directly supports USB style
keyboards and mice.
The local user port can also be used to
cascade this unit to another AdderView
CATxIP 5000 unit using a CAM. This allows
many more hosts to be linked within a single
installation. See Enterprise+ installations
for details.
Note: Rather than connecting a separate
keyboard and mouse, you can alternatively
attach a combined keyboard and mouse
device (such as a KVM rack drawer) to just
one of the USB ports. However, the switch
will only support one logical keyboard device
and one logical mouse device.
LOCAL GLOBAL
USER USERS
IP
POWER
IN
CAM
COMPUTER POWER
SYSTEM SWITCH

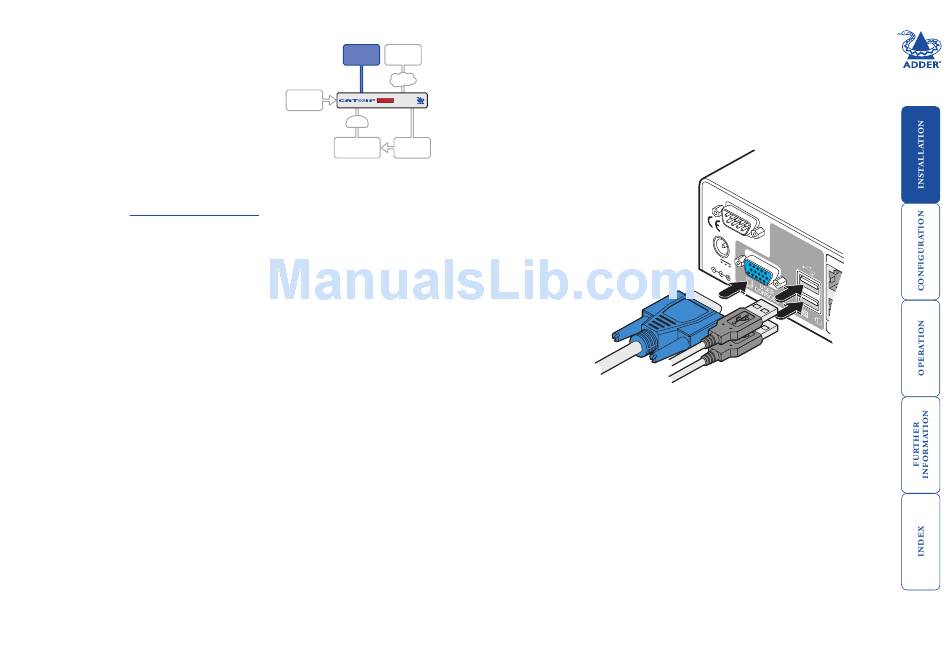

To connect the local user port
1 Position a suitable video monitor, keyboard and mouse in the vicinity of the
AdderView CATxIP 5000 unit such that their cables will easily reach.
2 Attach the video monitor, keyboard and mouse connectors to the sockets,
collectively labelled as
USER CONSOLE
5000 unit.
From video monitor
From USB keyboard and mouse
, at the rear of the AdderView CATxIP
AdderView CATxIP 5000
rear panel
O P
T I O
N S
5 V
4 . 0
1 6
A
1 2
C O
M P
U T
1
1
11
