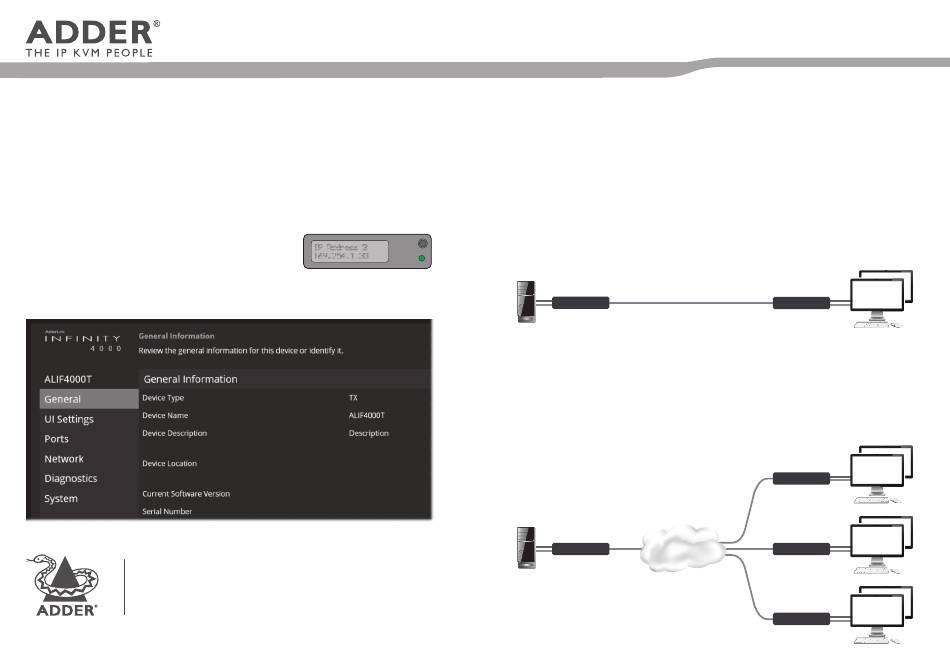

ADDER ADDERLink INFINITY 4000 Quick Start

ADDERLink™ INFINITY 4000 configuration via web pages
Each ALIF4000 unit hosts its own internal set of web pages which contain all configuration details
and settings. You will need to use a computer connected to the same network as each ALIF4000
unit to access the web pages. Additionally, on the console attached to the ALIF4000 RX unit, you
can access its configuration details via the On Screen Display (OSD) by pressing CTRL + ALT + C.
To configure ALIF4000 units via their web pages
Run a web browser on your computer and enter the IP address of the required ALIF4000 unit:
TX: 169.254.1.33
The default addresses are
If the IP address of a unit has been changed, you can either:
• Discover the unit's main IP address by pressing the small
button on the front panel next to the OLED screen to reveal
the value for IP Address 3.
• Alternatively, providing it is appropriate to do so, perform a manual factory reset (see the
center pages) to restore the default address.
The opening page should be displayed:
www.adder.com/en/kvm-solutions/adderlink-infinity-4000
www.adder.com
© 2019 Adder Technology Limited • All trademarks are acknowledged.
Part No. MAN-QS-ALIF4000-ADDER_V1.0
RX: 169.254.1.32
and
IP Address 3
169.254.1.33
Full user details and setup instructions can be found at:
ADDERLink
Welcome
This quick start guide covers some of the key points of the ADDERLink™ INFINITY 4000 unit. Full user details
and setup instructions can be found at www.adder.com/en/kvm-solutions/adderlink-infinity-4000
Please read the supplied safety instruction leaflet before use.

Initial configuration

ALIF4000 units can be linked in two mains ways: Direct or Networked.
Direct linking
Where ALIF4000 transmitters and receivers are directly linked to each other, very little configuration
action is required, provided that they both have their factory default settings in place - just link them
together. If the standard settings have been changed in a previous installation, you merely need to
perform a manual factory reset on each unit. Please see the center pages.
ALIF4000 TX
Networked linking
Where ALIF4000 units are connected via networked links, you can either configure them individually,
or configure them collectively using an AIM server:
• Configuring networked ALIF units individually - You need to specify the network addresses
of the ALIF4000 units so that they can locate each other. This can be done using via OSD on the
console connected to the RX unit by pressing CTRL + ALT + C. Please see the rear page.
• Configuring networked ALIF units collectively - The ADDERLink™ INFINITY Management
(AIM) server allows you to configure, control and coordinate any number of ALIF transmitters and
receivers from a single application. See adder.com for details.
Note: If you are using one or more ALIF4000 transmitters
within an installation managed by an AIM server, the AIM
server must be running firmware version 4.9 or above.
10 Gigabit
ALIF4000 TX
Switching
IMPORTANT: When using AIM to configure ALIF units, it is
vital that all units that you wish to locate and control are
set to their factory default settings. Otherwise they will
not be located by the AIM server. If necessary, perform a
manual factory reset on each ALIF unit. See center pages.
INFINITY 4000
™

Quick Start

ALIF4000 RX
ALIF4000 RX
ALIF4000 RX
ALIF4000 RX
