Introduction

Thank you for choosing the AdderView CATxIP 5000
from Adder Technology. This compact unit allows one
local user plus four global users (located anywhere that
has a network/internet connection) to view and take
full control of multiple host computer systems.
Each global user simply requires a Real VNC client
application which is supplied on CD and can also be
downloaded from various locations, even from the
AdderView CATxIP 5000 unit itself. Alternatively, the
unit can quickly serve a Java applet to a global user,
requiring only a standard internet browser to operate.
Optional power control Local user
One user can
You have the opportunity
be connected
to attach one or more
directly to the
power switches. These
AdderView
control the supply to
CATxIP 5000.
the system(s) and allow
The local user
a remote user to hard
has the same
reset any system that has
abilities and
suffered a failure.
status as the
global users.
Power switch
CAM
CAM formats
The CAMs are available in different formats to
support all common types of systems, which
can easily be mixed within a multi-format
configuration. Console CAMs use a serial
connection only and link to specialist devices.
Like the other models within the highly successful
AdderView CATx family, this unit takes full advantage of
category 5, 5e or 6 structured cabling to provide flexible
installation and configuration. Every connected computer
is linked by up to ten metres of standard CATx cable and
one of five types of CAM (Computer Access Module)
according to the port arrangements on each computer.
The AdderView CATxIP 5000 can directly support up to
sixteen computers, however, this total can be increased
to a maximum of 256 by adding other AdderView
units in cascade to provide a much larger network of
LOC REM VNC 100 LNK PWR
www.adder.com
CAM CAM CAM CAM
controlled computers. All AdderView CATx models
provide full enterprise level security to restrict access to
authorised personnel.
Through the use of Console CAMs the AdderView
CATxIP 5000 also allows global users to make console
connections to one or more specialist servers or
network devices; thus extending the flexibility of the
remote management facilities available.
Optional power switch control allows you to remotely
perform a hard reset on any host system, no matter
how badly it may have locked up.
IP network/
Internet
ADDER.NET keeping control
For larger installations, the ADDER.NET application
manages your hosts, devices and users to enable quick
configuration and secure, flexible operation. A copy is
CAM
included with every AdderView CATxIP 5000 unit.

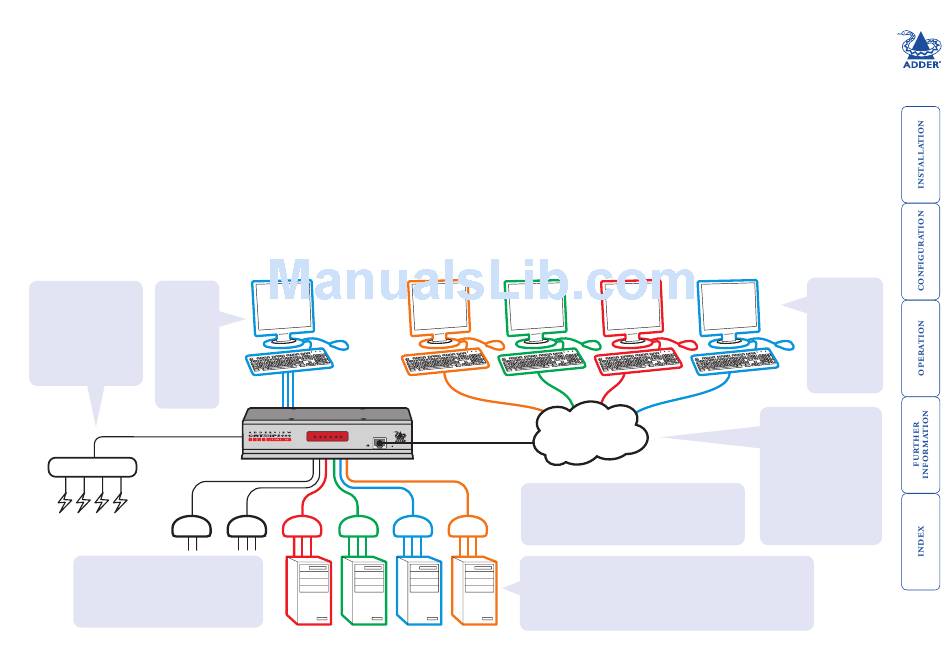

Many computers
Each AdderView CATxIP 5000 unit can directly support sixteen computer
systems.
Each host system is linked using a Computer Access Module (CAM) and
category 5, 5e or 6 cabling to a maximum distance of 10m (32 ft) from
the AdderView CATxIP 5000 unit.
Global users
The unit can
support up to
four global users
at any one time.
Each user can
link to any host
computer for
which they have
permission.
IP network/Internet
The IP port allows direct
connection to an Ethernet-
based local network and
from there onto the wider
Internet.
Alternatively, the robust
AdderView CATxIP 5000
security system will allow
direct connection to the
outside world. Support for
IPv6 connections is included.
