12. Plug one end of the appropriate genlock cable (for two, three, or four screens) into the
connector on the PCI card. The connector is keyed for proper insertion.
CAUTION You must connect the genlock cable before you insert the multi-screen option.
13. Identify the PCI slots you will use for the Intense 3D Wildcat 4000 multi-screen options.
You will skip the PCI slot adjacent to the Intense 3D Wildcat 4000 PCI card you installed
in steps 6 through 12. For each additional multi-screen option, you will use two PCI
slots, leaving an open PCI slot between multi-screen options.
CAUTION You must leave an open PCI slot between multi-screen options.
14. Repeat steps 7 through 12 for each multi-screen option you want to install.
CAUTION Connect the vertex data bus cable connector and the genlock cable connector to each
multi-screen option before installing the next one.

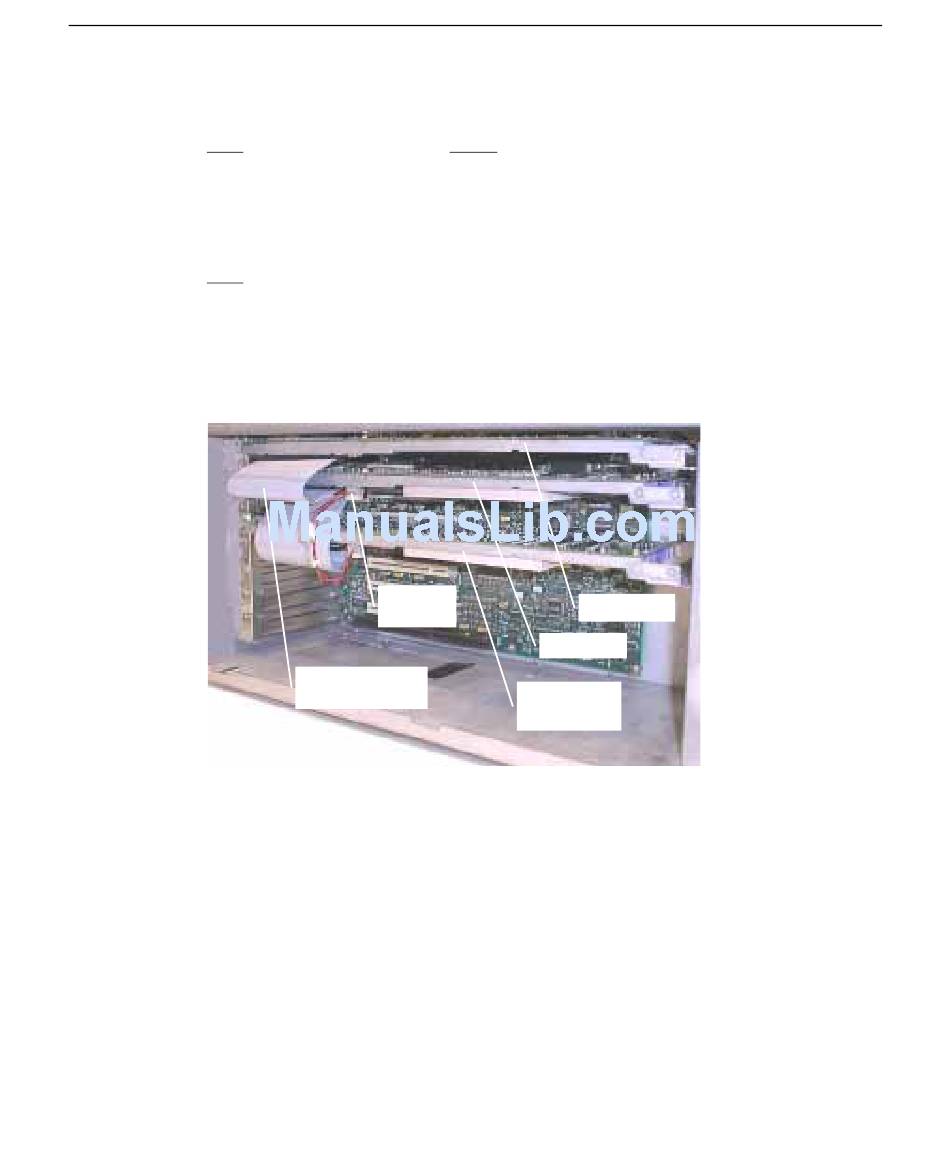

The following picture shows an example installation of a two-screen configuration.

Finishing the Installation

To finish the installation:
1. Close the workstation.
2. Connect the workstation's monitors as described in Chapter 1, "Getting Started."
Genlock
Cable
Vertex Data Bus
Cable
AGP Card
PCI Card
Multi-Screen
Option
