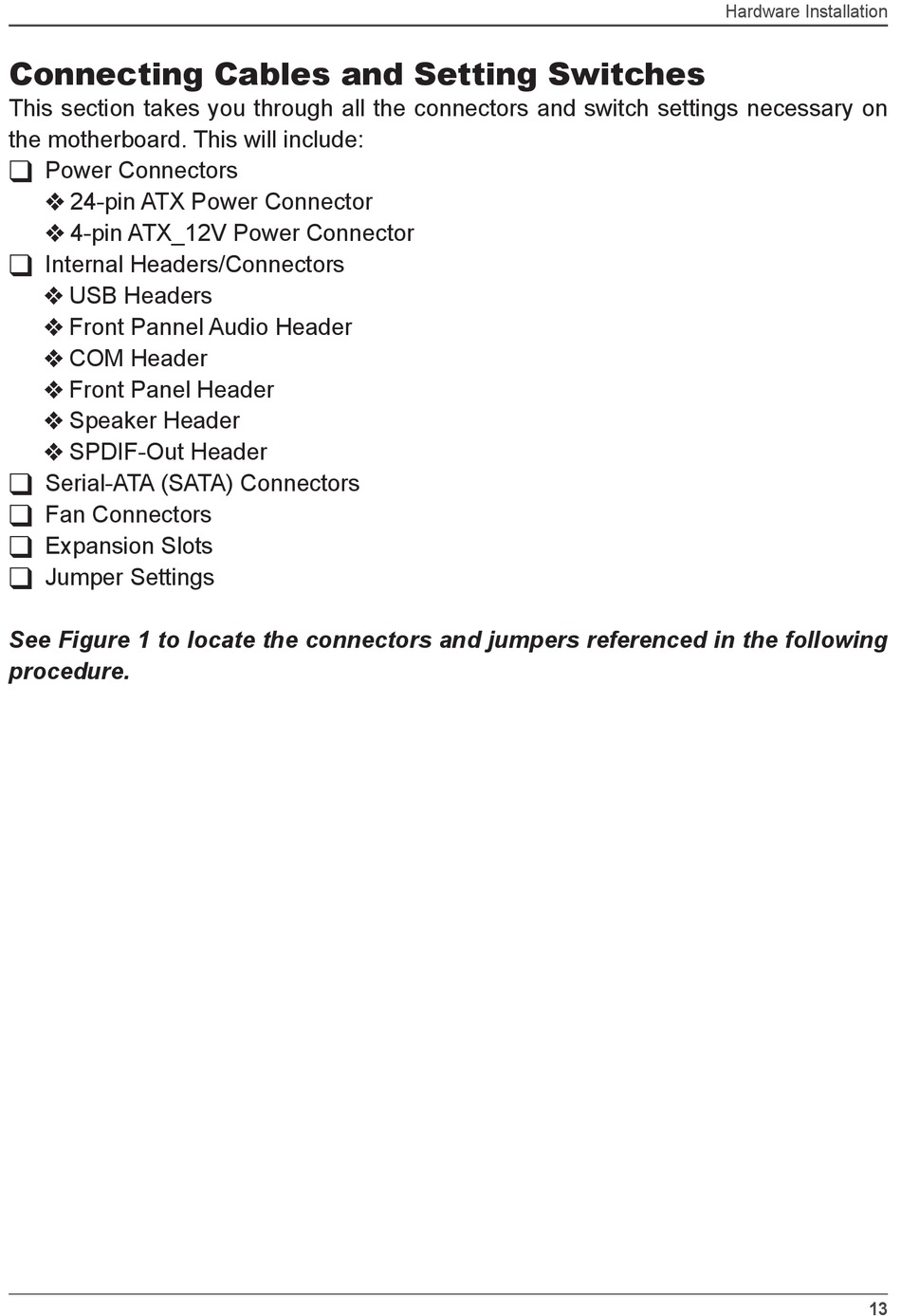

Connecting Cables and Setting Switches

This section takes you through all the connectors and switch settings necessary on
the motherboard. This will include:
q Power Connectors
v 24-pin ATX Power Connector
v 4-pin ATX_12V Power Connector
q Internal Headers/Connectors
v USB Headers
v Front Pannel Audio Header
v COM Header
v Front Panel Header
v Speaker Header
v SPDIF-Out Header
q Serial-ATA (SATA) Connectors
q Fan Connectors
q Expansion Slots
q Jumper Settings
See Figure 1 to locate the connectors and jumpers referenced in the following
procedure.
Hardware Installation
13
