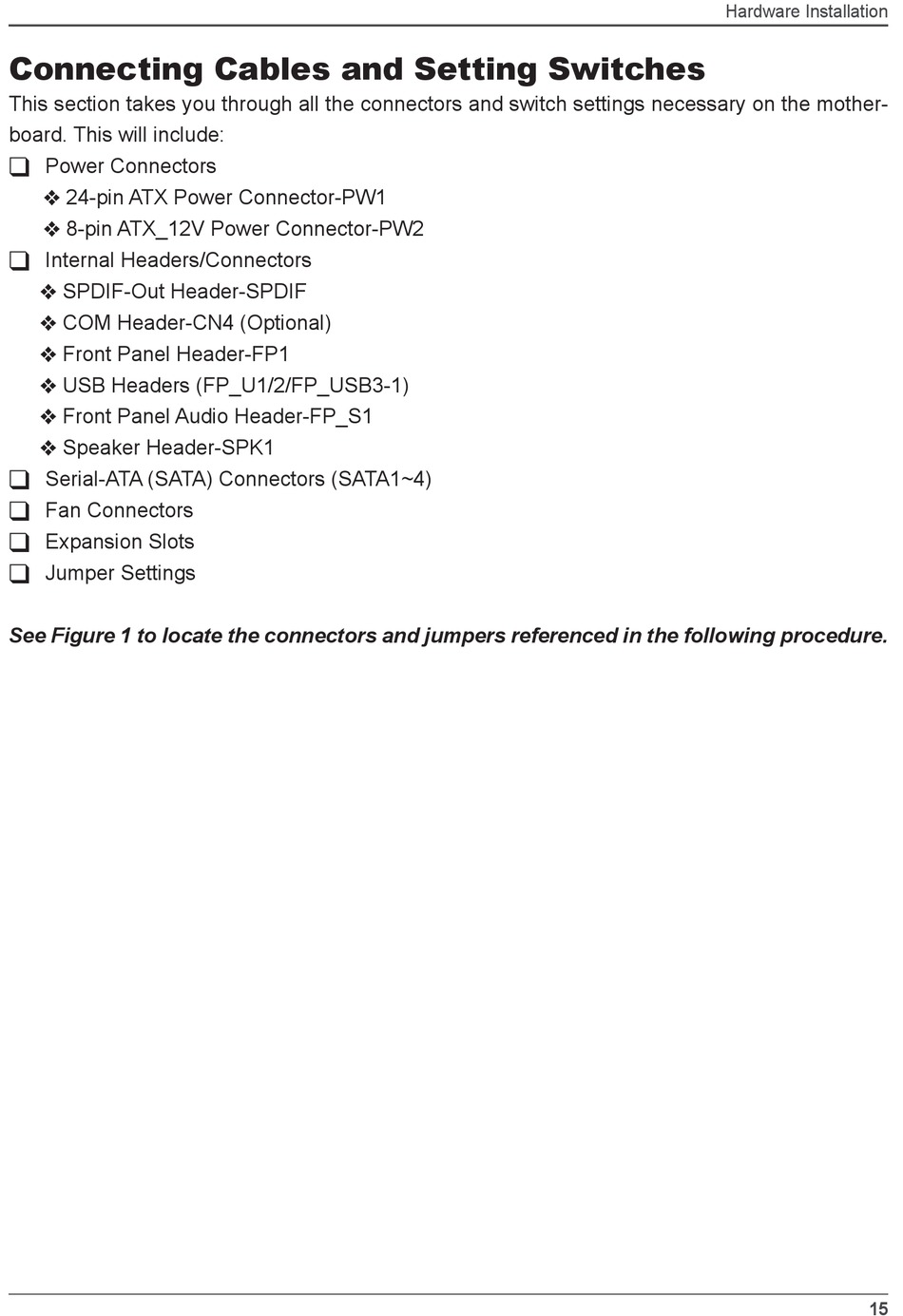

Connecting Cables and Setting Switches

This section takes you through all the connectors and switch settings necessary on the mother-
board. This will include:
q Power Connectors
v 24-pin ATX Power Connector-PW1
v 8-pin ATX_12V Power Connector-PW2
q Internal Headers/Connectors
v SPDIF-Out Header-SPDIF
v COM Header-CN4 (Optional)
v Front Panel Header-FP1
v USB Headers (FP_U1/2/FP_USB3-1)
v Front Panel Audio Header-FP_S1
v Speaker Header-SPK1
q Serial-ATA (SATA) Connectors (SATA1~4)
q Fan Connectors
q Expansion Slots
q Jumper Settings
See Figure 1 to locate the connectors and jumpers referenced in the following procedure.
Hardware Installation
15
