Motherboard Specifications - Zotac A75ITX series User Manual

AMD A75ITX series motherboard

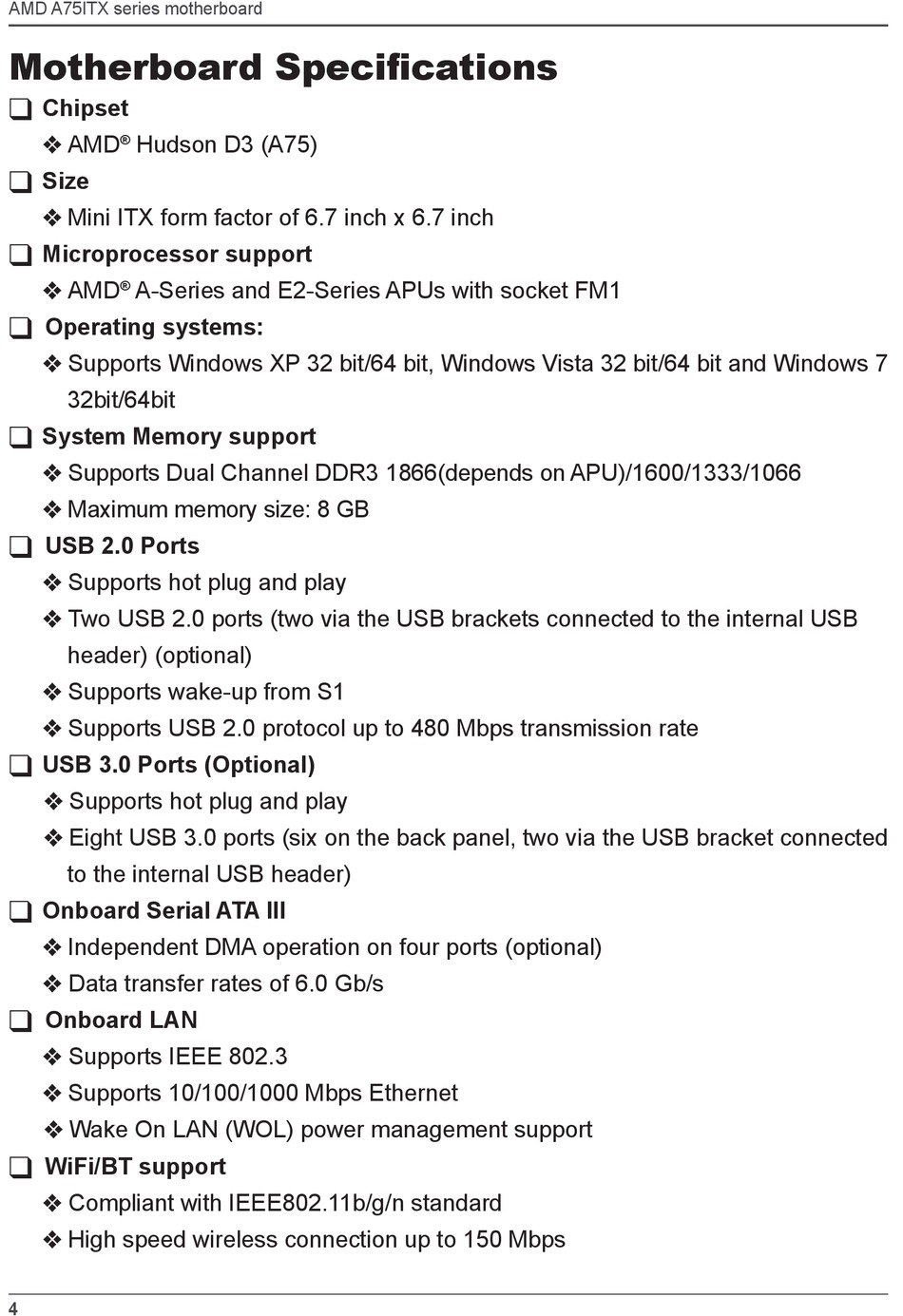

Motherboard Specifications

q Chipset
v AMD Hudson D3 (A75)
®
q Size
v Mini ITX form factor of 6.7 inch x 6.7 inch
q Microprocessor support
v AMD A-Series and E2-Series APUs with socket FM1
®
q Operating systems:
v Supports Windows XP 32 bit/64 bit, Windows Vista 32 bit/64 bit and Windows 7
32bit/64bit
q System Memory support
v Supports Dual Channel DDR3 1866(depends on APU)/1600/1333/1066
v Maximum memory size: 8 GB
q USB 2.0 Ports
v Supports hot plug and play
v Two USB 2.0 ports (two via the USB brackets connected to the internal USB
header) (optional)
v Supports wake-up from S1
v Supports USB 2.0 protocol up to 480 Mbps transmission rate
q USB 3.0 Ports (Optional)
v Supports hot plug and play
v Eight USB 3.0 ports (six on the back panel, two via the USB bracket connected
to the internal USB header)
q Onboard Serial ATA III
v Independent DMA operation on four ports (optional)
v Data transfer rates of 6.0 Gb/s
q Onboard LAN
v Supports IEEE 802.3
v Supports 10/100/1000 Mbps Ethernet
v Wake On LAN (WOL) power management support
q WiFi/BT support
v Compliant with IEEE802.11b/g/n standard
v High speed wireless connection up to 150 Mbps
4
