AMD A75ITX series motherboard

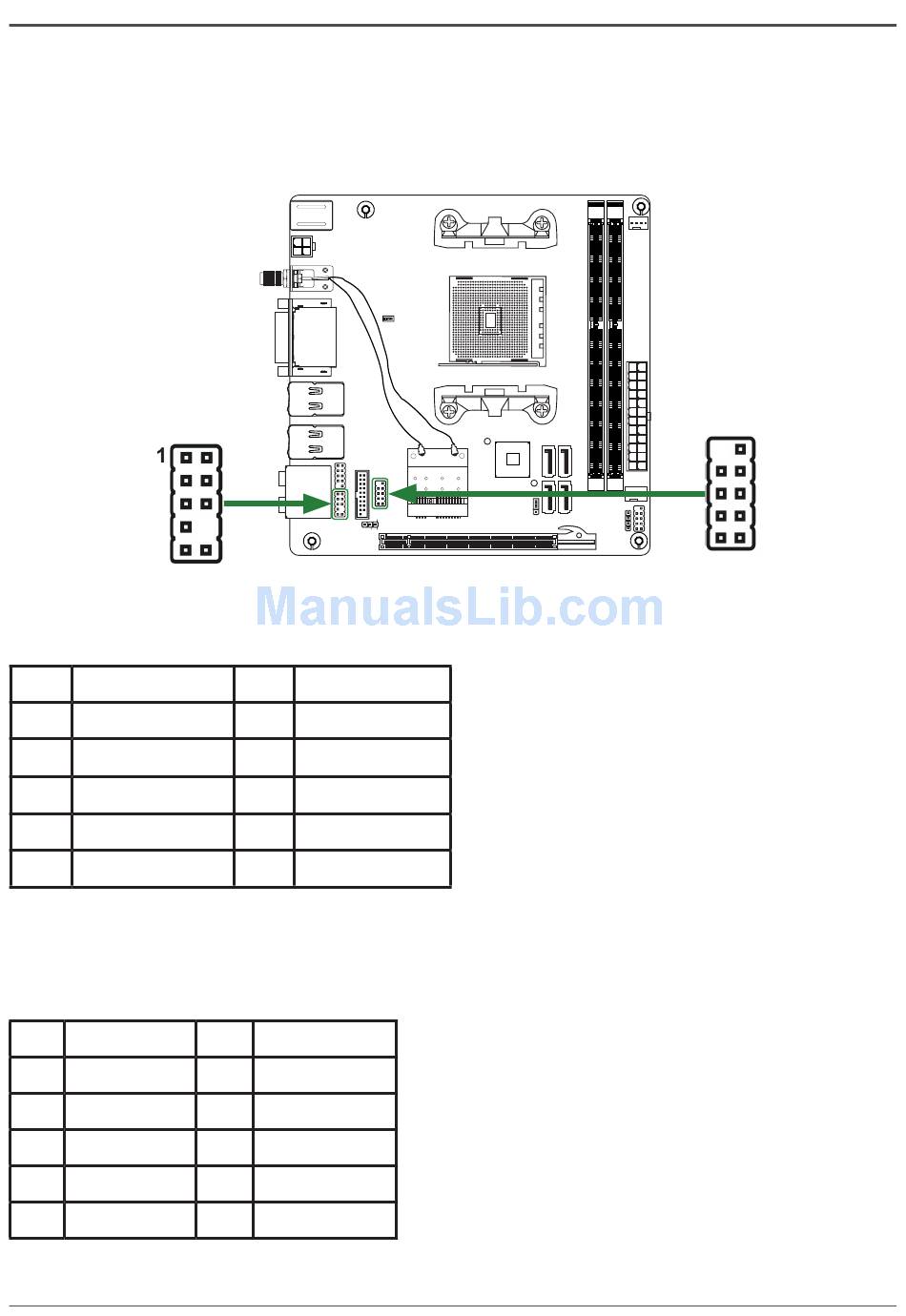

FP Audio Header
The audio connector supports HD audio standard and provides two kinds of audio
output choices: the Front Audio, the Rear Audio. The front Audio supports re-tasking
function.
FP_AUDIO1
FP_AUDIO1-Pin Definition
PIN
Assignment
1
MIC2(L)
3
MIC(R)
5
Front Audio(R)
7
FAVDIO-JD
9
Front Audio(L)
COM Header (optional)
CN6 - Pin Definition
Pin
Signal
1
DCD
3
TXD
5
GND
7
RTS
9
RI
16
PIN
Assignment
2
GND
4
-ACZ-DET
6
Reserved
8
Key(No pin)
10
Reserved
Pin
Signal
2
RXD
4
DTR
6
DSR
8
CTS
10
Key(No pin)
121
121
120
240
120
240
Note:
In order to utilize the front audio header,
your chassis must have front audio
connector. Also please make sure the
pin assignment on the cable is the same
as the pin assignment on the mainboard
header. To find out if the chassis you are
buying supports a front audio connector,
please contract your dealer.
1
CN6
