AMD A75ITX series motherboard

Motherboard Layout

17
1
SW1
16
15
14
AUDIO

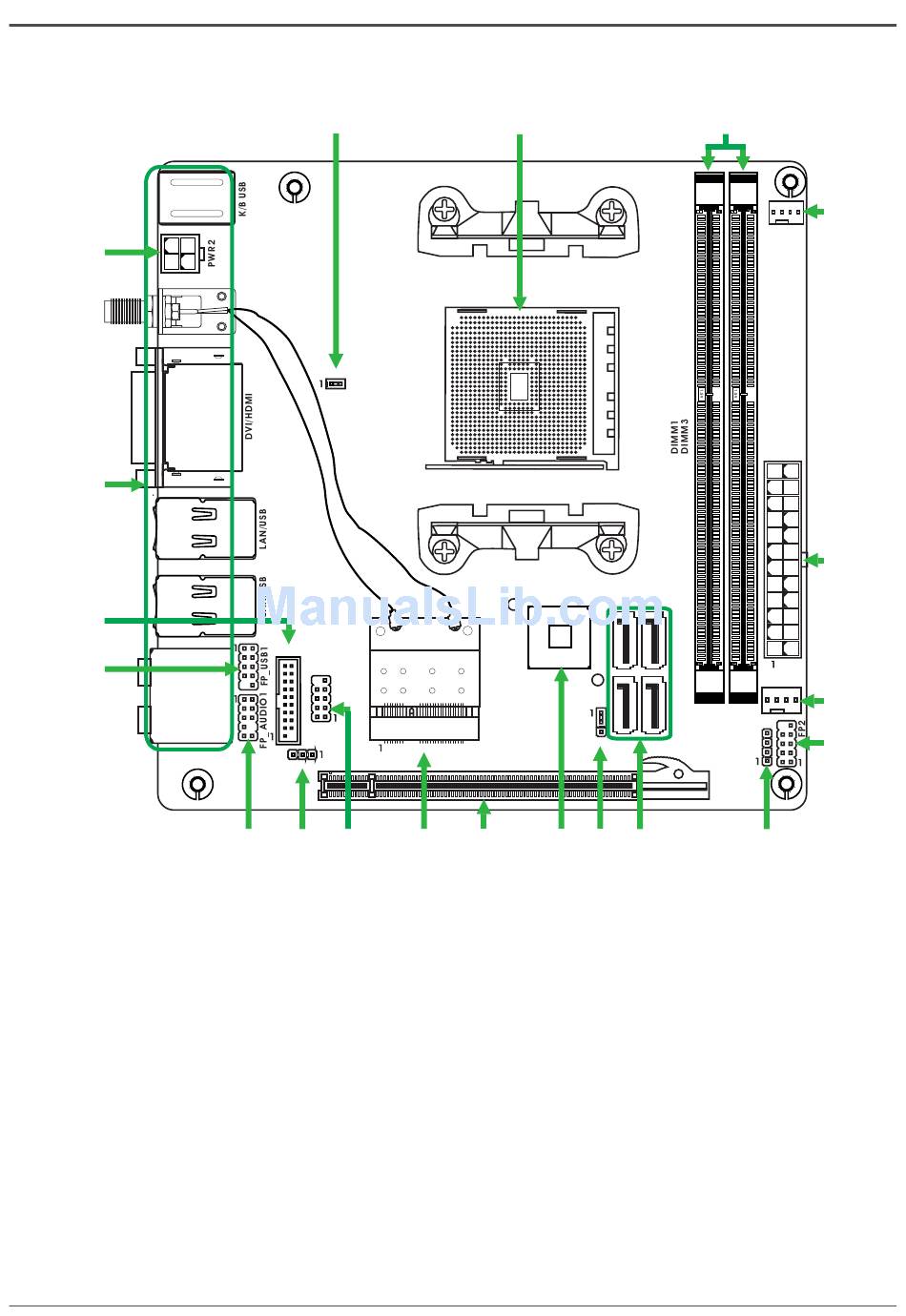

Figure 1. Board Layout
1. CPU Fan Connector
2. 24-pin ATX Power Connector
3. SYS Fan Connector
4. Front Pannel Header
5. Speaker Header
6. SATA Connectors
7. Clear CMOS Jumper
8. Northbridge
9. PCI Express x16 Slot
10. Mini PCIe Slot
11. COM Header
6
18
JP2
FP_USB3_1
CN6
2
MINI_PCIE1
CN5 PCIEX16
13 12 11
19
Northbridge
52
51
10
9 8
12. SPDIF-out Header
13. Front Pannel Audio Header
14. USB 2.0 Header
15. USB 3.0 Header
16. Backpanel Connectors
17. 4-pin ATX_12V Power Connector
18. VGA/DVI Selection Jumper
19. CPU Socket
20. DDRIII DIMM Sockets
20
121 121
SATA3 SATA4
SATA1 SATA2
120 240 120 240
FP1
JP1
7 6 5
1
CPUFAN
PWR1
2
SYSFAN
3
4
