Installing Memory Modules

This motherboard accommodates two memory modules. It can support two 240-pin
DDR3 1866/1600/1333/1066. The total memory capacity is 8 GB. You must install at
least one module in any of the two slots. Refer to the following recommendations to
install the memory modules.
Note that a memory module has a notch, so it can only fit in one direction. Refer to the following
procedure to install memory modules into the slots on the motherboard.

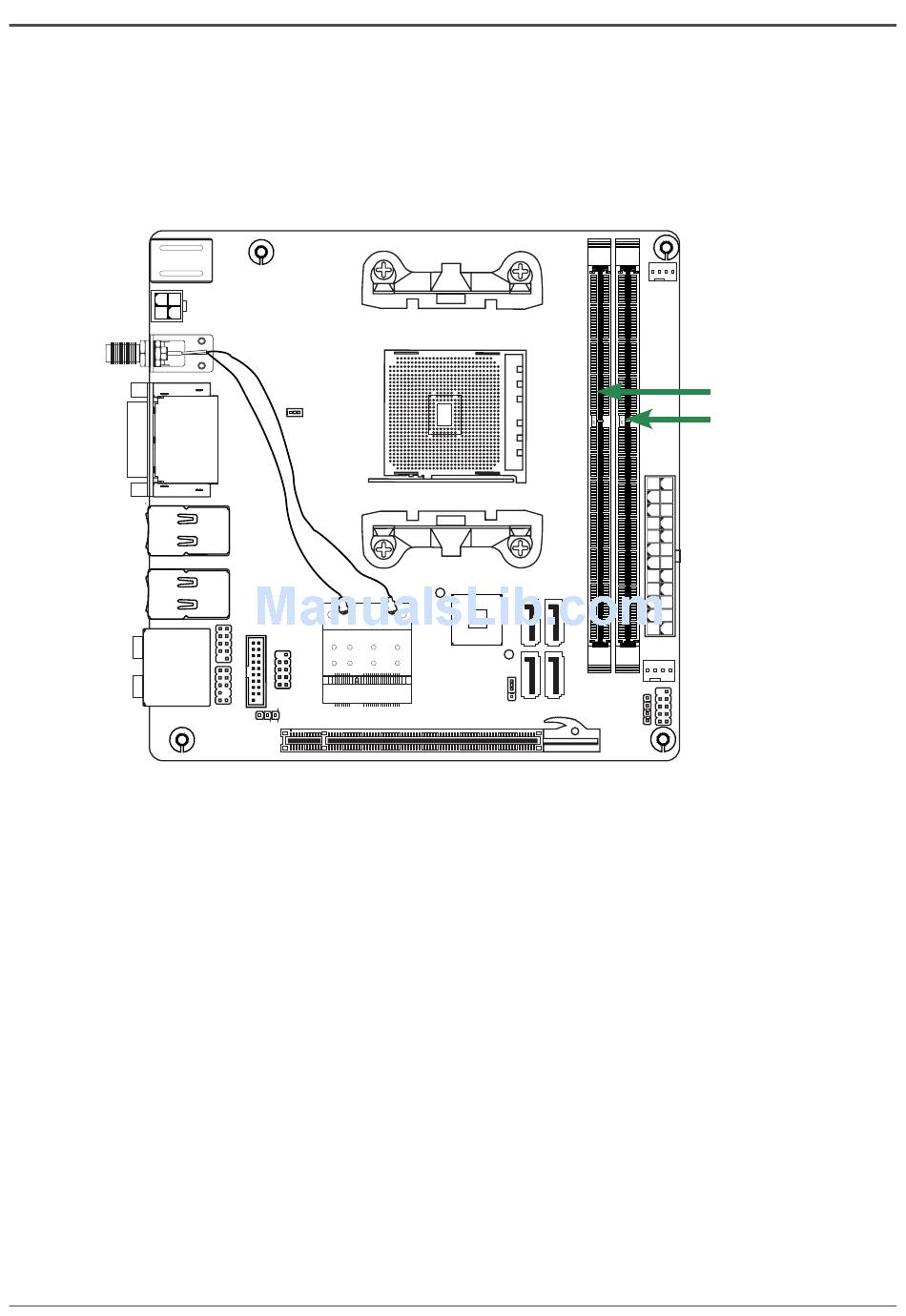

1. Unlock a DIMM slot by pressing the module clips outward.
2. Align the memory module to the DIMM slot, and insert the module vertically into the DIMM
slot. The plastic clips at both sides of the DIMM slot automatically lock the DIMM into the
connector.
Hardware Installation
121 121
DIMM1
DIMM3
120 240 120 240
11
