Installing the CPU Fan

There are many different fan types that can be used with this motherboard. Follow the instruction
that came with your fan assembly. Make sure that the fan orientation is correct for your chassis
type and fan assembly.

Installing Memory Modules

Your new motherboard has two 1.2V 240-pin slots for DDR4 memory. These slots support 4GB
/ 8GB / 16GB DDR4 devices. There must be at least one memory bank populated to ensure
normal operation. Refer to the following recommendations to install memory modules.
Note that a memory module has a notch so it can only fit in one direction. Refer to the following
procedure to install memory modules into the slots on the motherboard.
1. Unlock a DIMM slot by pressing the module clips outward.
2. Align the memory module to the DIMM slot, and insert the module vertically into the DIMM
slot. The plastic clips at both sides of the DIMM slot automatically lock the DIMM into the
connector.
10
1 2 0 2 4 0 1 2 0 2 4 0
115XLM
REMOVE
1 2 1 1 2 1
+

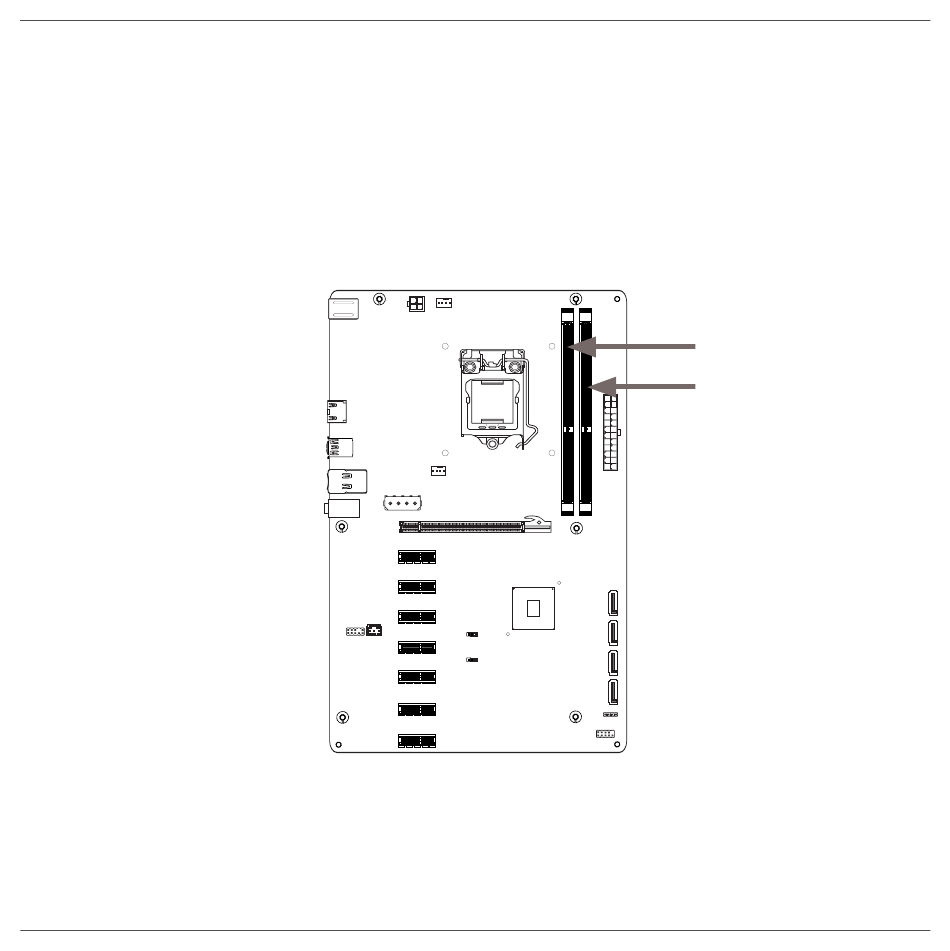

DDR4_1
DDR4_2
