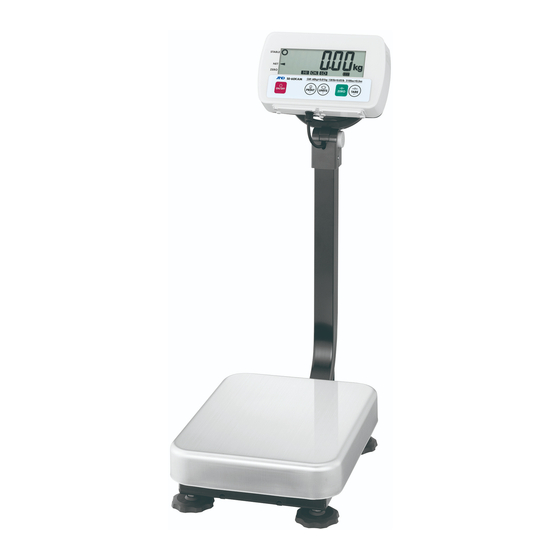

- Page 1 SC-30KAM / SC-60KAM / SC-150KAM / SC-60KAL / SC-150KAL SE-30KAM / SE-60KAM / SE-150KAM / SE-60KAL / SE-150KAL 1WMPD4002054...
- Page 2 © 2010 A&D Company, Limited. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, or translated into any language in any form by any means without the written permission of A&D Company, Limited. The contents of this manual and the specifications of the instrument covered by this manual are subject to change for improvement without notice.
-
Page 3: Table Of Contents
CONTENTS 1. INTRODUCTION ....................2 2. FEATURES......................2 3. UNPACKING ......................3 4. DESCRIPTION OF EACH PART................4 4-1. Display and symbols ................. 6 4-2. Switches....................7 5. SETTING UP ......................8 5-1. Attaching the display pole to the base ............. 8 5-2. -
Page 4: Introduction
1. INTRODUCTION This manual describes how the SC/SE Series Wash Down Scales work and how to get the most out of them in terms of performance. Please read this manual completely before using the scale. 2. FEATURES The SC/SE Series Wash Down Scales have the following features: Dust-tight and water-tight construction, complying with IP68. -
Page 5: Unpacking
When unpacking, check whether all of the following items are included: Instruction manual ● SC-30KAM / SC-60KAM / SC-150KAM / SC-60KAL / SC-150KAL SE-30KAM / SE-60KAM / SE-150KAM / SE-60KAL / SE-150KAL SC-KAL / KAM series SE-KAL / KAM series ●... -
Page 6: Description Of Each Part
4. DESCRIPTION OF EACH PART ●SC-KAL / KAM series Display Display pole Option slot Spirit level Display rear side Battery cover Weighing pan Leveling foot Display knob... - Page 7 ●SＥ-KAL / KAM series Display Option slot Display pole Display rear side Battery cover Weighing pan Spirit level Display knob Leveling foot...
-
Page 8: Display And Symbols
4-1. Display and symbols Display STABLE indicator NET indicator Weighing units ZERO indicator ON/OFF switch Battery indicator ON/OFF HI,OK,LO indicators PRINT switch TARE switch UNITS switch ZERO switch Symbols Symbol Description STABLE Turns on when the weight value is stable. ○... -
Page 9: Switches
4-2. Switches Switch Description ON/OFF switch Turns the power ON or OFF. ON/OFF When turned ON, the scale will be automatically set to zero (power-on zero). PRINT switch Outputs the weight value to the printer. In the setting mode, this switch is used to increase the value of the selected blinking digit by one. -
Page 10: Setting Up
5. SETTING UP 5-1. Attaching the display pole to the base Lower part of SC-KAL / KAM series the display pole 1. Remove the weighing pan from the base. 2. Remove the 4 screws from the lower part of the display pole. Pull out the cable 3. - Page 11 SE-KAL / KAM series Lower part of the display pole 1. Remove the weighing pan from the base. 2. Remove the 4 screws from the lower part of the display pole. Pull out the cable Base 3. Insert the display pole under the base Insert while pulling out the cable into the base and align the cable opening positions of...
-
Page 12: Installing The Scale
5-2. Installing the scale 1. Select the place for installing the scale. Refer to “Precautions on installing the scale” below. 2. Adjust the level of the base, using the spirit level and leveling feet. Confirm that the bubble is in the center of the level. -
Page 13: Installing The Batteries
5-3. Installing the batteries Prepare six, size D (R20P or LR20) batteries. The batteries are not included with the product. The scale can be used continuously for about 3,600 hours using alkaline batteries. When appears, replace all six batteries with new ones as soon as possible. Battery cover 1. -
Page 14: Basic Operation
6. BASIC OPERATION 6-1. Turning the power ON and OFF 1. Press the ON/OFF switch to turn the power ON. All the display symbols appear and the scale waits for the weight value to become stable. After the weight value internally becomes stable, the display turns off for a moment and zero is shown with the ZERO indicator (power-on zero). -
Page 15: Basic Weighing Operation
6-3. Basic weighing operation 1. Press the ON/OFF switch to turn the power ON. 2. Select a weighing unit using the UNITS switch. Container 3. When the display doesn’t show zero, press the ZERO switch to set the display to zero. Weighing pan 4. -
Page 16: Counting Mode
7. COUNTING MODE Determines a unit weight (the weight of one piece) from the known pieces of samples, and calculates how many pieces are on the weighing pan using the unit weight. The unit weight is maintained even if the power is turned OFF. Press 1. -
Page 17: Comparator
8. COMPARATOR Compares the weight value with the upper and lower limit values and shows the results of the comparison by on the display. The formula to compare is as follows: < Lower limit value ≤ ≤ Upper limit value < Select comparison conditions that suit your own application. - Page 18 Entering the upper and lower limit values 1. Press the UNITS switch to select a Press weighing unit, ”kg”, ”lb” or ”oz” 2. Press and hold the UNITS switch to enter the upper limit setting mode. Press and hold 3. Enter the upper limit value using the following switches.
-
Page 19: Calibration
9. CALIBRATION Adjusts the scale for accurate weighing. Calibrate the scale in the following cases. When the scale is first installed. When the scale has been moved. When the ambient environment has changed. For regular calibration. 9-1. Gravity acceleration correction When the scale is first used or has been moved to another location, it should be calibrated using a calibration weight. -
Page 20: Calibration Using A Weight
9-2. Calibration using a weight Prepare a weight, preferably a weight with the same value as the weighing capacity of the scale to be calibrated. Note that the calibration weight value can be set by 10 kg/lb. 1. Turn the power ON and warm up the scale for at least half an hour. Change the function setting “poff”... -
Page 21: Restoring To The Factory Setting Values
9-3. Restoring to the factory setting values If the gravity acceleration value or calibration weight value is changed unintentionally, restore those values to the factory setting values, as follows. Make sure that the scale is in the weighing mode (displaying “kg”, “lb”, “oz” or “pcs”). Press and hold 1. -
Page 22: Functions
10. FUNCTIONS The scale has function settings to specify the scale performance. The parameters set in the function settings are maintained even if the power is turned OFF. Parameter Item 10-1. Setting the parameters While holding down, press 1. Turn the power OFF. 2. -
Page 23: Function List
10-2. Function list Item Parameter Description Auto power-off Turns the power OFF Auto power-off disabled function automatically Auto power-off enabled poff Weight display Changes “d”, Normal (1/3,000) resolution minimum display High (1/6,000 or 1/7,500) r5eo Serial interface 2400 bps Baud rate 4800 bps 9600 bps Stream mode... -
Page 24: Options
11. OPTIONS The following options are available for the SC/SE series: OP-02 (SCE-02) USB interface OP-03 (SCE-03) RS-232C serial interface and Comparator relay output Note When an option is installed, the dust-tight and water-tight performance of the scale will be degraded. For details, refer to the instruction manual for the options. -
Page 25: Specifications
13. SPECIFICATIONS 13-1. Specifications Materials Weighing platform Weighing pan SC series: Stainless steel (SUS304) Stainless steel (SUS304) SE series: Steel Stainless steel (SUS430) SC-30KAM SC-60KAM SC-150KAM SC-60KAL SC-150KAL MODEL SE-30KAM SE-60KAM SE-150KAM SE-60KAL SE-150KAL Weighing capacity (kg) Minimum display “d”... -
Page 26: External Dimensions
13-2. External dimensions ●SC-30KAM / SC-60KAM / SC-150KAM 38.1 ●SC-60KAL / SC-150KAL 38.1 Unit: mm... - Page 27 ●SE-30KAM / SE-60KAM / SE-150KAM ●SE-60KAL / SE-150KAL Unit: mm...
-
Page 28: Gravity Acceleration Map
GRAVITY ACCELERATION MAP Values of gravity at various locations Amsterdam 9.813 m/s Manila 9.784 m/s Athens 9.807 m/s Melbourne 9.800 m/s Auckland NZ 9.799 m/s Mexico City 9.779 m/s Bangkok 9.783 m/s Milan 9.806 m/s Birmingham 9.813 m/s New York 9.802 m/s Brussels 9.811 m/s... - Page 29 World map...
