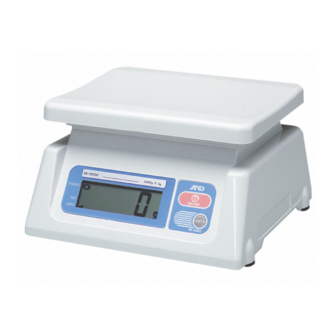

A&D SK-5000 Instruction Manual

A&D SK-5000 Instruction Manual

Hide thumbs Also See for SK-5000:

Advertisement

1WMPD4002371
- 0 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SK-5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for A&D SK-5000

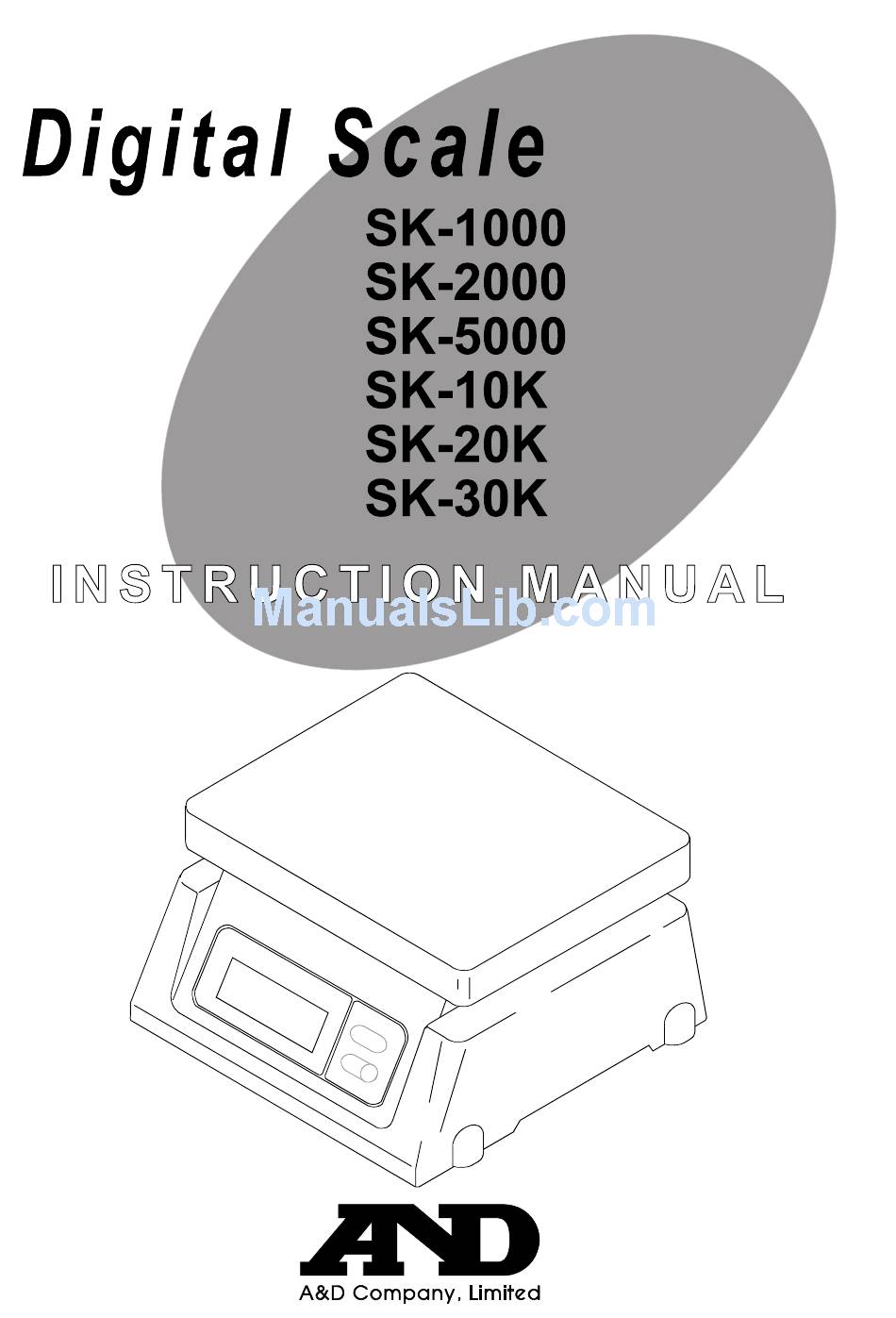

  • Page 1 1WMPD4002371 - 0 -...
  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS All safety messages are identified by the following the words "WARNING" and "CAUTION". These words mean the following. Important information to alert you to a situation that might cause serious injury and damage to WARNING your property if instructions are not followed. Important information that tells how to prevent CAUTION damage to equipment.
  • Page 3: Parts Description

    PARTS DESCRIPTION - 2 -...
  • Page 4 PREPARATION 1. Installing batteries / Connecting the AC adapters Batteries CAUTION When replacing batteries, be careful not to apply too much force to the weighing pan. An excessive force could damage the scale. Remove the battery compartment cover and insert six batteries (R20P/LR20/D size) into the battery compartment,...
  • Page 5: Before Weighing

    WEIGHING Before weighing Automatic Power-Off Function. If the scale is left ON and the stable indicator is displayed, the automatic power-off function turns power after approximately five minutes (factory setting). To disable or enable the function, press the [ON/OFF] key while pressing the [RE-ZERO] key.
  • Page 6: When To Calibrate

    Location of the [UNITS] Calibration Using a Calibration Weight Calibrate the scale with the following calibration weight. SK-1000: 1000g ± 0.1g SK-2000: 2000g ± 0.2g SK-5000: 5000g ± 0.5g SK-10K: 10kg ± 1g SK-20K: 20kg ± 2g SK-30K: 30kg ±...
  • Page 7 Calibration by gravity compensation If you have calibration weights at the capacity of the scale, you can calibrate the scale with the weights instead of compensating for the gravity acceleration. The scale is calibrated at 9.798 m/sec at the factory. If the gravity acceleration at your location is not the same, calibrate the scale by compensating for the gravity acceleration.
  • Page 8: Specifications

    SPECIFICATIONS Model SK-1000 SK-2000 SK-5000 SK-10K SK-20K SK-30K 1000 g 2000 g 5000 g 10 kg 20 kg 30 kg Capacity 2.2 lb 4.4 lb 11 lb 22 lb 44 lb 66 lb 0.5 g 0.005 kg 0.01 kg 0.02 kg Resolution 0.001 lb...
  • Page 9: World Map

    WORLD MAP - 8 -...
  • Page 10 3-23-14 Higashi-Ikebukuro, Toshima-ku, Tokyo 170-0013 JAPAN Telephone: [81] (3) 5391-6132 Fax: [81] (3) 5391-6148 A&D ENGINEERING, INC. 1756 Automation Parkway, San Jose, California 95131 U.S.A. Telephone: [1] (408) 263-5333 Fax: [1] (408)263-0119 A&D INSTRUMENTS LIMITED <UK Office> Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485 A&D INSTRUMENTS LIMITED <German Sales Office>...
