Innovaphone IP110 Manual

innovaphone IP110
Version: 001-2012
EN
EN

Display components (see numbering on illustrations)

Icons

1 Name of active registration
2
Own extension number
3 Contact field
Speaker on
4 Display icons 1
5 Date and time
6 Display icons 2
7
Current connection time
Microphone on

Key functions

(hands-free)
Key
Call diversion
activated
Menu key
Phone locked, can
Disconnect
only be unlocked with
PIN
R key
Handset active
(handset off-hook)
Redial
Headset on
Arrow key
left / down
Encrypted telephone
connection
Arrow key
up / right
Registration
successful
Speaker
Registration failed
Microphone
1
4 5

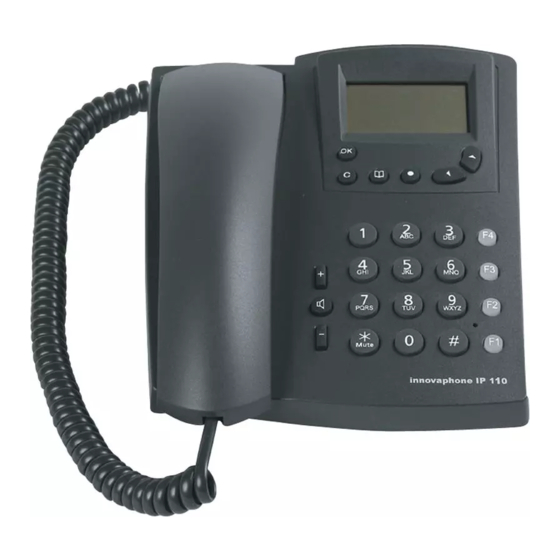

Short user guide innovaphone IP110
In idle state During call
Opens the menu and Sets up conference with
leaves the menu confir- two active calls
ming changes made
Leaves menu without Terminates call
confirming changes
made, in editor mode:
backspace
Displays in-bound call Sets up a consultation
list, in editor mode: cur- call, switches between
sor to the left two calls
Displays out-bound call Forwards the incoming
list, confirms selection in call or active call
menu; in editor mode:
cursor to the right
Moves down the menu
Moves up the menu
Prepares call, picking Listen-in, switch to
up a call in hands-free hands-free mode
mode
Silences telephone, Mute / mute key swit-
switches ringing tone off ches microphone off
2 1
DE Im Ruhezustand
EN In idle state
FR En veille
IT In riposo
NL In standby-stand
ES Modo inactivo
PT No descanso
DK I hviletilstand
I vänteläge
SE
FI Joutotilassa
NO I hviletilstand
PL W stanie spoczynku
CZ V klidovém stavu
6 4
RU в режиме покоя

Actions for incoming calls

Accept call: Pick up handset, press to pick up call in hands-free
mode.
Reject call: Press .
Call diversion: Press before accepting the call, enter telephone
number for the call diversion and confirm by pressing

Actions in idle state

Dialling: Enter telephone number; to dial by name, long press to
change to characters and enter name, use arrow keys to select de-
sired name if necessary, pick up handset to initiate call.
Call completion on missed call: Press , if necessary press arrow
keys to select desired call, pick up handset to initiate call.
Re-dial: Press , select entry with arrow keys if necessary and
pick up handset to initiate call.
Send message: Enter telephone number or name, press
send message and enter the desired text, send by pressing
Set call diversion: Press , select user setup, select call diversion
by entering the target number under the required condition. Press
twice to save the setting.
Set presence: Press , select user setup and presence. Set requi-
red activity and add note as necessary.

Actions during call

Change to hands-free: Keep pressed and hang up.
Terminate hands-free: Pick up handset or terminate call by pressing
.
Consultation: Press , select number or name for consultation call.
Terminate consultation with and return to initial call.
Switch between calls: Press and set up second call. Double press
to switch between calls. Press to terminate calls.
Transfer: Press and set up second call. Hang up to connect the two
calls to each other.
DE
EN
3
FR
IT
NL
ES
PT
DK
SE
FI
NO
PL
CZ
5 7
RU
Conference: Set up two calls using the
with . Press again to separate calls or hang up to terminate.
Quick transfer: Press and dial target number required. If you hang
up before the call is initiated, the caller will hear the ring- tone until
the person being called picks up the call.
Blind transfer: Press and set up second call. Press
again. more to connect calls together without the callers being put in the
wait queue.

Actions when initiating a call

Call completion on busy subscriber: Initiate call, press
hear busy tone or call waiting signal, then select recall. The tele-
phone will indicate when the subscriber is available again.
Call completion on no reply: Initiate call, press
ring tone, and select recall. The telephone will indicate when the
subscriber is active again.
, select
. For further information www.innovaphone.com
Errors and omissions excepted. Technical specifications and delivery
times may be subject to change.
Copyright © 2012 innovaphone® AG
Während des Gesprächs
During call
Pendant la communication
In conversazione
Tijdens gesprek
Durante la llamada
Durante uma chamada
Under opkaldet
Under pågående samtal
Puhelun aikana
Under samtalen
W trakcie rozmowy
Během hovoru
во время вызова
key and switch to conference
once
when you
while hearing the
