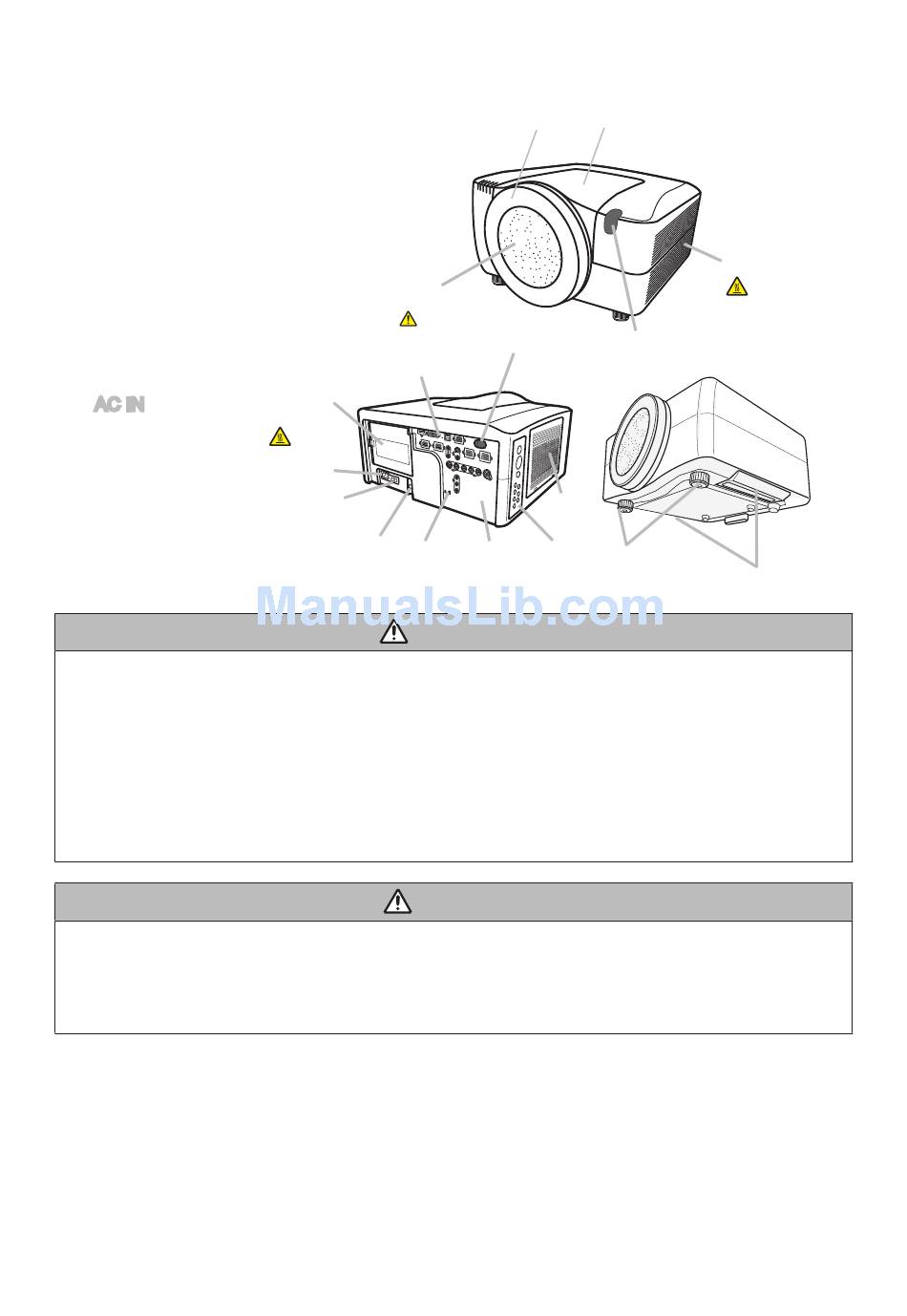

3. Names of each part

Projector
(1) Dust protector
(2) Remote sensors (x 2)
(3) Exhaust vents
(4) Filter cover
The filter unit and intake vent are
inside.
(5) Control panel
(6) Rear panel
(7) Shutdown switch
(8) Lamp cover
The lamp unit is inside.
(9) AC IN (AC inlet)
(10) Power switch
(11) Security bar
(12) Security slot
(13) Dented part (x 2)
(14) Elevator feet (x 2)
►HOT! : Do not touch around the lamp cover or the exhaust
vents during use or just after use, since it is hot.
►Do not look into the lens or vents while the lamp is on, since the strong light is
not good for your eyes.
►Do not grab the front cover or front ring to hold the projector, since you can
drop the projector.
►Do not handle the elevator feet without holding the projector, since the
projector may drop down.
►Maintain normal ventilation to prevent the projector from
heating up. Do not cover, block or plug up the vents. Do not place anything that
can stick or be sucked to the vents, around the intake vents. Clean the air filter
periodically.
NOTICE
►Do not touch the lens surface directly.
► Keep the dust protector of the projector, and use it when no lens unit is
attached to the projector.
IN5542 ( P6X ) / IN5544 ( P6WX )
(1)
See the NOTICE
(7)
(8)
HOT!
(9)
(10)
(11)
(12)
WARNING
CAUTION
3
Front ring
Front cover
(2) (2)
(4)
(5)
(6)
(14)
(3)
HOT!
(13)
