RS-232 Port Mating Connector Pinout

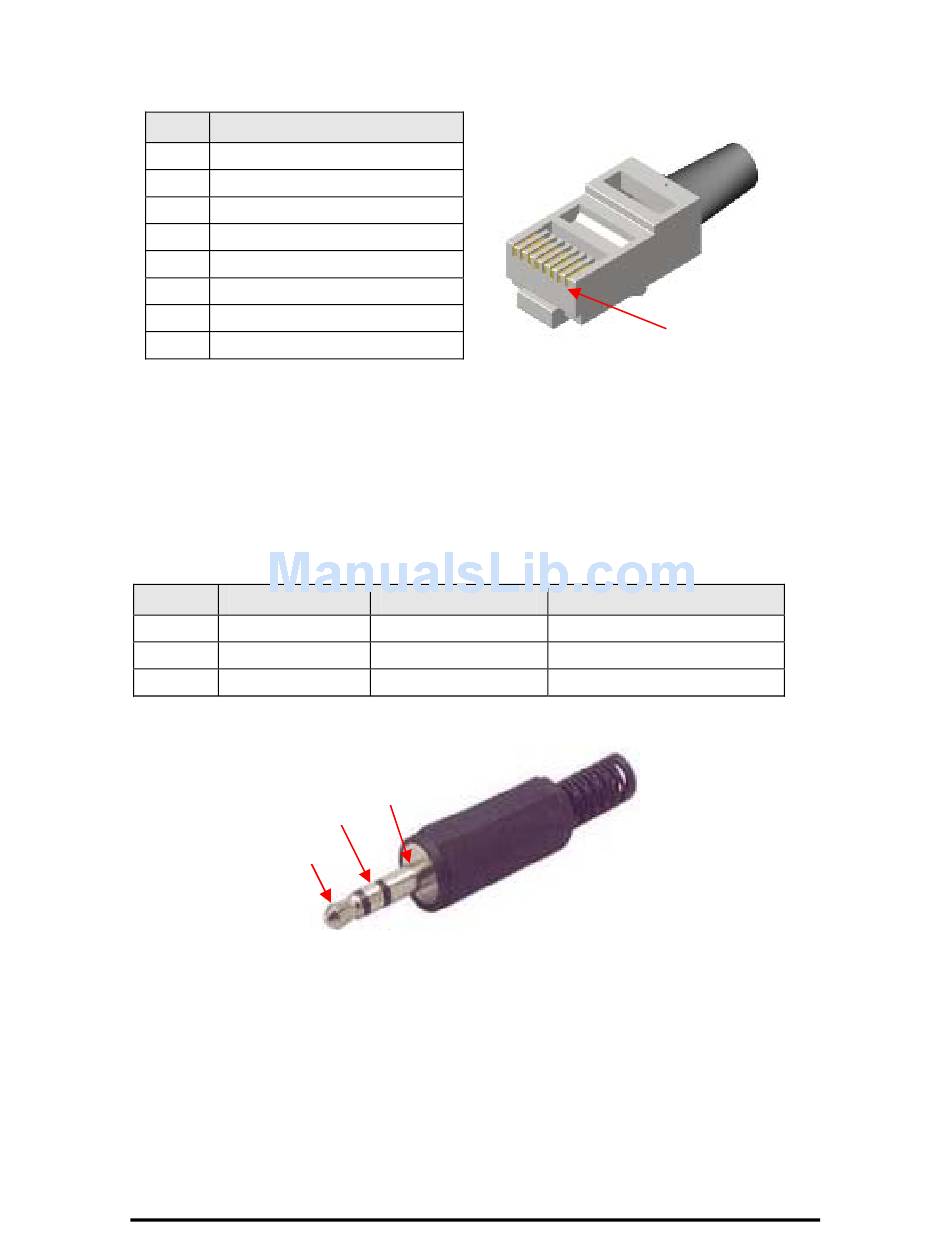

The following table lists the pin configuration for the RS-232 port mating connector.
Pin Signal
1 None
2 None
3 None
4 Signal Ground
5 Receive Data (in to unit)
6 Transmit Data (out of unit)
7 None
8 None
This port provides an end-to-end RS-232 line that can support up to 250K Baud and
is transparent to all RS-232 protocols.

RS-232 Serial Console Port

The following table lists the pin configuration for the RS-232 3-pin Mini Jack mating
connector for the console serial port.
Pin DB9-F Pin#
Tip 2
Ring 3
Sleeve 5
Tip
Signal Name
Transmit
Receive
Return
Sleeve
Ring
9
Pin 1
Direction
Out of Unit
In to Unit
Return
