Do you have a question about the P-100 and is the answer not in the manual?
Questions and answers
Merie
March 23, 2025
Sensor not engaging on one side
1 comments:
Mr. Anderson
March 23, 2025
To fix the sensor not engaging on one side of the ProSpot Fitness P-100, follow these steps:
1. Check the Sensor Weight Bar (25) – Ensure it is properly aligned and that the rotation-limiting pin is correctly inserted into the knuckles (U2 & 44).
2. Inspect the Plastic Locking Sleeves (39) – Make sure they are tightened securely to keep the Weight Bar Cable Knuckle in place.
3. Verify the Olympic Adapters (30) – Ensure they are properly inserted and secured with the Olympic Adapter Retaining Plug (33), Allen bolts (29), and washers (36).
4. Examine the Weight Bar Cables – Check that the left and right cables (47 & 24) are properly attached and not loose or damaged.
5. Inspect the Sensor Retaining Collars (45 & 48) – Ensure they are in place and not obstructing the sensor’s function.
6. Tighten Necessary Bolts – Verify that all bolts, such as the Hex Head Bolts (22, 28), are securely fastened.
7. Look for Obstructions – Ensure nothing is blocking the sensor mechanism on the affected side.
If the issue persists, consider recalibrating the sensor or contacting support for further troubleshooting.
This answer is automatically generated
matt camuso
April 6, 2025
the machine is locked and does not unlock when I contact the sensor
Page 1

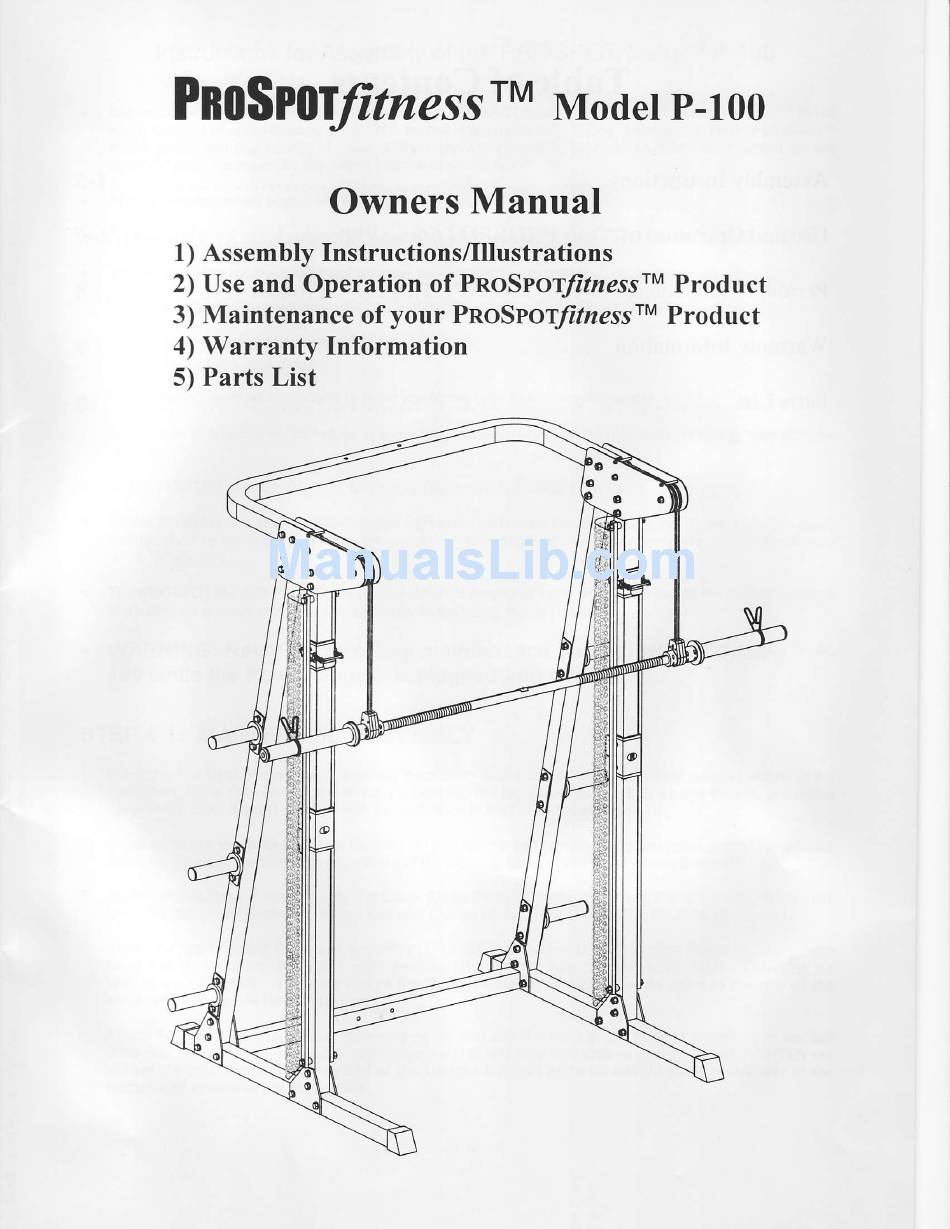

Pno$p olfitness rM Moder P-roo Owners Manual 1) Assembly Instructions/Illustrations 2) Use and Operation of PnoSnory'lzessrM Product 3) Maintenance of your PnoSrofirzessrM Product 4) Warranty Information 5) Parts List...
Page 2
Table of Contents Assembly Instructions....1-5 Use and Operation of Your PROSPOffrnessrM Product......6-7 of yourPROSPOTttnessrM Periodic Maintenance Product.....8 Warranty Information..9 Partslist....10...
Page 3
6'x 6'. The barbell is approximately 7' long. Locate your PROSPOTltrressrM P-100 away from any source of water. Do not allow any liquid lo be near the machine or spilled on any electrical part. Do not insert any object into the electrical box.
Page 4
STEP #2: SENSOR WEIGHT BAR INSTALLATION Standing in front of the PROSPOTlaessrM P-100. Insert one end and then the other end of the Sensor Weight Bar (25) into the Knuckles (42 & 44). Slide the knuckles onto the Bar untrl they rest snugly against the preinstalled sensor retaining collars (45 &...
Page 5
Upright Guidepost Assembly Diagram L e a t L o c k i h g S l i d e . Right Locking Stide. --3--...
Page 7
Model P-1 00 PROSPOTJitnessrM Bolts & Bushings Size Chart QTY;2 QTY:4 QTY:26 QTY:76 QTY:4 QTY:4 lil=l r!t8 l._ QTY:2 8/76 mm QTY:4 QTY:8 QTY:46 QTY:92 QTY:4 QTY:8 7O/2O mm 72/24 mm 5/7O mm...
Page 8
rM Product !!Read!! This Page Before Using Your ProSpotJitne^s^s Safe Use of Your ProSpotJitnessrM Product CAUTTON: This machine involves the risk of possible injury by its user. THE FOLLOWING RULES SHOULD BE CARFULLY FOLLOWED: Consult a physician or other healthcare provider before beginning an exercise program. Ifyou are in bad health or are handicapped, ask for the opinion ofyour physician and exercise only under qualified supervision.
Page 9
Do not allow any liquid to be near the machine or spilled on any electrical part. Do not insert any foreign object into the electrical box or attempt to open it. If you have any questions or need help refer to our web site at: www.prospotfitness.com.
Page 10
9. Make certain the barbell is level before loading weight plates. Level the barbell by raising up one end of the barbell until it is level. (The P-100 is equipped with a ratcheting feature that allows the barbell to be manually raised from side+o-side.) Or, level the barbell by grasping it with both hands, making sure the fingertips make contact with the touch sensor strip.
Page 11
Maintenance of ProSpoty'fzessrM Product Intro: Our products are made ofdurable materials and have been factory tested to assure proper function and reliability. Along with our Equipment Warranty, this gives the owner of our product the confidence of a long lasting relationship with ProSpot/nessrM Inc. Our systems are designed in a way to allow easy replacement ofparts both mechanical and electtical if the need should ever arise.
Page 12
Warrantv Information Each PnoSeof/nessrM Product comes with a limited parts replacement warranty. Please refer to the actual warranty card included with your system for specific coverage. If you have any questions about performance under this limited warranty, please write us at: PnoSnoffrzess, Inc.
Page 13
Model P-100 Parts List PROSPOTfitness Assy { De9grlpliogr Assy # Description Right Base Rail Rr.!!q I Bgmper Ring 50/80 mm left Basq Rai! . . _ Olylllllglldapter Retaiting Plug , 2_ Lower Cross Brace 34 . i lex Heqd Bolt M5 x 75 mm...
Page 14
(the black box with the Prospot Fitness @ logo on it). To move Spot Blocks, place your index and middle fingers underneath the finger grip and your thumb on the push- release lever.
