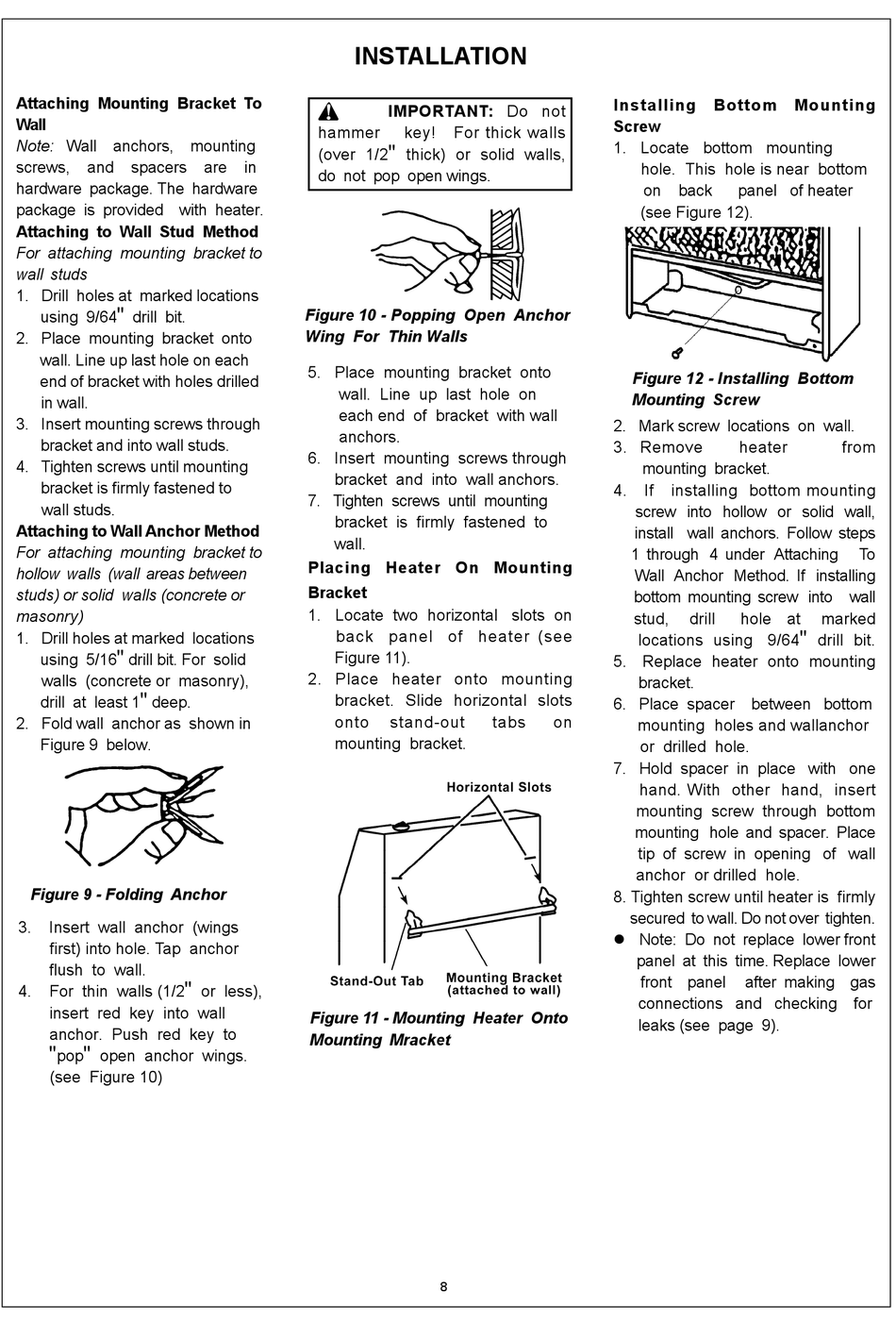

Procom MN060HBA Owner's Operation And Installation Manual page 8

Attaching Mounting Bracket To
Wall
Note: Wall anchors, mounting
screws, and spacers
hardware package. The hardware
package is provided with heater.
Attaching to Wall Stud Method
For attaching mounting bracket to
wall studs
1. Drill holes at marked locations
"
using 9/64 drill bit.
2. Place mounting bracket onto
wall. Line up last hole on each
end of bracket with holes drilled
in wall.
3. Insert mounting screws through
bracket and into wall studs.
4. Tighten screws until mounting
bracket is firmly fastened to
wall studs.
Attaching to Wall Anchor Method
For attaching mounting bracket to
hollow walls (wall areas between
studs) or solid walls (concrete or
masonry)
1. Drill holes at marked locations
"
using 5/16 drill bit. For solid
walls (concrete or masonry),
"
drill at least 1 deep.
2. Fold wall anchor as shown in
Figure 9 below.
Figure 9 - Folding Anchor
3. Insert wall anchor (wings
first) into hole. Tap anchor
flush to wall.
4. For thin walls (1/2
insert red key into wall
anchor. Push red key to
" "
pop open anchor wings.
(see Figure 10)
hammer
(over 1/2
are in
do not pop open wings.
Figure 10 - Popping Open Anchor
Wing For Thin Walls
5. Place mounting bracket onto
wall. Line up last hole on
each end of bracket with wall
anchors.
6. Insert mounting screws through
bracket and into wall anchors.
7. Tighten screws until mounting
bracket is firmly fastened to
wall.
Placing Heater On Mounting
Bracket
1. Locate two horizontal slots on
back panel of heater (see
Figure 11).
2. Place heater onto mounting
bracket. Slide horizontal slots
onto
mounting bracket.
"
or less),
Figure 11 - Mounting Heater Onto
Mounting Mracket
INSTALLATION
IMPORTANT: Do not
key! For thick walls
"
thick) or solid walls,
stand-out tabs
8
Installing Bottom
Screw
1. Locate bottom mounting
hole. This hole is near bottom
on back
(see Figure 12).
Figure 12 - Installing Bottom
Mounting Screw
2. Mark screw locations on wall.
3. Remove
mounting bracket.
4. If installing bottom mounting
screw into hollow or solid wall,
install wall anchors. Follow steps
1 through 4 under Attaching
Wall Anchor Method. If installing
bottom mounting screw into wall
stud, drill
locations using 9/64
5. Replace heater onto mounting
bracket.
6. Place spacer between bottom
on
mounting holes and wallanchor
or drilled hole.
7. Hold spacer in place with one
hand. With other hand, insert
mounting screw through bottom
mounting hole and spacer. Place
tip of screw in opening of wall
anchor or drilled hole.
8. Tighten screw until heater is firmly
secured to wall. Do not over tighten.
l Note: Do not replace lower front
panel at this time. Replace lower
front panel
connections and checking for
leaks (see page 9).
Mounting
panel of heater
heater from
To
hole at marked
"
drill bit.
after making gas
