3. Add the Btu/Hr of all fuel burning appliances in the space.
Vent-free heater
Gas water heater*
Gas furnace
Vented gas heater
Gas Fireplace logs
Other gas appliances* +
Total
*Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and
vents to the outdoors.
4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.
Btu/Hr (maximum the space can support)
Btu/Hr (actual amount of Btu/Hr used)
Example : 51,200 Btu/Hr(maximum the space can support)
54,000 Btu/Hr(actual amount of Btu/Hr used)
The space in the above example is a confined space because the actual Btu/Hr used is more than the
maximum Btu/Hr the space can support.
You must provide additional fresh are. Your options are as follows:
A. Rework worksheet, adding the space of an adjoining room. If the extra space provides an unconfined
space, remove door to adjoining room or add ventilation grills between rooms. See Ventilation Air From
inside Building, page 5.
B. Vent room directly to the outdoors. See Ventilation Air From Outdoors, page 6 .
C. Install a lower Btu/Hr heater, if lower Btu/Hr size makes room unconfined.
If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space is an
unconfined space. You will need no additional fresh air ventilation.
AIR FOR COMBUSTION AND
VENTILATION
Continued
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining
unconfined space. When ventilating to an
adjoining unconfined space, you must
provide two permanent openings: one within
"
12 of the ceiling and one within 12
floor on the wall connecting the two spaces
(see options 1 and 2, Figure 2). You can also
remove door into adjoining room (see option
3, Figure 2). Follow the National Fuel Gas
Code NFPA 54/ANS Z223.1. Section 5.3, Air
for Combustion and Ventilation for required
size of ventilation grills or ducts
WARNING: Rework worksheet, add-
ing the space of
unconfined space. The combined spaces
must have enough fresh air to supply all
appliances in both spaces.
=
"
of the
the adjoining
Btu/Hr
Example:
Btu/Hr
Gas water heater
Btu/Hr
Vent free heater
Btu/Hr
Total
Btu/Hr
Btu/Hr
Btu/Hr

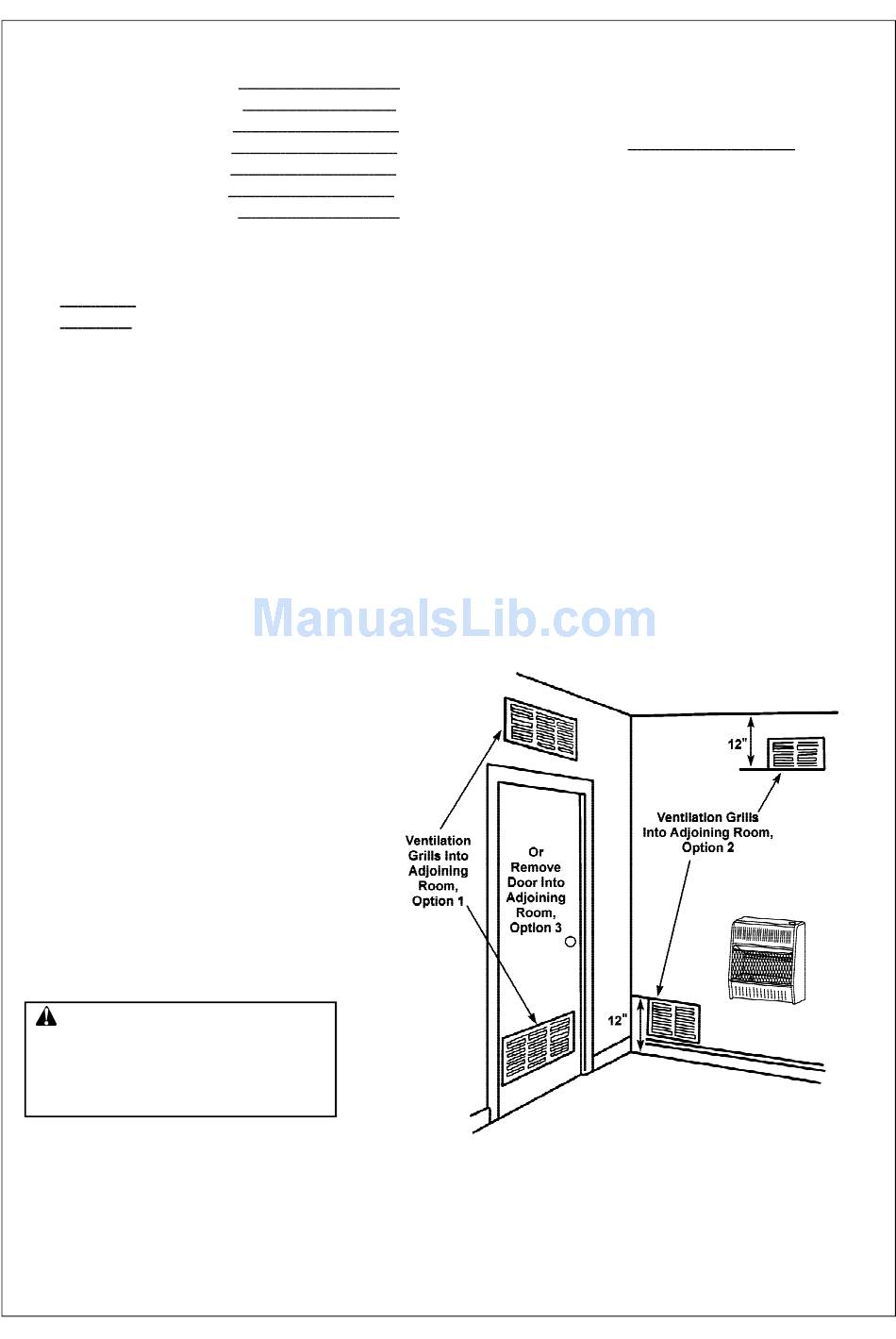

Figure 2 -Ventilation Air from Inside Building
5
44,000 Btu/Hr
+ 10,000 Btu/Hr
= 54,000 Btu/Hr
