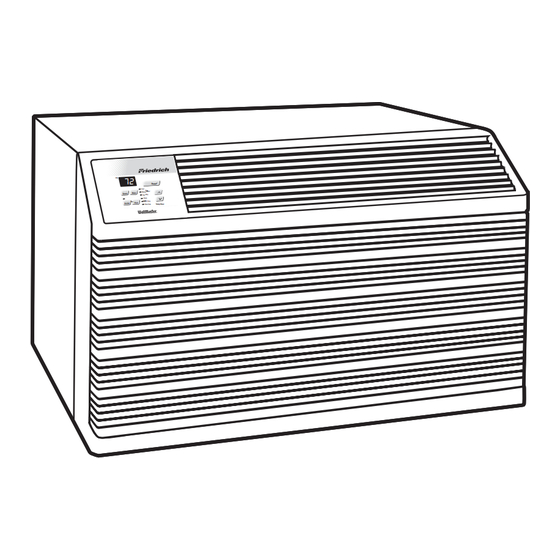

Page 1 Service & Parts Manual ® WallMaster Thru-the-Wall WS08B10A-C WS10B10A-C WS14B10A-C WS10B30A-C WS13B30B-C WS16B30A-C WE10B33A-B WE13B33B-B WE16B33A-B WY10B33A-B WY13B33A-B WM-Svc-Prts-07 (3-07)
Page 2: Table Of Contents
TABLE OF CONTENTS Warranty ..............................3 Routine Maintenance ..........................4 Unit Identiﬁ cation ............................5 Performance Data .............................6 Electrical Data ............................7 Functional Component Deﬁ nitions ......................8 Electronic Controls ...........................9 Rotary Controls ............................10 Refrigeration Sequence of Operation ....................11 Sealed Refrigeration Repairs ......................12-13 Refrigerant Charging ..........................13 General Troubleshooting ........................
Page 3: Warranty
FIRST YEAR ANY PART: If any part supplied by FRIEDRICH fails because of a defect in workmanship or material within twelve months from date of original purchase, FRIEDRICH will repair the product at no charge, provided room air conditioner is reasonably accessible for service.
Page 4: Routine Maintenance
ROUTINE MAINTENANCE NOTE: Units are to be inspected and serviced by qualiﬁ ed service personnel only. Routine maintenance is required annually or semi-annually, depending upon annual usage. Clean the unit air intake ﬁ lter at least every 250 to 300 fan hours of operation or when the unit’s indicator light is on if so equipped.
Page 5: Unit Identiﬁ Cation
FRIEDRICH ROOM MODEL NUMBER CODE 1st DIGIT - FUNCTION W = Thru-The-Wall, WallMaster Series 2nd DIGIT - TYPE S = Straight Cool E = Electric Heat Y = Heat Pump 3rd & 4th DIGITS - APPROXIMATE BTU/HR (Cooling) Heating BTU/HR capacity listed in Speciﬁ cations/Performance Data Section...
Page 6: Performance Data
PERFORMANCE DATA * Rating Conditions: 80 degrees F, room air temp. & 50% relative humidity, with 95 degree F, outside air temp & 40% relative humidity Calculate the heat loss of the space to be heated. As long as the heat loss does not exceed the resistance heating capacity rating of the unit, the heating performance will be satisfactory. Change-over from heat pump operation to resistance operation on models indicated is automatic at a preset outside ambient temperature of approximately 35°F.
Page 7: Electrical Data
ELECTRICAL DATA Wire Size Use ONLY wiring size recommended for single outlet branch circuit. Fuse/Circuit Use ONLY type and size fuse or HACR Breaker circuit breaker indicated on unit’s rating ELECTRIC SHOCK HAZARD. plate. Proper current protection to the unit is the responsibility of the owner.
Page 8: Functional Component Deﬁ Nitions
FUNCTIONAL COMPONENTS A. Mechanical components Bellows condensate valve Temperature-sensitive valve that opens up to drain off condensate water when the outside temperature falls below 40°F and closes when the outside temperature reaches 58°F. Plenum assembly Diffuser with directional louvers used to direct the conditioned airﬂ ow. Blower wheel Attaches to the indoor side of the fan motor shaft and is used for distributing unconditioned, room side air though the heat exchanger and delivering conditioned air into the room.
Page 9: Electronic Controls
SYSTEM CONTROL PANEL (“WS” Models) Activating Error Code Mode (Submode of Test Mode) Figure 6: System Control Panel Unit must be in Test Mode to enter Error Code Mode 1. Activate Error Code Mode by pressing the “TIMER ON/OFF” button on XQ & WS models. LED for the “TIMER ON/OFF”...
Page 10: Rotary Controls
Frost Probe Sensor: Disables compressor at 35 degrees SYSTEM CONTROL SWITCH - TEST F +/- 3 degrees F Disconnect leads from control switch. Turn control to posi- tion being tested (see Figure 8). There must be continuity Indoor Probe Sensor: Control range is 60 degrees F to 90 as follows: degrees F +/- 2 degrees F Indoor temperature will be displayed by pressing:...
Page 11: Refrigeration Sequence Of Operation
REFRIGERATION SYSTEM SEQUENCE OF OPERATION A good understanding of the basic operation of the refrigera- the evaporator coil. As it enters the evaporator coil, the tion system is essential for the service technician. Without larger area and lower pressure allows the refrigerant to this understanding, accurate troubleshooting of refrigeration expand and lower its temperature (heat intensity).
Page 12: Sealed Refrigeration Repairs
SEALED REFRIGERATION SYSTEM HERMETIC COMPONENT REPLACEMENT The following procedure applies when replacing com- REPAIRS ponents in the sealed refrigeration circuit or repairing EQUIPMENT REQUIRED: refrigerant leaks. (Compressor, condenser, evaporator, capillary tube, refrigerant leaks, etc.) 1. Voltmeter Recover the refrigerant from the system at the pro- 2.
Page 13: Refrigerant Charging
NOTE: All inoperative compressors returned to all contamination from system. Inspect suction and Friedrich must have all lines properly plugged with discharge line for carbon deposits. Remove and the plugs from the replacement compressor. clean if necessary.
Page 14: General Troubleshooting
TROUBLESHOOTING TOUCH TEST CHART: TO SERVICE REVERSING VALVES NORMAL FUNCTION OF VALVE NOTES: VALVE OPERATING * TEMPERATURE OF VALVE BODY CONDITION ** WARMER THAN VALVE BODY POSSIBLE CAUSES CORRECTIONS Cool Normal Cooling Cool *TVB as (2) as (1) Cool Normal Heating Cool *TVB as (1)
Page 15 COOLING ONLY ROOM AIR CONDITIONERS: TROUBLESHOOTING TIPS Problem Possible Cause Action Check voltage at compressor. 115V & 230V Low voltage units will operate at 10% voltage variance T-stat not set cold enough or Set t-stat to coldest position. Test t-stat & re- inoperative place if inoperative Compressor hums but cuts off on...
Page 16: Wiring Diagrams
Problem Possible Cause Action Replace fuse, reset breaker. If repeats, check Fuse blown or circuit tripped fuse or breaker size. Check for shorts in unit wiring & components Power cord not plugged in Plug it in Unit does not run System switch in "OFF"...
Page 17 Problem Possible Cause Action Overload inoperative. Opens too Check operation of unit. Replace overload if soon system operation is satisfactory Allow a minimum of 2 minutes to allow Compressor restarted before pressures to equalize before attempting to system pressures equalized restart.
Page 18 Problem Possible Cause Action Sublimation: Ensure that foam gaskets are installed in When unconditioned saturated, between window panes & in between the outside air mixes with conditioned unit & the sleeve. Also, ensure that fresh air, condensation forms on the air/exhaust vents (on applicable models) are in cooler surfaces the closed position &...
Page 19 HEAT / COOL ROOM AIR CONDITIONERS: TROUBLESHOOTING TIPS Problem Possible Cause Action Disconnect power to unit. Remove resistor Heat anticipator (resistor) shorted from t-stat bulb block. Plus in unit & allow to (on applicable models) operate. Feel resistor for heat. If not heat, replace resistor Room temperature uneven...
Page 20 Problem Possible Cause Action Incorrect wiring Refer to applicable wiring diagram Defective solenoid coil Check for continuity of coil Block condenser coil & switch unit to cooling. Unit cools when Allow pressure to build up in system, then heat is called for Reversing valve fails to shift switch to heating.
Page 21 WIRING DIAGRAM: MODELS WS08B10A-C, WS10B10A-C, WS14B10A-C, WS10B30A-C, WS13B30C...
Page 22 WIRING DIAGRAM: MODELS WS16B30A-C...
Page 23 WIRING DIAGRAM: MODELS WE10B33A-B, WE13B33B-B...
Page 24 WIRING DIAGRAM: MODELS WE16B33A-B...
Page 25 WIRING DIAGRAM: MODELS WY10B33A-B, WY13B33A-B...
Page 26: Parts Diagram
WS, WE & WY SERIES CHASSIS PARTS...
Page 27: Parts Lists
WALLMASTER PARTS 2007 DESCRIPTION PART NO. 115V 230V CODE ELECTRICAL PARTS ELECTRONIC BOARD 61921198 ELECTRONIC BOARD 61921199 REMOTE CONTROL 61826606 THERMOSTAT 25043302 THERMOSTAT, DEF. 61350314 OVERLOAD 61764507 OVERLOAD 61764519 OVERLOAD 61764528 OVERLOAD 61764554 OVERLOAD 61764555 OVERLOAD 61764556 CAPACITOR 61080533 CAPACITOR 61080569 CAPACITOR 61080535...
Page 28 WALLMASTER PARTS 2007 DESCRIPTION PART NO. 115V 230V CODE CHASSIS PARTS SHROUD, CONDENSER 62102000 FAN BLADE, COND. 62101500 BLOWER WHEEL, EVAP. 60610604 BLOWER FRONT 62100600 BLOWER FRONT 62100601 SCROLL 62102100 BASE PAN 62100914 BASE PAN 62100915 BASE PAN ASLY. 61606219 BELLOWS,DRAIN VALVE 60179903 DRAIN PAN, ASSY.
Page 29 WS - WE - WY SERIES SLEEVE PARTS DESCRIPTION PART NO. SLEEVE ASSEMBLY 61603611 PANEL, WEATHER INNER 61603201 GRILLE, LOUVERED 61603011 PANEL, WEATHER OUTER 61603303 WS, WE & WY SERIES SLEEVE PARTS...
Page 30 Friedrich Air Conditioning Co. Post Office Box 1540 • San Antonio, Texas 78295-1540 4200 N. Pan Am Expressway • San Antonio, Texas 78218-5212 (210) 357-4400 • FAX (210) 357-4480 www.friedrich.com Printed in the U.S.A. WM-Svc-Prts-07 (3-07)
