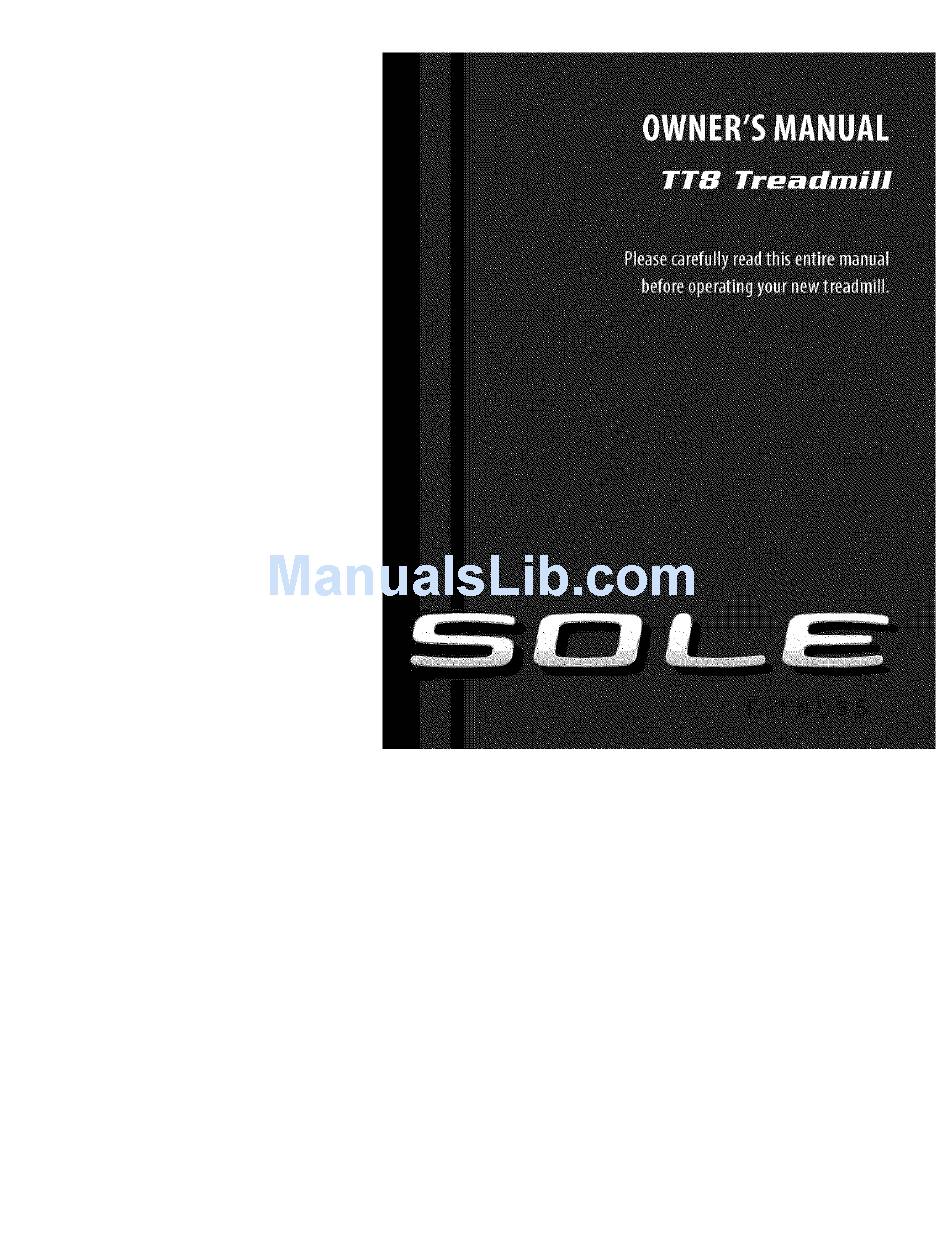

Sole Fitness TT8 Owner's Manual

Hide thumbs Also See for TT8:

Advertisement

Quick Links

Download this manual See also: Owner's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the TT8 and is the answer not in the manual?

Questions and answers

Related Manuals for Sole Fitness TT8

Summary of Contents for Sole Fitness TT8

  • Page 2 T TS TABLE O F Product Registration ImDortant Safety Instrucfion_ Important Electrical Information Important Operation Instructions Assembly instructions Transport Instructions .Operation of Your New Treadmill Programmable Features Using Heart Rate Transmitter General Maintenance Service Checklist - Diagnosis Guide Manufacturer's Limited Warrant_...
  • Page 3 SOLE will do all we can to make your ownership experience as pleasant as possible for many years to come. If you have any questions about your new product or questions about the warranty contact SOLE Fitness at 1-866-780-SOLE (7653).
  • Page 4 UCTI WARNING - Read all instructions before using this appliance. DANGER -To reduce the risk of electric shock disconnect your SOLE treadmill from the electrical outlet prior to cleaning and/or service work. WARNING -To reduce the risk of burns, fire, electric...
  • Page 5 "- Tabof grounded outlet box cover. \"-Metal Screw Grounding Whenever the adapter Screw used, it must be held in Grounded Outlet Box place by a metal screw. Grounding TT8 TREADMILL...
  • Page 6 If you feel the buttons are not functioning properly with normal pressure contact your SOLE dealer. SAFETY T T A safety tether cord is provided with this unit. (See Step 6 of Assembly Guide, #6:3} It is a simple magnetic...
  • Page 7 023mm x 1.5T #102.010mm x 019mm x 1.5T Curved Washer (4 pcs) Flat Washer (6 pcs) © #85.3/8"x #125.3/8"x 1-3/4" Split Washer (4 pcs) Button Head Socket Bolt (4 pcs) #90.3.Smm x 16mm Sheet Metal Screw (6 pcs) TT8 TREADMILL...
  • Page 8 EESYJ 3 #99.5/16"x 3/4" Flat Head Socket Bolt (4 pcs) #126. M5 x lOmm Phillips Head Screw (4 pcs) #104. Combination M5 Allen Wrench & Phillips Head Screw Driver #105. M6 L Allen Wrench TT8 TREADMILL...
  • Page 9 Console Mast Tube (4). Before attaching the hardware to Step 3, make sure the cables you just connected don't get pinched in between the steel tubing. If they do, this may cause issues that prevent the treadmill from operating properly. TT8 TREADMILL...
  • Page 10 Allen Wrench & Phillips Head Screw Driver (104). Connect the lower Computer Cable (33) to the upper Computer Cable (31), the Remote Speed Cable (34) to the upper Speed Cable (112), and the Remote Incline Cable (35) to the upper Incline Cable (113). TT8 TREADMILL...
  • Page 11 M6 Allen Wrench (105). • #90. 3.Smm x 16mm Sheet Metal Screws (6 pcs) Attach the two halves of each Handrail Cover (117 & 118; 119 & 120) with three Sheet Metal Screws (90) on each set of plastics. TT8 TREADMILL...
  • Page 12 M6 Allen Wrench (105). Attach the console mast covers (40R & 41 L) to each mast (5 & 4) with two Phillips Head Screws (126) on each side. Tighten using the Combination Allen Wrench & Phillips Head Screw Driver (104). TT8 TREADMILL...
  • Page 13 TRANSPORTATION I ST UCT Carefullylift the treadmillat the rearroller area,grasping the two side end caps,and roll the treadmillaway. TT8 TREADMILL...
  • Page 14 DOT MATRIX D ISPLAY HEADPHONE JACK (MP3, CD, or SMARTPHONE) HEART RATE SENSORS GETTING S TARTED TT8 CONSOLE Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power switch located at the front of the treadmill below the motor hood.
  • Page 15 / decrease by selecting the desired Quick Incline key, 1,3, 6, 9, 12, 14, 15, on left hand side of console (incline). The space above the Incline heading on the LCD will indicate deck elevation as adjustments are made. TT8 TREADMILL...
  • Page 16 Audio sources include MP3, iPod, portable radio, CD player or even a TV or computer audio signal.There is an audio patch cable included to and also a headphone jack (C_) for private listening. TT8 TREADMILL...
  • Page 17 Stop, Enter and Display keys for 5 seconds; the display will show: Display mode - On. Use the Up arrow or Fast key to change the setting to Off then press Enter. TT8 TREADMILL...
  • Page 18 PROGRAMMA The TT8 has ten built-in programs: one Manual program, five preset profiles, one Custom, FitTest, and two Heart Rate programs (HR1 & HR2). PRESET PROGRAMS Hill The Hill program simulates going up and down a hill.The speed will steadily increase and then decrease during the program.
  • Page 19 Enter. Each program has various speed changes throughout; this allows you to limit the highest speed the program will attain during your workout. Press Start to begin or Enter to modify your settings. TT8 TREADMILL...
  • Page 20 Repeat the same process used to set the speed values for programming the segments incline. Press the Start button to begin the workout and also save the program to memory. TT8 TREADMILL...
  • Page 21 If Enter is pressed, the 11.1 10:15 7.0mph 76.3 score will be displayed for 10 seconds then go to TEST 11.2 10:30 7.0mph 77.7 OVER..Message. 11.3 10:45 7.0mph 79.1 11.4 11:00 7.0mph TT8 TREADMILL...
  • Page 22 Whatyour scoremeans: VO2maxChartfor malesandvery fit females 26-35 36-45 46-55 18-25 56-65 years years years years years years excellent >60 >56 >51 >45 >41 >37 good 52-60 49-56 43-51 39-45 36-41 33-37 above average 47-51 43-48 39-42 35-38 32-35 29-32 average 42-46 40-42 35-38...
  • Page 23 MHR on a schedule approved by your physician. Consult your physician before participating in any exercise program. With all SOLE treadmills you may use the heart rate monitor feature without using the Heart Rate program.This function can be used during manual...
  • Page 24 In this condition, your pace will feel harder. Again, this will show up in your RPE and you will train at the proper level for that day. TT8 TREADMILL...
  • Page 25 Another Individual wearing a transmitter within 3'of your machine's console. If you continue to experience problems contact your dealer. WARNING! - DO NOT USETHEHEART RATEPROGRAM IFYOUR HEARTRATEIS NOT REGISTERING PROPERLYON THETREADMILL'S DISPLAY! TT8 TREADMILL...
  • Page 26 %. TT8 TREADMILL...
  • Page 27 - that connects the motor to the front roller. If that belt is loose it feels similar to the walking belt being loose.Tightening the motor belt should be done by a trained service person. TT8 TREADMILL...
  • Page 28 TO THE RUNNING BELT RESULTING FROM IMPROPER TRACKING / TENSION ADJUSTMENTS IS NOT COVERED UNDER THE SOLE WARRANTY. DECK MAINTENANCE The deck has a wax coating that generally withstands up to 20,000 miles of use on the original side. If either...
  • Page 29 Plug is disconnected. Make sure plug is firmly pushed into an AC wall outlet. Facility or Home circuit breaker may be tripped. Treadmill defect. Contact your SOLE dealer. Tread-belt does not stay centered The user may be walking while favoring or putting more weight on either the left or right foot.
  • Page 30 When the child Security - keypad so lock is the console will not allow the unless you press and hold the Start and enabled, keypad to operate Enter buttons for 3 seconds to unlock the console. Exit TT8 TREADMILL...
  • Page 31 SOLE Fitness P.O. Box 2037 Jonesboro, AR 72402-2037 Product features or specifications as described or illustrated are subject to change without notice. All warranties are made by SOLE. TT8 TREADMILL...
