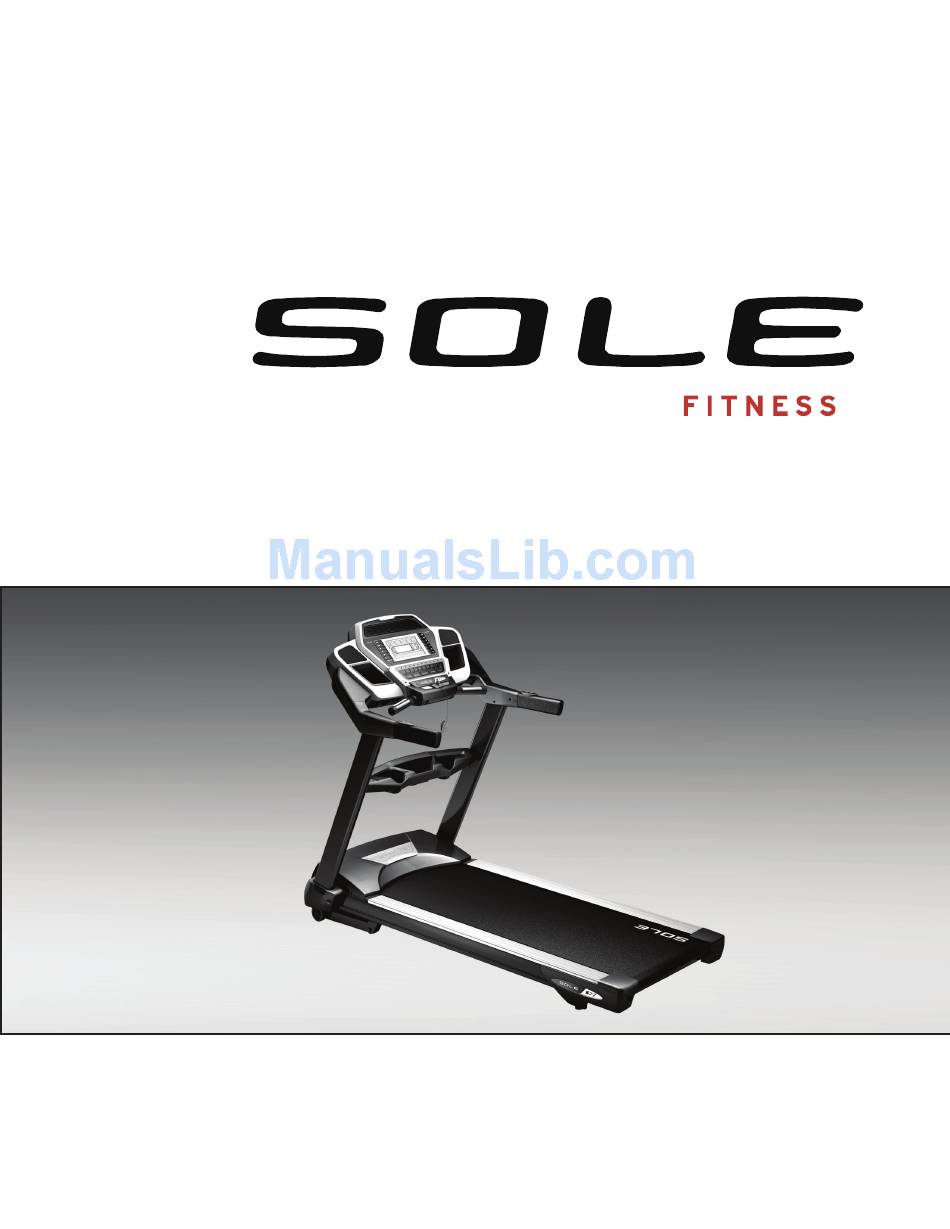

S77 TREADMILL OWNER'S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S77 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sole Fitness S77

Summary of Contents for Sole Fitness S77

  • Page 1 S77 TREADMILL OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Product Registration Important Safety Instructions Important Electrical Information Important Operation Instructions Assembly instructions Folding Instructions Transport Instructions Operation of Your New Treadmill Programmable Features General Maintenance Service Checklist - Diagnosis Guide Manufacturer’s Limited Warranty...

  • Page 4: Product Registration

    Serial Number REGISTER YOUR PURCHASE The self-addressed product registration card must be completed in full and returned to SOLE. You can also go to www.soletreadmills.com under the support tab to register online. S77_20120123 S77 TREADMILL...

  • Page 5: Important Safety Instructions

    „ Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your treadmill. Quality athletic shoes are recommended to avoid leg fatigue. Remove tether cord after use to prevent unauthorized treadmill operation. SAVE THESE INSTRUCTIONS - THINK SAFETY! S77 TREADMILL...

  • Page 6: Important Electrical Information

    Whenever the adapter is used, it must be held in place by a metal screw. S77 TREADMILL...

  • Page 7: Important Operation Instructions

    Be familiar with its function and limitations. The treadmill will stop, depending on speed, with a one to two step coast anytime the magnet is pulled off the console. Use the red Stop / Pause switch in normal operation. S77 TREADMILL...
  • Page 8 PREVENTATIVE MAINTENANCE CHART Vacuum Under Motor Cover & Clean & Inspect Deck Lubricate Deck Inspect Belt Tracking Check Wiring for Lubrication (Every 180 hours (Monthly) Adjust if Date (Every Other (Every Other Month) or sooner if dry) necessary Month) S77 TREADMILL...

  • Page 9: Hardware Step

    S77 ASSEMBLY PACK CHECKLIST HARDWARE STEP 3 #100. 5/16” x 3/4” #79. 10mm #86. 3/8” x 2T #123. 3/8” x 2” Button Head Star Washer (6 pcs) Split Washer (6 pcs) Button Head Socket Bolt (4 pcs) Socket Bolt (6 pcs) HARDWARE STEP 5 #86.
  • Page 10 HARDWARE STEP 8 #92. M5 x 10mm Phillips Head Screw (4 pcs) ASSEMBLY TOOLS #104. Combination M5 Allen Wrench #18. Lubricant & Phillips Head Screw Driver #105. M6 Allen Wrench S77 TREADMILL...

  • Page 11: Assembly Instructions

    S77 ASSEMBLY INSTRUCTIONS ASSEMBLY STEP 1 See Page 10 for Illustration Remove the treadmill base frame from the carton and lay it aside on firm, level ground. ASSEMBLY STEP 2 Slide the console mast tube covers (99 onto 5 & 98 onto 4) onto the left and right console mast tubes.
  • Page 12 Connect the Computer Cable (33) to the upper Computer Cable (31). Before attaching the hardware to Step 5, make sure the cables you just connected don’t get pinched in between the steel tubing. If they do, this may cause issues that prevent the treadmill from operating properly. S77 TREADMILL...
  • Page 13 Attach the Left Handgrip Side Caps (111,112) and Right Handgrip Side Caps (113,114) on the uprights (5,4) and Console Assembly (36) with four Phillips Head Screws (92) and two Self Tapping Screws (90) on each side. Tighten using the Combination M5 Allen Wrench and Phillips head screw driver (103). S77 TREADMILL...
  • Page 14 Slide the console mast tube covers all the way to the bottom of each tube and attach with two Phillips head screws (92) on each side. Tighten using the Combination M5 Allen Wrench and Phillips head screw driver (103). S77 TREADMILL...

  • Page 15: Folding Instructions

    TRANSPORTATION INSTRUCTIONS Carefully lift the treadmill at the rear roller area, grasping the two side end caps, and roll the treadmill away. S77 TREADMILL...

  • Page 16: Operation Of Your New Treadmill

    OPERATION OF YOUR TREADMILL GETTING FAMILIAR WITH THE CONTROL PANEL S77 CONSOLE COOLING FANS SPEED QUICK KEYS INCLINE QUICK KEYS SPEAKER SPEAKER FAN POWER SWITCH DOT MATRIX DISPLAY DISPLAY BUTTON CONTROL KEYS AUDIO IN JACK HEADPHONE JACK (MP3, CD, OR...
  • Page 17 3. To slow tread-belt press and hold the Slow key (console or handgrip) to the desired speed. You may also press the Quick speed adjust keys, 2 through 12. 4. To stop the tread-belt press Stop key or pull away Safety Key. S77 TREADMILL...

  • Page 18: Incline Feature

    You may also choose a more rapid increase / decrease by selecting the desired Quick Incline key, 1, 3, 6, 9, 12, 15, on left hand side of console (incline). „ The message window display will indicate incline position as adjustments are made. S77 TREADMILL...
  • Page 19 Pulse values are displayed anytime the computer is receiving a Grip Pulse signal or while wearing a chest strap transmitter (see Using the Heart Rate Transmitter section for directions). You may not use the Grip Pulse feature while in Heart Rate. S77 TREADMILL...
  • Page 20 Stop, Enter and Display keys for 5 seconds; the display will show: Display mode - On. Use the Up arrow or Fast key to change the setting to Off then press Enter. S77 TREADMILL...

  • Page 21: Programmable Features

    PROGRAMMABLE FEATURES The S77 have ten built-in programs: one Manual program (PO), five preset profiles, two user defined programs (U1 & U2) and two Heart Rate programs (HR1 & HR2). PRESET PROGRAMS Hill The Hill program simulates going up and down a hill. The resistance in the pedals will steadily increase and then decrease during the program.
  • Page 22 Use the Up/Down keys to adjust, and then press Enter. Each program has various speed changes throughout; this allows you to limit the highest speed the program will at- tain during your workout. 6. Press Start to begin or Enter to modify your settings. S77 TREADMILL...
  • Page 23 6. The first column will be blinking again. The console is now ready for the incline settings. Repeat the same process used to set the speed values for programming the segments for incline. 7. Press the Start button to begin the workout and also save the program to memory. S77 TREADMILL...
  • Page 24 With all SOLE Heart Rate treadmills you may use the heart rate monitor feature without using the Heart Rate program. This function can be used during manual mode or during any of the nine different programs. S77 TREADMILL...
  • Page 25 If you are feeling tired and sluggish, it is because your body needs a break. In this condition, your pace will feel harder. Again, this will show up in your RPE and you will train at the proper level for that day. S77 TREADMILL...
  • Page 26 Another Individual wearing a transmitter within 3’ of your machine’s console. If you continue to experience problems contact your dealer. WARNING! - DO NOT USE THE HEART RATE PROGRAM IF YOUR HEART RATE IS NOT REGISTERING PROPERLY ON THE TREADMILL’S DISPLAY! S77 TREADMILL...
  • Page 27 This process is automatic and could take upwards of five minutes, depending on how far your HR needs to go and what kind of physical shape you are in. People who are more fit will take longer to reach the target. S77 TREADMILL...

  • Page 28: General Maintenance

    - located under the motor cover - that connects the motor to the front roller. If that belt is loose it feels similar to the walking belt being loose. Tightening the motor belt should be done by a trained service person. S77 TREADMILL...

  • Page 29: Tread-Belt Tracking Adjustment

    Adjustments will become less of a maintenance concern as the belt is used. Proper belt tracking is an owner responsibility common with all treadmills. ATTENTION: DAMAGE TO THE RUNNING BELT RESULTING FROM IMPROPER TRACKING / TENSION ADJUSTMENTS IS NOT COVERED UNDER THE SOLE WARRANTY. S77 TREADMILL...
  • Page 30 Do not lubricate with anything other than Sole Fitness approved lubricant. Your treadmill comes with one tube of “Lube” and extra tubes can be ordered directly from Sole Fitness or your authorized Sole Fitness dealer. You may also use a Lube-n-Walk kit that can be purchased through both aforementioned sellers.

  • Page 31: Service Checklist - Diagnosis Guide

    (on a cold day) while Instructions on page 4. walking/running House circuit breaker trips, but not Need to replace the house breaker with a “High In- rush current” type breaker (see page 4 for details) the treadmill circuit breaker S77 TREADMILL...
  • Page 32 IV. Units - Choose from English or Metric display readings Grade Return - Returns elevation to lowest setting when pause is pressed Key Test - Will allow you to test all the keys to make sure they are functioning Display Test - Tests all the display functions S77 TREADMILL...

  • Page 33: Manufacturer's Limited Warranty

    Submit all service requests including serial number, contact information and a brief description of the problem online at www.soletreadmills. com/technical.php?p=service. If you have any questions about your new product or questions about the warranty contact SOLE Fitness at 1-866-780-SOLE (7653). If you have a technical problem with your new treadmill contact SOLE technical service at 866-MYSOLE1 (697-6531).
