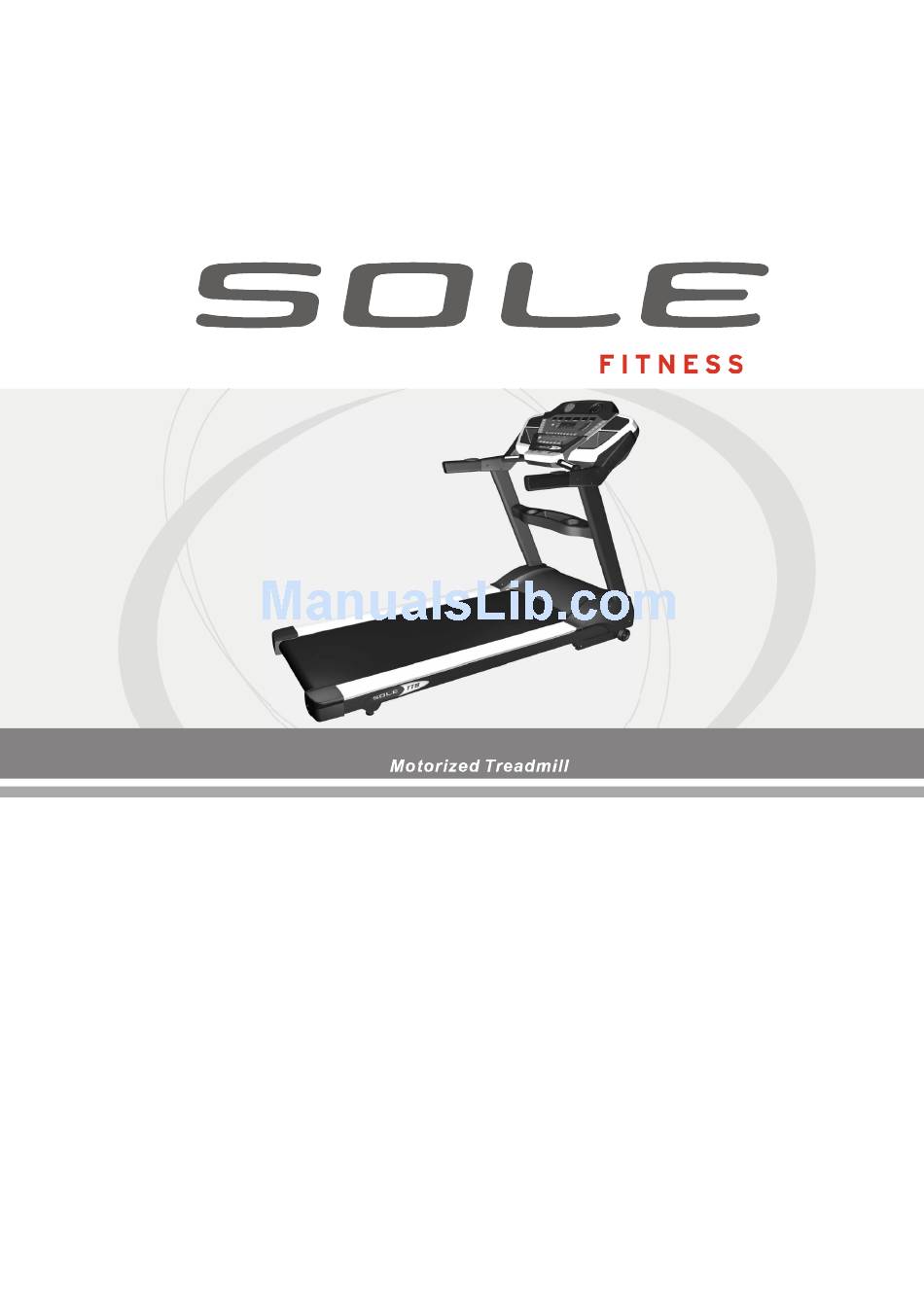

- Page 1 OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL!
-
Page 2: Table Of Contents
Product Registration Important Safety Instructions Important Electrical Information Important Operation Instructions Assembly instructions Transport Instructions Operation of Your New Treadmill Programmable Features Target Heart Rate Using a Heart Rate Transmitter Heart Rate Control Operation General Maintenance. Service Checklist - Diagnosis Guide Manufacturer s Limited Warranty ..11... -
Page 3: Product Registration
Thank you for your purchase of this quality treadmill from SOLE. Your new treadmill has been manufactured by one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive warranties available. SOLE will do all we can to make your ownership experience as pleasant as possible for many years to come. -
Page 4: Important Safety Instructions
Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both carpet and treadmill may result. Do not block the rear of the treadmill. Provide a minimum of 3 1/2 feet clearance between the rear of the treadmill and any fixed object. -
Page 5: Important Electrical Information
NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Large switching currents of the drive motor will trip GFCI type outlets, as will any appliance with a large motor. Route the power cord away from any moving part of the treadmill including the elevation mechanism and transport wheels. -
Page 6: Important Operation Instructions
NEVER mount or dismount the treadmill while the belt is moving. SOLE treadmills start with at a very low speed and it is unnecessary to straddle the belt during start up. Simply standing on the belt during slow acceleration is proper after you have learned to operate the unit. - Page 7 Assembly Pack Check List #84. M5 #85. 3/8 x 2T #89. 3.5 x 12 m/m Screw (4pcs) Speed Nut (4pcs) Split Washer (4pcs) #103. 10 m/m #87. 5 x 16 m/m #92. 5 x 16 m/m Star Washer (2pcs) Self Tapping Screw (2pcs) Tapping Screw (6pcs) #99.
-
Page 8: Assembly Instructions
Assembly Instructions Step 1. Remove the treadmill from the carton and lay it aside on a hard, level surface. Step 2. Connect the Computer Cable (32) with Computer Cable from the right upright tube (33). Step3. Install the Left and Right upright tubes (5,4) into the Main Frame (1). Take care installing the right upright so that the wire harness does not get pinched or cut. - Page 9 Step4. Connect the Speed Switch Cable (37) with the upper Speed Cable (34). Connect the Incline Switch Cable (38) with the upper Incline Cable (35). Connect the Computer Cable (33) with the upper Computer Cable (31). Step5. Install the Console Assembly (36) into the top of the upright tubes (5,4) with the four 3/8 x1-3/4 Button Head Socket bolts (125) and four 3/8 Split Washers (85).
- Page 10 Step7.. 1. Install the four speed Nuts (84) on the motor cover (43). 2. Install the Motor Base Caps (39,40) with the six 5x16mm Tapping Screws (92) and two 5x16mm self-tapping Screws (87). Step 8. Install the Left Handgrip Side Caps (117,118) and Right Handgrip Side Caps (119,120) on the top of the upright tubes (5,4) with the eight M5x10mm Phillips Head Screws (126) and four 3.5x12mm Self Tapping Screws (89) by using the Combination M5 Allen Wrench &...
-
Page 11: Transport
Transport Carefully lift the treadmill at the rear roller area, grasping the two side end caps, and roll the treadmill away. -10-... -
Page 12: Operation Of Your New Treadmill
TT8 Console Getting Started: Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power switch located at the front of the treadmill below the motor hood. Ensure that the safety key is installed, as the treadmill will not power on without it. -
Page 13: Treadmill Features
Treadmill Features: Pause/Stop/Reset: STEP 1: When the treadmill is running the pause feature may be utilized by pressing the red Stop key once. This will slowly decelerate the tread-belt to a stop. The incline will go to zero percent. The Time, Distance and Calorie readings will hold while the unit is in the pause mode. After 5 minutes the display will reset and return to the start up screen. -
Page 14: Programmable Features
The display will automatically turn off (blank out) after 30 minutes of inactivity. This function is called sleep mode. In sleep mode, the treadmill will power down most everything except for a minimum of circuitry for detecting key presses and the safety key so it will start up again if these are activated. -
Page 15: User Programs
time. After adjusting the time, press enter. (Note: You may press start at any time during the programming to begin with only settings you have modified at that point). STEP 3: The Calorie window will now be blinking a value, indicating your Body Weight. Entering the correct body weight will affect the calorie count. -
Page 16: Target Heart Rate
Target Heart Rate The old motto, no pain, no gain , is a myth that has been overpowered by the benefits of exercising comfortably. A great deal of this success has been promoted by the use of heart rate monitors. With the proper use of a heart rate monitor, many people find that their choice of exercise intensity is either too high or too low and exercise is much more enjoyable by maintaining their heart rate in the desired benefit range. -
Page 17: Using A Heart Rate Transmitter
(estimated transmitter battery life is 2500 hours). The replacement battery is Panasonic CR2032. Erratic Operation: Caution! Do not use this treadmill for Heart Rate Control unless a steady, solid Actual Heart Rate value is being displayed. High, wild, random numbers being displayed indicate a problem. -
Page 18: Heart Rate Control Operation
Heart Rate Control How the Heart Rate Control Program Works: Heart Rate Control (HRC) uses your treadmill's speed and incline systems to adjust your heart rate. Increases and decreases in elevation affect heart rate much more efficiently than changes in speed alone. -
Page 19: General Maintenance
General Cleaning - Dirt, dust, and pet hair can block air inlets and accumulate on the running belt. On a monthly basis vacuum underneath your treadmill to prevent buildup. Once a year, you should remove the black motor hood and vacuum out dirt that may accumulate. UNPLUG POWER CORD BEFORE THIS TASK. - Page 20 The treadmill is designed to keep the tread-belt reasonably centered while in use. It is normal for some belts to drift near one side while the belt is running with no one on it. After a few minutes of use, the tread-belt should have a tendency to center itself.
-
Page 21: Belt/Deck Lubrication Procedure
If you mostly run on the treadmill the spot where your feet land may be different from walking. -
Page 22: Service Checklist - Diagnosis Guide
This indicates motor should be receiving power to operate. Low AC voltage to treadmill. Do not use an extension cord. If an extension cord is required it should be as short as possible and heavy duty 14 gauge minimum. Low household voltage. -
Page 23: Calibration Procedure
Calibration procedure: 1) Remove the safety key 2) Press and hold down the Start and Fast (speed up) buttons with one hand and replace the safety key with the other. Continue to hold the Start and Fast key until the window displays Factory settings , then press the enter key. -
Page 24: Manufacturer S Limited Warranty
4. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose connections or defects in house wiring. 5. Expenses for making the treadmill accessible for servicing, including any item that was not part of the treadmill at the time it was shipped from the factory.
