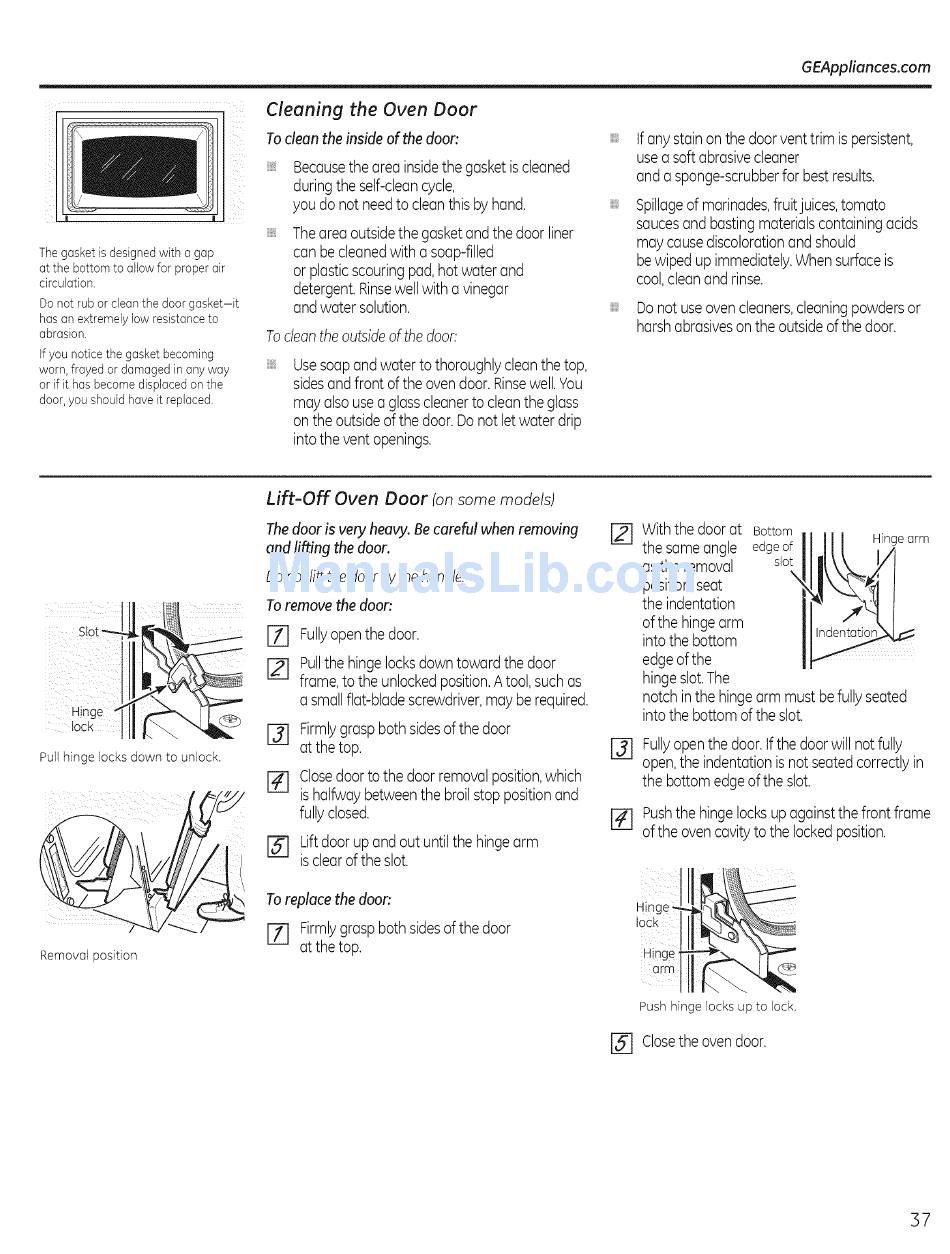

Lift-Off Oven Door - GE Quick Set V Owner's Manual

GEAppliances.com
The gasket is designed with a gap
at the bottom to allow for proper air
circulation.
Do not rub or clean the door gasket-it
has an extremely low resistance to
abrasion.
If you notice the gasket becoming
worn, frayed or damaged in any way
or if it has become displaced on the
door, you should have it replaced.
Cleaning the Oven Door
To clean the inside of the door:
Because the area insidethe gasketis cleaned
duringthe self-cleancycle,
you do not needto cleanthis by hand.
Thearea outsidethe gasketand the door liner
can be cleanedwith a soap-filled
or plasticscouringpad,hot water and
detergent.Rinse wellwith a vinegar
and water solution.
Tocleantheoutsideof thedoor:
Usesoapand water to thoroughlycleanthetop,
sidesand front of the ovendoor.Rinse well.You
may alsousea glasscleanerto cleantheglass
on theoutsideof the door.Donot let water drip
into the vent openings.
tf anystain on the doorvent trim ispersistent,
usea softabrasivecleaner
and a sponge-scrubber for bestresults.
Spillage of marinades, f ruitjuices,tomato
saucesand bastingmaterialscontainingacids
maycausediscoloration and should
bewipedup immediately. Whensurfaceis
cool,cleanand rinse.
Donot useovencleaners, c leaningpowdersor
harshabrasives on the outsideof the door.
Slot----.-.
Hinge " E_
lock "_
Pull hinge locks down to unlock.
Removal position
Lift-Off Oven Door (on some models)
Thedoor is very heavy.Becareful whenremoving [-_
and lifting the door.
Do not liftthe door by the handle.
Toremovethe door:
[Z] Fullyopenthe door.
[] Pullthe hingelocksdowntoward the door
frame,to the unlocked position.A tool,suchas
a smallflat-bladescrewdriver, m ay be required.
Firmlygraspbothsidesof the door
at the top.
%
Close door to the door removalposition, w hich
is halfwaybetweenthe broilstop positionand
fully closed.
[] Lift door up and out untilthe hingearm
is clearof the slot.
Toreplacethe door:
Firmlygrasp both sides of the door
FT] at the top.
With the doorat Bottom
the sameangle edge of
asthe removal slot
\
position,seat
the indentation
of the hingearm
intothe bottom
edgeof the
hingeslot.The
notch in the hingearm must befully seated
intothe bottomof the slot.
Hinge arm
Fullyopen thedoor.if the doorwill notfully
open,the indentationisnot seatedcorrectlyin
the bottomedgeof the slot.
r_ pushthe hingelocksup againstthefront frame
of the ovencavityto the lockedposition.
@
Hinge, I '_s_ ....
tOck
Hinge
Push hingelocksup tolock.
Close the ovendoor.
37
