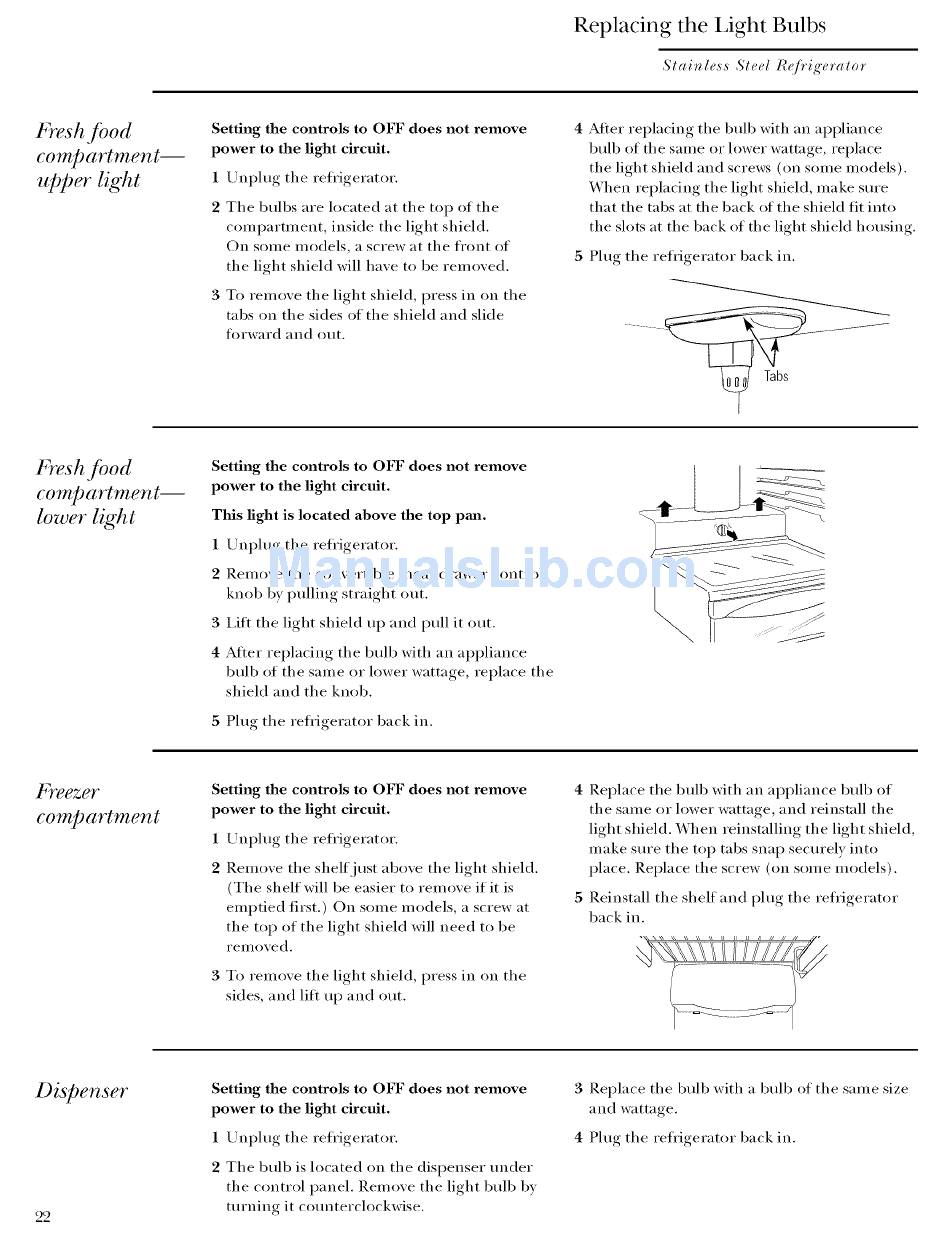

Replacing
the i,ight Bulbs
Stainless
Steel
IG_/}'igerator
Freshjbod
compartment--
ul)l)olight
Setting
the controls
to OI_T does not remove
power
to the light circuit.
1 Unplug
the refl'igerator.
2 The bulbs
are located
at the top of the
comi)artment,
inside
the light shield.
On some models,
a screw at the fl'ont
of
the light shield
will have to be removed.
3 To remove
the light shield,
press
in on the
tabs on the sides of the shield
and slide
fl)rward
and
out.
4 After
replacing
the
bulb
with
an appliance
bulb
of the
same
or lower
wattage,
replace
the
light
shield
and
screws
(on
some
models),
When
repladng
the
light
shield,
make
sure
that
the
tabs
at the
back
of the
shield
fit into
the
slots
at the
back
of the
light
shield
housing,
5 Plug
the
refl'igerator
back
in.
l resh jbod
compartment--
lower light
Setting
the controls
to OFF does not remove
power
to the light circuit.
This light is located
above
the top pml.
1 UnI)lug
the refl'igerator.
2 Remove
the convertible
meat
drawer
control
knob
by pulling
straight
out.
3 I,iti the light shield
up and pull it out.
4 Alter
replacing
the bulb with an appliance
bulb of the same
or lower wattage,
replace
the
shield
and the knob.
5 Plug the refl'igerator
back in.
Setting
the controls
to OFF does not remove
power
to the light circuit.
1 Unplug
the refl'igerator.
2 Remove
the shelf just above
the light shield.
(The shelf will be easier
to remove
if it is
emptied
first.)
On sore e models,
a screw at
the top of the light shield
will need
to be
reiiloved,
3 To remoxe
the light shield,
press
in on the
sides, and lilt up and out.
4 Replace
the bulb with an appliance
bulb of
the same
or lower wattage,
and reinstall
the
light shield.
When
reinstalling
the light shield,
make
sure the top tabs snap securely
into
place.
Replace
the screw (on some models).
5 Reinstall
the shelf and plug the refl'igerator
back in.
Dispenser
22
Setting
the controls
to OFF does not remove
power
to the light circuit.
1 UnI)lug
the refl'igerator.
2 The bulb is located
on the dispenser
under
the control
panel.
Remove
the light bulb by
turning
it counterclockwise.
3 Replace
the bulb with a bulb of the same
size
and
watta *e
4 Phm the refrigerator
back in.
