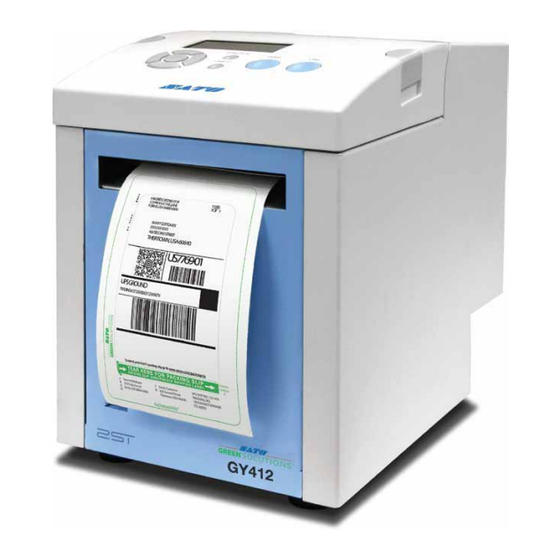

- Page 1 Quick Guide For printer model: GY412 PN: 9001246(B) Read this Quick Guide before using this product. Keep this document available for future reference.
- Page 2 The content of this document may be changed without prior notice. Great care has been taken in the preparation of this document. If any problems, mistakes, or omissions are found, please contact your SATO reseller or technical support center. FCC Statement The printer complies with the requirements in Part 15 of FCC Rules for a Class B Computing Device.
-
Page 3: Safety Precautions
• Do not place flower vases, cups, the power cord. Also, do not place your SATO reseller or technical or other containers holding liquids, heavy objects on the power cord, support center for repairs. It is... - Page 4 You should not replace the print Doing so could result in electric shock. head without having received the proper training. Page ii GY412 Quick Guide...
-
Page 5: Power Supply
Connect the power cord to a grounded power plugged into. This may cause voltage reduction and outlet. malfunction. Make sure that the printer is plugged into a grounded power outlet. GY412 Quick Guide Page iii... - Page 6 Safety Precautions Page iv GY412 Quick Guide...
-
Page 7: Table Of Contents
Names of Parts......................1-2 Operator panel ........................1-5 Turning On the Power ....................2-1 Turning Off the Power ....................2-2 Basic Specifications ....................3-1 SATO Group of Companies ..................4-1 SATO Group of Companies ....................4-2 GY412 Quick Guide Page 1... - Page 8 Table of Contents Page 2 GY412 Quick Guide...
-
Page 9: Accessories
ACCESSORIES Make sure that you have received all of the following items in the package. If there are any accessories missing, contact your SATO reseller or technical support center. ABOUT THE BOX Please retain both the box in which the printer was packed, and the cushioning material (cushions that hold the printer in place). -
Page 10: Names Of Parts
Turns power ON or OFF. Label discharge outlet “ | ” is ON Discharges the printed “ ” is OFF. label. Upper print head Upper platen roller Feed roller Label length detection sensor Lower print head Lower platen roller Page 1-2 GY412 Quick Guide... - Page 11 Back side of the printer Feed Roller Label feed Label guide lock entrance lever LAN interface Label guide USB interface RS-232C interface AC input connector Connect the power SD card slot cord and apply the current to the printer GY412 Quick Guide Page 1-3...
- Page 12 Section 1: Accessories and Names of Parts AC input connector Connect the power cord to the printer here and plug its opposite end into the appropriate power receptacle. Page 1-4 GY412 Quick Guide...
-
Page 13: Operator Panel
Returns to the position after setting the label, previous screen. press the LINE button to go offline, and then, press the FEED button to automatically adjust the label position to its top of form position. GY412 Quick Guide Page 1-5... - Page 14 Section 1: Accessories and Names of Parts This page is intentionally left blank. Page 1-6 GY412 Quick Guide...
-
Page 15: Turning On The Power
A three-prong power cord is provided. If your power socket has three contacts, the third one is connected to the ground for safety. If your power outlet has two slots, use a three-prong to two-prong adapter. GY412 Quick Guide Page 2-1... -
Page 16: Turning Off The Power
Ensure that the printer is in offline mode before you turn off the power. If the printer is in online mode, press the LINE button to go offline. After an [OFFLINE] message is displayed on the LCD screen, press the power switch toward [ o ]. Page 2-2 GY412 Quick Guide... -
Page 17: Basic Specifications
Some restriction may apply to the print speed, depending on the layout and the label type. Label type /label Fanfold label (Maximum folded height: 5.11”/130 mm). We recommend using shape label manufactured or specified by SATO. Label thickness 100 to 320 μm 0.003 to 0.012” (0.1 to 0.32 mm) - Page 18 During standby: 11 W 14VA Environmental Operating environment: 32 to 104°F / 0 to 40°C conditions (tem- perature and 30 to 80% RH (However, no condensation) humidity) (These ranges do not include labels and other supplies.) Page 3-2 GY412 Quick Guide...
- Page 19 GS1 DataBar Stacked Omni-Directional Composite GS1 DataBar Limited Composite GS1 DataBar Expanded Composite GS1 DataBar Expanded Stacked Composite GS1-128 Composite GS1 DataBar is the new version of RSS. GS1-128 is the new version of UCC/EAN128. Standard installed fonts GY412 Quick Guide Page 3-3...
- Page 20 Barcodes: Parallel 1 (0°), Parallel 2 (180°), Serial 1 (90°), Serial 2 (270°) barcodes) Barcode ratio 1:2, 1:3, 2:5, User definable Magnification Characters: Vertical 1 to 12 times, horizontal 1 to 12 times ratio Barcode: 1 to 12 times (Characters and barcodes) Page 3-4 GY412 Quick Guide...
- Page 21 Notice regarding the registered trademarks and trademarks of other companies QR Code is a registered trademark of DENSO WAVE INCORPORATED. This product is manufactured under Patent No. 6, 784, 906. SD logo is a trademark. GY412 Quick Guide Page 3-5...
- Page 22 Section 3: Basic Specifications This page is intentionally left blank. Page 3-6 GY412 Quick Guide...
-
Page 23: Sato Group Of Companies
Section 4: SATO Group of Companies SATO GROUP OF COMPANIES GY412 Quick Guide Page 4-1... - Page 24 Extensive contact information of worldwide SATO operations can be found on the Internet at www.satoworldwide.com...
