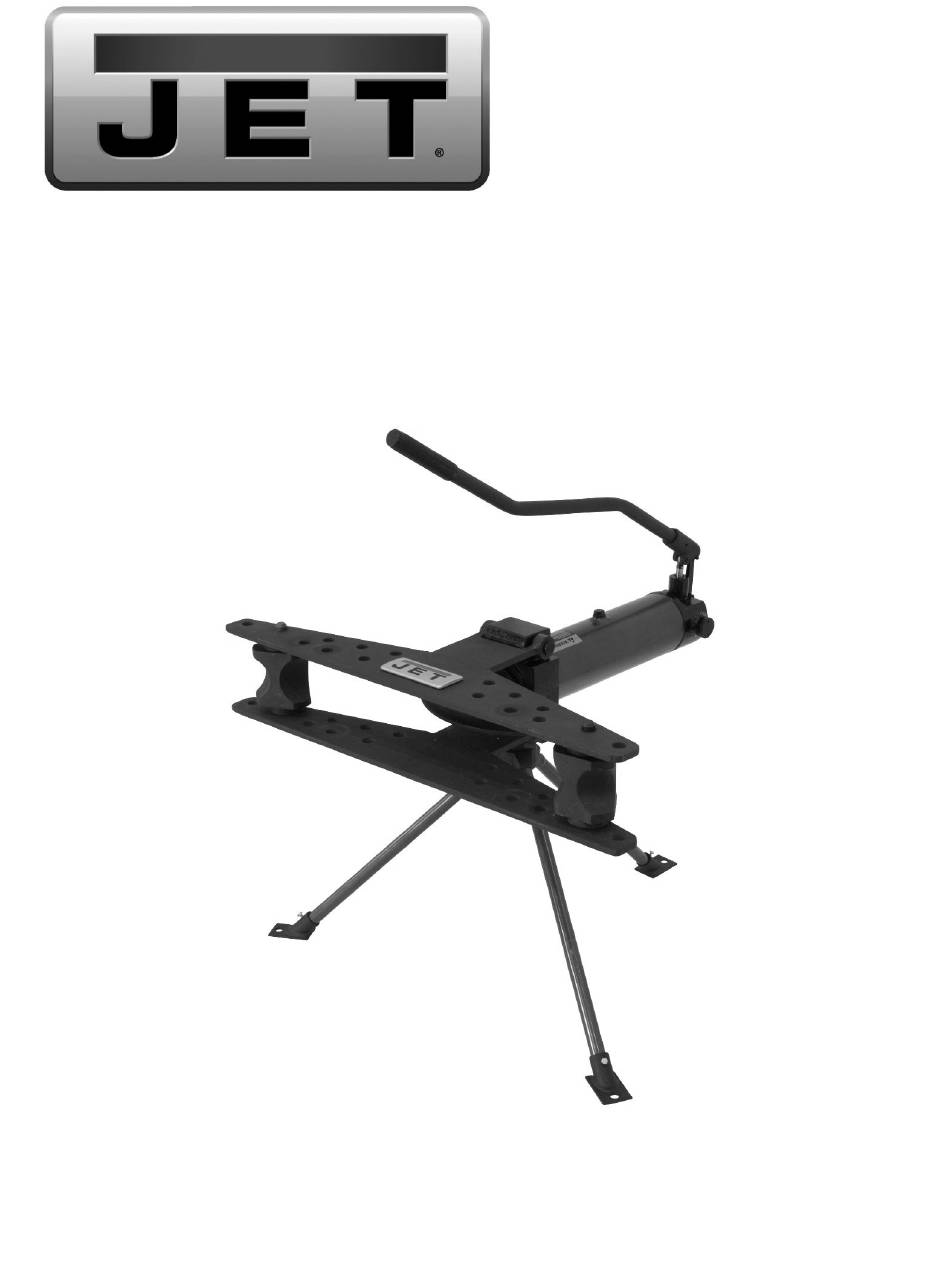

- Page 1 Operating Instructions and Parts Manual Hydraulic Pipe Bender Models: JHPB-20 (2-inch), JHPB-30 (3-inch) 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-331900 Ph.: 800-274-6848 Revision C1 11/2018 www.jettools.com Copyright © 2015 JET...
-
Page 2: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®... -
Page 3: Table Of Contents
Lubrication ................................8 Troubleshooting the JHPB Pipe Benders ......................9 Replacement Parts ..............................9 Parts Breakdown – JHPB-20 and JHPB-30 Pipe Benders ................10 Parts List – JHPB-20 and JHPB-30 Pipe Benders ..................11 ... -
Page 4: Safety Warnings
Do not use this machine for other than its intended use. If used for other purposes, JET disclaims any real or implied warranty and holds itself harmless from any injury that may result from that use. -
Page 5: Specifications
Assembled Dimensions (LxWxH)(in.) ....38-3/4 x 26 x 28-3/4 ......... 40 x 35 x 28-3/4 The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 6: Unpacking
Support Assembly (F) Hinge Pin (G) Upper Wing Plate (H) Lower Wing Plate (J) Handle (K) Tripod Leg (L) Tripod Pole Base (M) Model Bending Die Size JHPB-20 (2-in) JHPB-30 (3-in) 01/2" 03/4" 01" 01-1/4" Figure 1: Shipping Contents 01-1/2" 02" 02-1/2"... -
Page 7: Assembly
Assembly Referring to Figure 3: Screw three tripod pole bases (M) onto three tripod poles (L). Screw tripod poles (M) into the tripod seat (D). For steps 3 – 13 refer to Figure 4. Pull the knob (D , Fig. 3) on the tripod seat and Insert the support assembly (F) onto the tripod seat (D) by first pulling out the knob (D , Fig. -
Page 8: Operation
Raise the handle (A). Securing the Pipe Bender Raise the upper wing plate (B). The JHPB-20 and JHPB-30 Hydraulic Pipe Bender can be secured to the floor with three bolts through Select the suitable bending die (C) for the pipe... -
Page 9: Troubleshooting The Jhpb Pipe Benders
Troubleshooting the JHPB Pipe Benders Symptom Possible Cause Correction Hydraulic unit does not Oil low in tank. Make sure there is no oil leakage. Check lift, Pipe Bender does not that the oil level is full. work Air in pump. Pump the handle repeatedly until the ram piston stops to lift. -
Page 10: Parts Breakdown - Jhpb-20 And Jhpb-30 Pipe Benders
Parts Breakdown – JHPB-20 and JHPB-30 Pipe Benders... -
Page 11: Parts List - Jhpb-20 And Jhpb-30 Pipe Benders
Parts List – JHPB-20 and JHPB-30 Pipe Benders Index No. Part No. Description Size 1 ....JHPB20-1 ....Upper Wing Plate ..................1 ....JHPB30-1 ....Upper Wing Plate * ..................1 2 ....JHPB20-2-1 ....1/2” Bending Die ............1/2" ........ 1 .... - Page 12 ....JHPB20-ID ....ID Label (not shown) ..................1 ....JHPB30-ID ....ID Label (not shown) * ................... 1 ....JET-138 ..... JET Logo (not shown)..........138 x 57mm ....1 NOTE: * denotes for use on Model JHPB-30 only.
