1

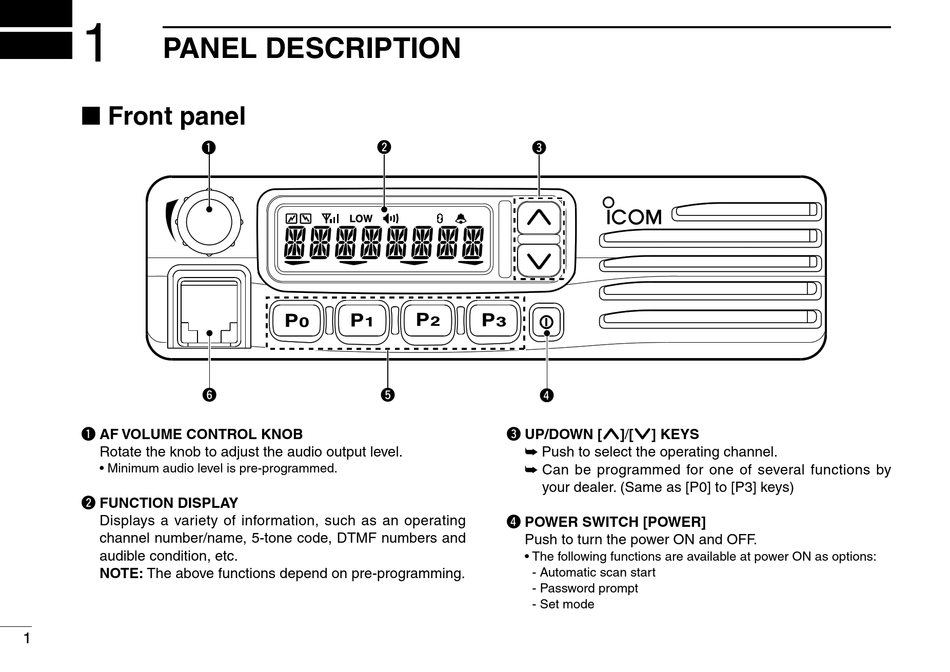

PANEL DESCRIPTION

■ Front panel

q
q AF VOLUME CONTROL KNOB
Rotate the knob to adjust the audio output level.
• Minimum audio level is pre-programmed.
w FUNCTION DISPLAY
Displays a variety of information, such as an operating
channel number/name, 5-tone code, DTMF numbers and
audible condition, etc.
NOTE: The above functions depend on pre-programming.
1
w
y t
e
r
e UP/DOWN [ ]/[ ] KEYS
➥ Push to select the operating channel.
➥ Can be programmed for one of several functions by
your dealer. (Same as [P0] to [P3] keys)
r POWER SWITCH [POWER]
Push to turn the power ON and OFF.
• The following functions are available at power ON as options:
- Automatic scan start
- Password prompt
- Set mode
