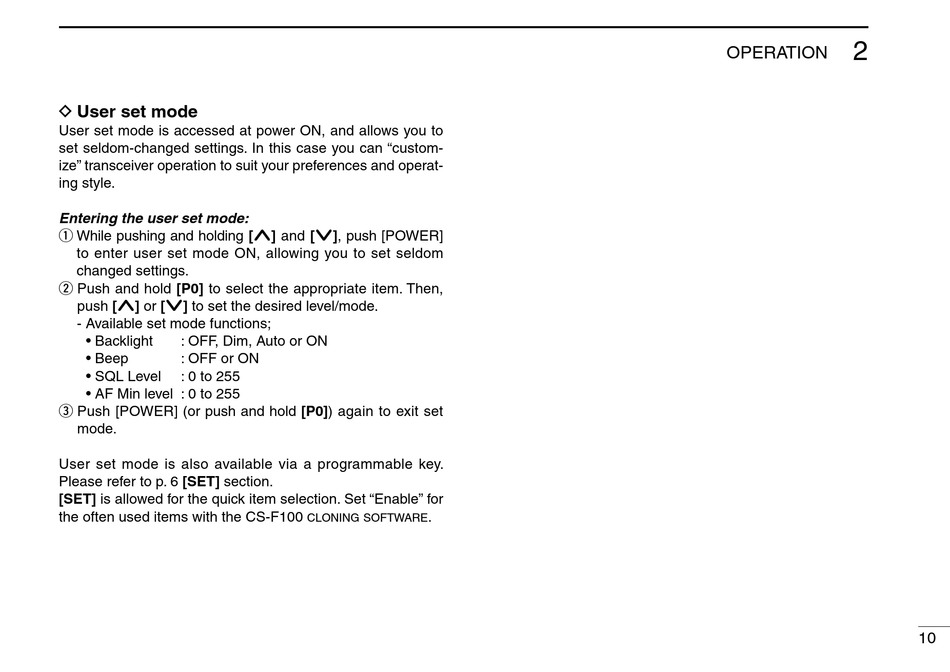

D User set mode
User set mode is accessed at power ON, and allows you to
set seldom-changed settings. In this case you can "custom-
ize" transceiver operation to suit your preferences and operat-
ing style.
Entering the user set mode:
q While pushing and holding [
to enter user set mode ON, allowing you to set seldom
changed settings.
w Push and hold [P0] to select the appropriate item. Then,
push [ ] or [ ] to set the desired level/mode.
- Available set mode functions;
• Backlight : OFF, Dim, Auto or ON
• Beep : OFF or ON
• SQL Level : 0 to 255
• AF Min level : 0 to 255
e Push [POWER] (or push and hold [P0]) again to exit set
mode.
User set mode is also available via a programmable key.
Please refer to p. 6 [SET] section.
[SET] is allowed for the quick item selection. Set "Enable" for
the often used items with the CS-F100
] and [ ], push [POWER]
.
cloning software
2
OPERATION
10
