INSTALLATION

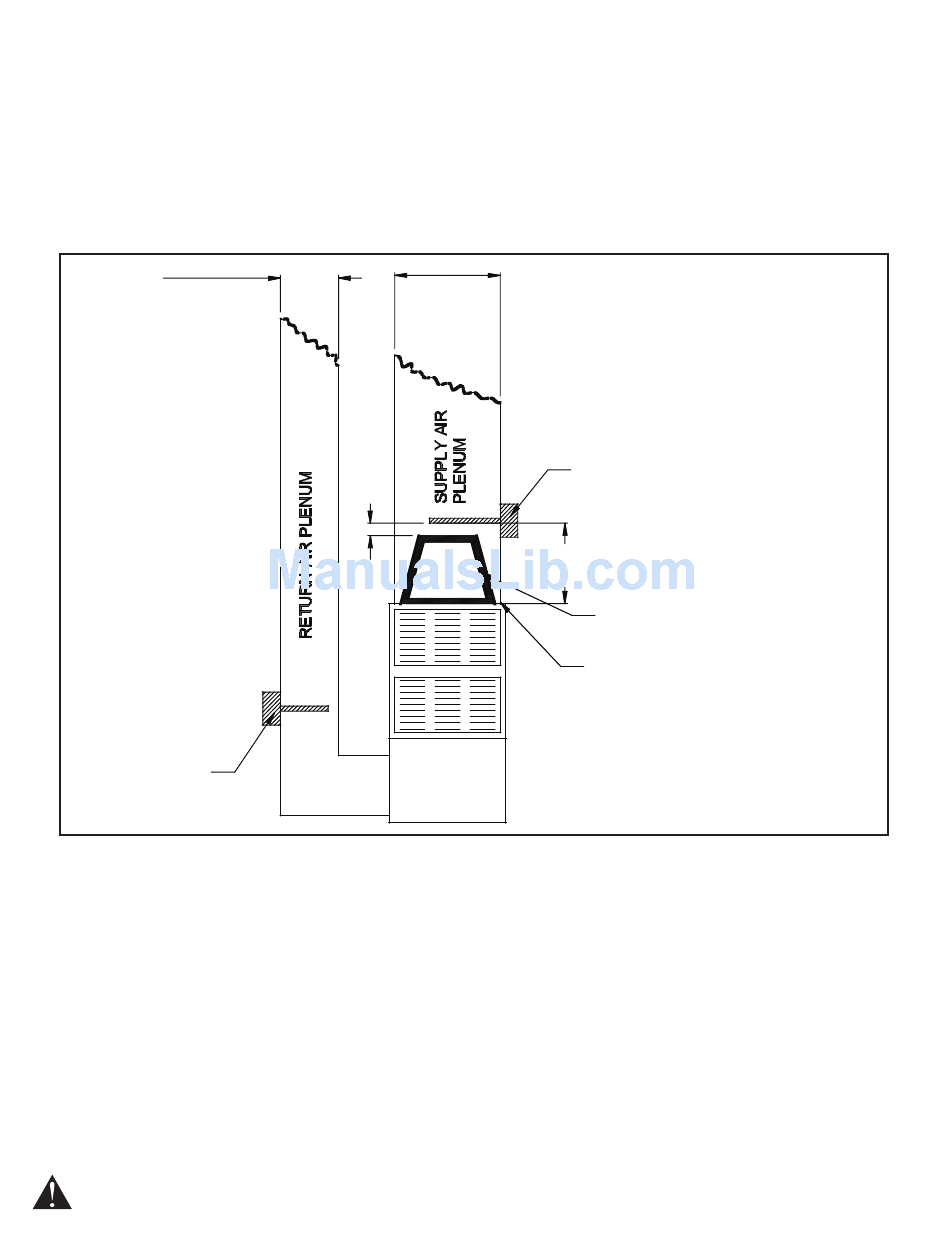

1. Locate a suitable location for the unit downstream from the 'A' coil in the supply plenum or in the return
plenum; preferably downstream from the air filter. For optimum cleaning effect on the 'A' coil, mount the
unit in the supply plenum as close as possible to the 'A' coil. (See Figure 1)
Minimum
Length or Width
UV-12 = 12 inches
UV-18 = 18 inches
UV-18HP = 18 inches
UV-28 = 28 inches
(See general information
chart for minimum
mounting dimensions)
OPTIONAL
LOCATION
WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage or blindness.
Never operate the UV-Aire Air Purifying System out of the plenum. Avoid touching the glass portion of the lamp with your hands.
Minimum
Length or Width
UV-12 = 12 inches
UV-18 = 18 inches
UV-18HP = 18 inches
UV-28 = 28 inches
(See general information
chart for minimum
mounting dimensions)
6"
Approximately
page 3
BEST
LOCATION
30"
'A' COIL
Note: Seal joints and seams of the
plenum near the mounting location
to reduce any direct viewing of light.
Figure 1
