Field Controls 46520200 Manual

U V
U V
The UV-Aire unit is designed to emit powerful UVC Band light rays, which sterilize and reduce airborne
microorganisms as they pass through a heating or air conditioning system. It is installed in the main supply or
return duct and operates continuously to automatically purify the air in the home 24 hours a day.
This product is not sold as a medical device and is not for the purpose of diagnosis of any disease or
condition, nor for use in the mitigation, treatment, or prevention of any disease or condition.
READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY
WARNING: For use with 24V ONLY! Do not exceed voltage rating. Severe damage to device and/or fire could
result. Verify proper voltage.
NOTE: This unit may require a supplemental 24V/40VA Transformer.
This device MUST be installed by a qualified agency* in accordance with the manufacturer's installation instructions.
The definition of a qualified agency is: any individual, firm, corporation or company which either in person or through a
representative is engaged in, and is responsible for, the installation and operation of HVAC appliances, who is
experienced in such work, familiar with all the precautions required, and has complied with all the requirements of the
authority having jurisdiction.
- A I R E A I R
- A I R E A I R
Model: UV-16R/24
BEFORE PROCEEDING WITH THE INSTALLATION.
P U R I F Y I N G
P U R I F Y I N G

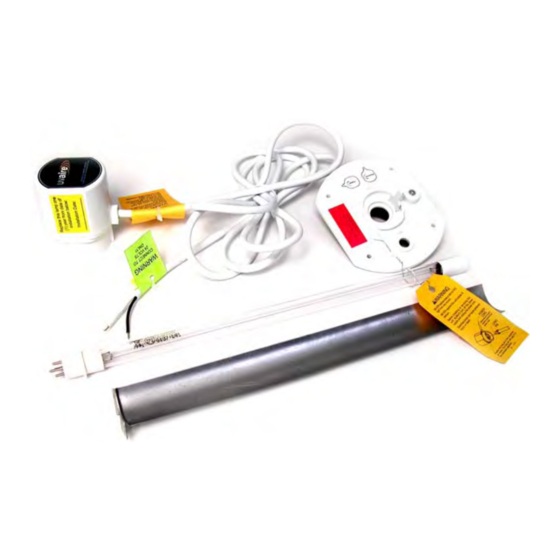

ITEMS INCLUDED IN KIT:
1- 24Volt UV-Aire Ballast Assembly
1-Mounting Base
1-Ultraviolet Lamp
6-Sheet Metal Mounting Screws
1-Instruction Sheet
1-Fiberglass Duct Board Mounting Bracket
1-UVC Light Shield
2-Wire Nuts
2-1/4" Male Quick Connect Terminals
2-Scotchlok Wire Taps
S Y S T E M
S Y S T E M
