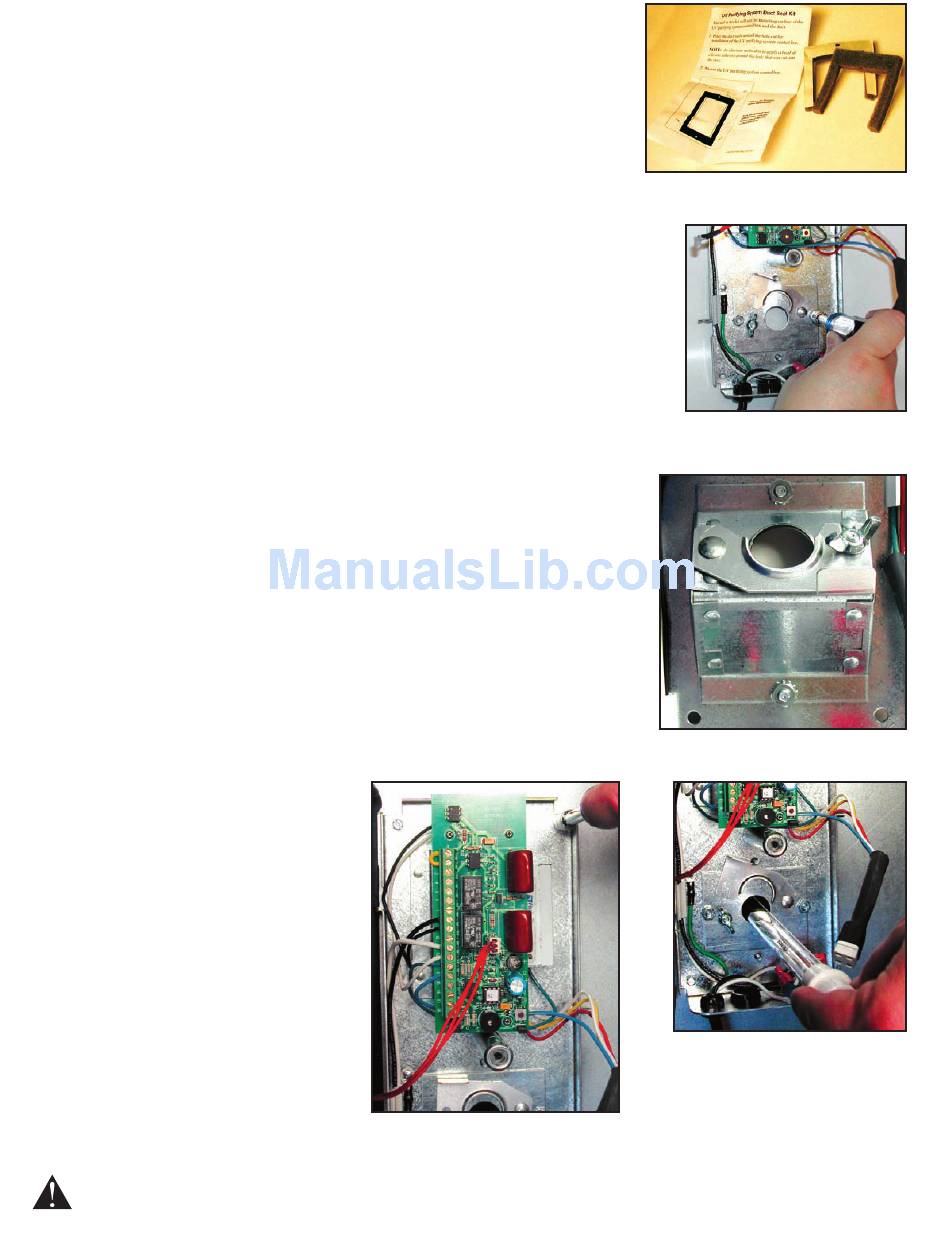

3. Remove base unit and cover from box.
4. Apply supplied Duct Seal Kit according to instructions included in kit.
(See Figure 12)
5. Determine whether to use flat or angled bracket. (Refer to Bulb
Mounting Bracket Selection)
a. Flat Bracket Installation
i. Remove the two hex nuts and flat bracket from included bagged
hardware.
ii. Install the flat bracket and secure to the unit base with the hex
nuts provided. (See Figure 13)
b. Angled Bracket Installation
NOTE: For angled bracket mounting, refer to specifications outlined
by Charts A & B for mounting distances in the Angled Lamp Mounting
Bracket Specifications.
i. Remove the two hex nuts and angled bracket from included
bagged hardware.
ii. Install the angled bracket and secure to the unit base with the
hex nuts provided. (See Figure 14)
NOTE: Be sure to note location of lamp hole in bracket relative to unit
base.
6. Mount the unit base to the duct using the four mounting screws
provided. (See Figure 15)
7. Remove tag and alcohol wipe from lamp. Wipe off lamp being sure
not to touch lamp with bare hands. The oils in your hands cause a
reduction in lamp output.
8. Insert lamp through the hole until lamp cannot be inserted any further.
(See Figure 16)
WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage or blindness.
Never operate the UV-Aire Air Purifying System out of the plenum. Avoid touching the glass portion of the lamp with your hands.
Figure 15
page 6
Figure 12
Figure 13
Figure 14
Figure 16
