Field Controls UV-AIRE UV-12C Instruction Manual page 5

IF YOU HAVE DUCT BOARD:
a. Mount the supplied metal mounting plate onto the duct with duct tape in either a vertical or

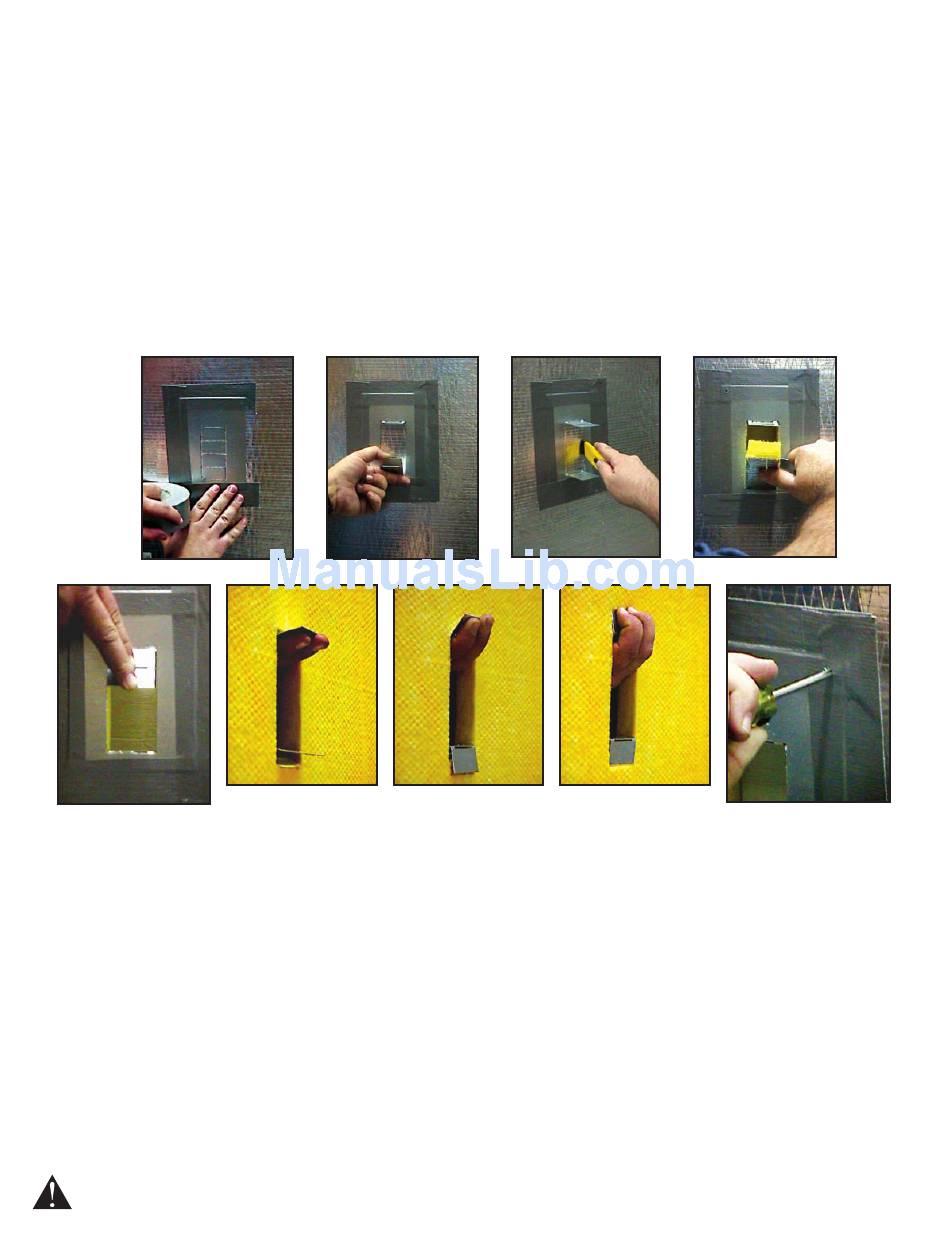

horizontal position. (See Figures 2B & 3)
b. Bend tabs outward as shown in Figure 4.
c. Using a knife or blade, cut out a rectangle opening in the duct using the mounting plate as a
template. (See Figure 5)
d. Remove the cut piece of duct. (See Figure 6)
e. Bend both tabs down and through duct at first bend point. (See Figures 7 & 8)
f. Bend both tabs at the second bend point up or down to pinch the duct material and grip the duct
material. (See Figures 9 & 10)
g. Using a screwdriver or pointed object, locate mounting holes by poking holes through the duct tape.
(See Figure 11)
Figure 7
WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage or blindness.
Never operate the UV-Aire Air Purifying System out of the plenum. Avoid touching the glass portion of the lamp with your hands.
Figure 3
Figure 8
Figure 4
Figure 9
page 5
Figure 5 Figure 6
Figure 10
Figure 11
