Assembly (continued)

Assembling Leg Stand

1. Locate the carton containing the leg stand.
Remove all parts from packing material.
2. From the bag labeled "Legs" remove the following
hardware:
22 Truss Head Screws, 1/4-20 x 1/2" long
22 Lockwashers, 1/4" External Type
22 Hex Nuts, 1/4-20
4 Leveling Feet
8 3/8-16 Hex Nut
From leg stand carton find the following:
4 Legs
2 End Stringers
2 Side Stringers
3 Leg Braces (Two Long, One Short)
3. From among the loose parts find the following:
2 Miter Gauge Storage Hooks
2 Rip Fence Storage Hooks
4. Assemble the legs as shown.
Insert the truss head screws through the holes in the
legs, then through the holes in the side and end
stringers. Attach miter gauge and rip fence storage
hooks as shown.
Legs must be assembled on top of stringers
5. Install the lockwashers. Screw on the nuts hand tight.
6. Insert the truss head screws through the holes in the
legs, then through the holes in the leg braces. Place
short leg brace on opposite side of RIDGID logo as
shown.
7. Install the lockwashers. Screw on the nuts but do not
tighten until completely assembled.
8. Install leveling feet through holes in bottom of legs as
shown. Adjust feet all the way up to bottom of leg.
9. Once you have completed the entire assembly pro-
cess, move saw to desired location and adjust the
four leveling feet to support the tool as follows:
a. With 9/16" wrench loosen bottom nut.
b. Back off top nut by hand.
c. Raise or lower foot by adjusting bottom nut using
9/16" wrench.
d. Snug top nut against inside of leg by hand.
e. Tighten all four bottom nuts using 9/16" wrench.

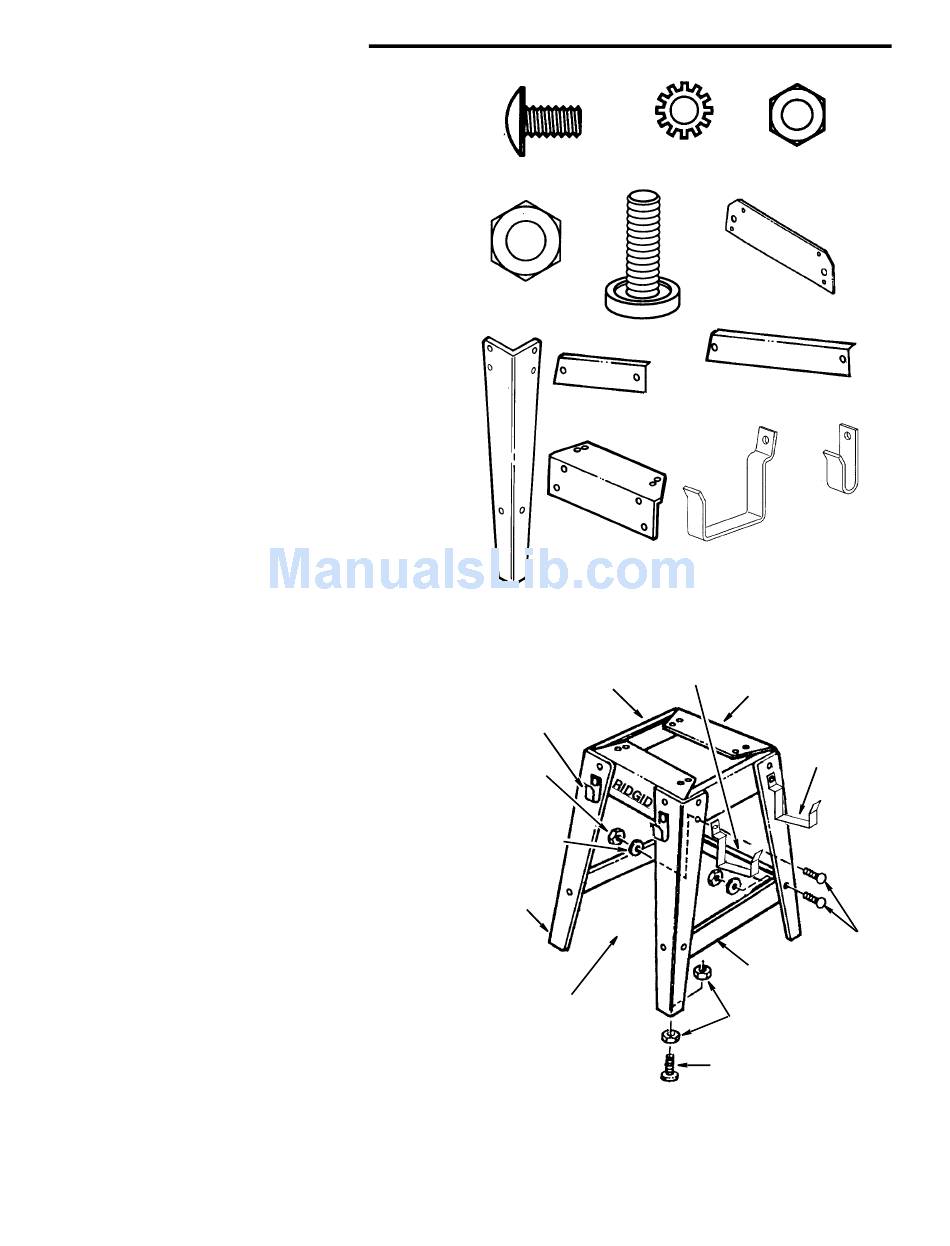

1/4-20 x 1/2 In.
Truss Head Screw
3/8 -16 Hex Nut
Leveling Foot
Leg Brace
(Short)
End
Stringers
Leg
Side Stringers
Miter Gauge
Storage Hook
1/4-20
Hex Nut
Lockwasher
Legs
Herc-U-Lift™ Caster
System Will Be
Installed Here
14
1/4-20
1/4 In. External
Hex Nut
Lockwasher
Side
Stringer
Leg Braces
(Long)
Miter Gauge
Storage Hooks
Rip Fence
Storage Hooks
Leg Brace
(Short)
End Stringers
Rip Fence
Storage Hook
Leg Brace
(Long)
3/8-16 Hex Nuts
Leveling Foot
Truss Head
Screw
