Installing Front Rip Fence Guide Bar

1. From the bag labeled "Guide Bars" remove only the fol-
lowing hardware:
5 Square Head Bolts, 5/16-18 x 1" Long
5 Lockwashers, 5/16 External Type
5 Flat Washers, 21/64 x 5/8 x 1/16
5 Hex Nuts, 5/16-18
2. From the fence guide bar carton find the following:
1 Front Guide Bar (Long)
3. Insert five 5/16-18 x 1" long square head bolts into the
holes as shown.
4. Attach flat washer, lockwasher and hex nut loosely, as
shown, so the bolt head protrudes through the front
edge of the table and extension.
5. Slide the front guide bar slot over each of the square
head bolts as shown and finger tighten the five nuts.
6. The front guide bar must be aligned left to right at this
time. Align the 7-1/8 inch mark on the right rip scale
with the right edge of the cast iron table top.
7. Push front guide bar against the saw table and exten-
sions. Finger tighten each nut on the table and exten-
sions. The guide bars will be aligned and the nuts
tightened at a later time.
WARNING: Front and rear guide bars must be
aligned with blade. Misaligned guide bars could
twist. Twisted guide bars could misalign fence. A
misaligned fence could cause binding or kickback.
You could be hit or cut.

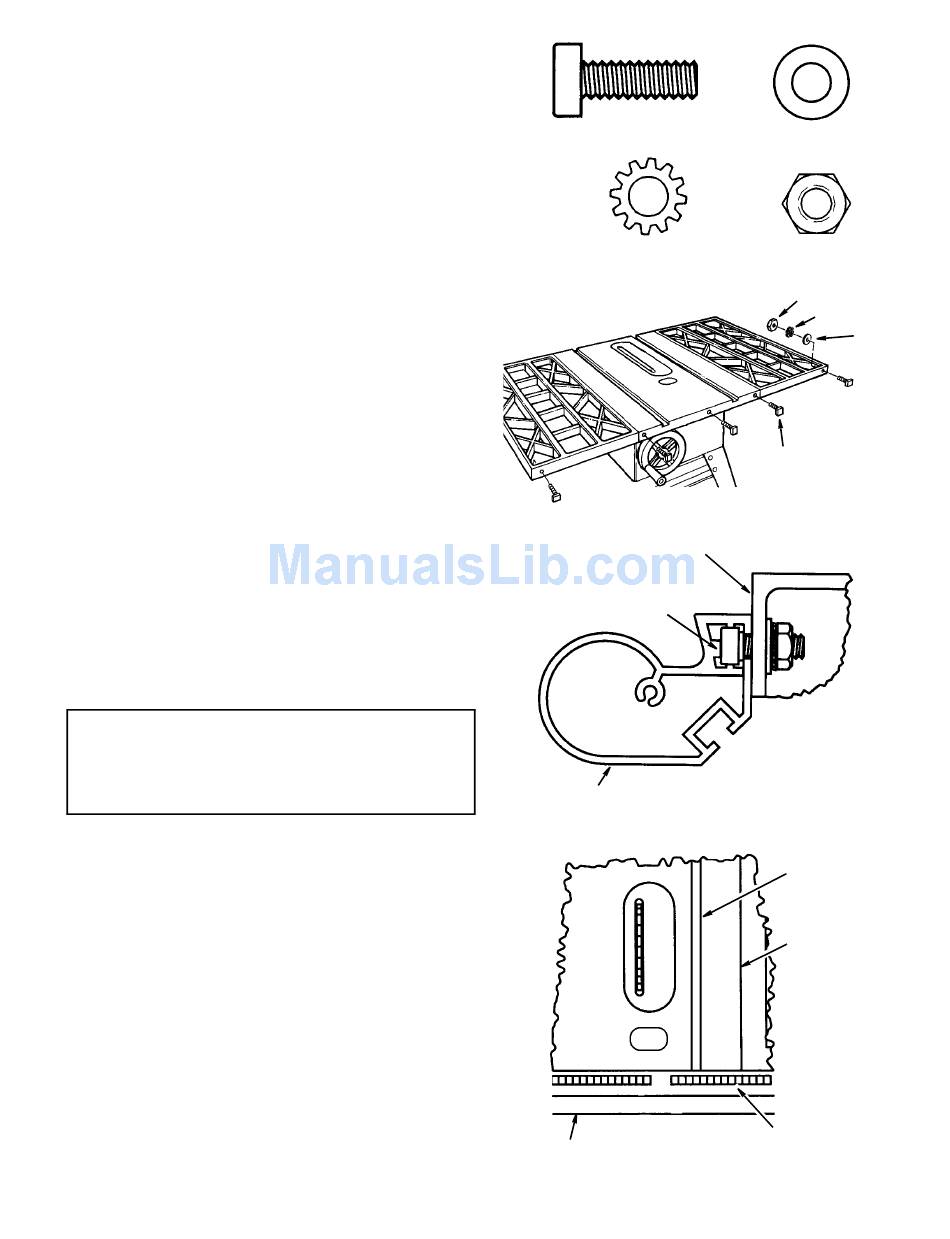

5/16-18 x 1 In.
Square Head Bolt
5/16 In. External
Lockwasher
Front of Table
Or Extension
Square Head
Bolt
Front
Guide Bar
Front
Guide Bar
25
21/64 I.D.
Flat Washer
5/16-18
Hex Nut
Hex Nut
Lockwasher
Flat
Washer
Square Head
Bolt
Miter Gauge
Groove
Right Edge
of Table
7-1/8" Mark on
Right Hand
Rip Scale
