Summary of Contents for Whirlpool YACQ088XP0

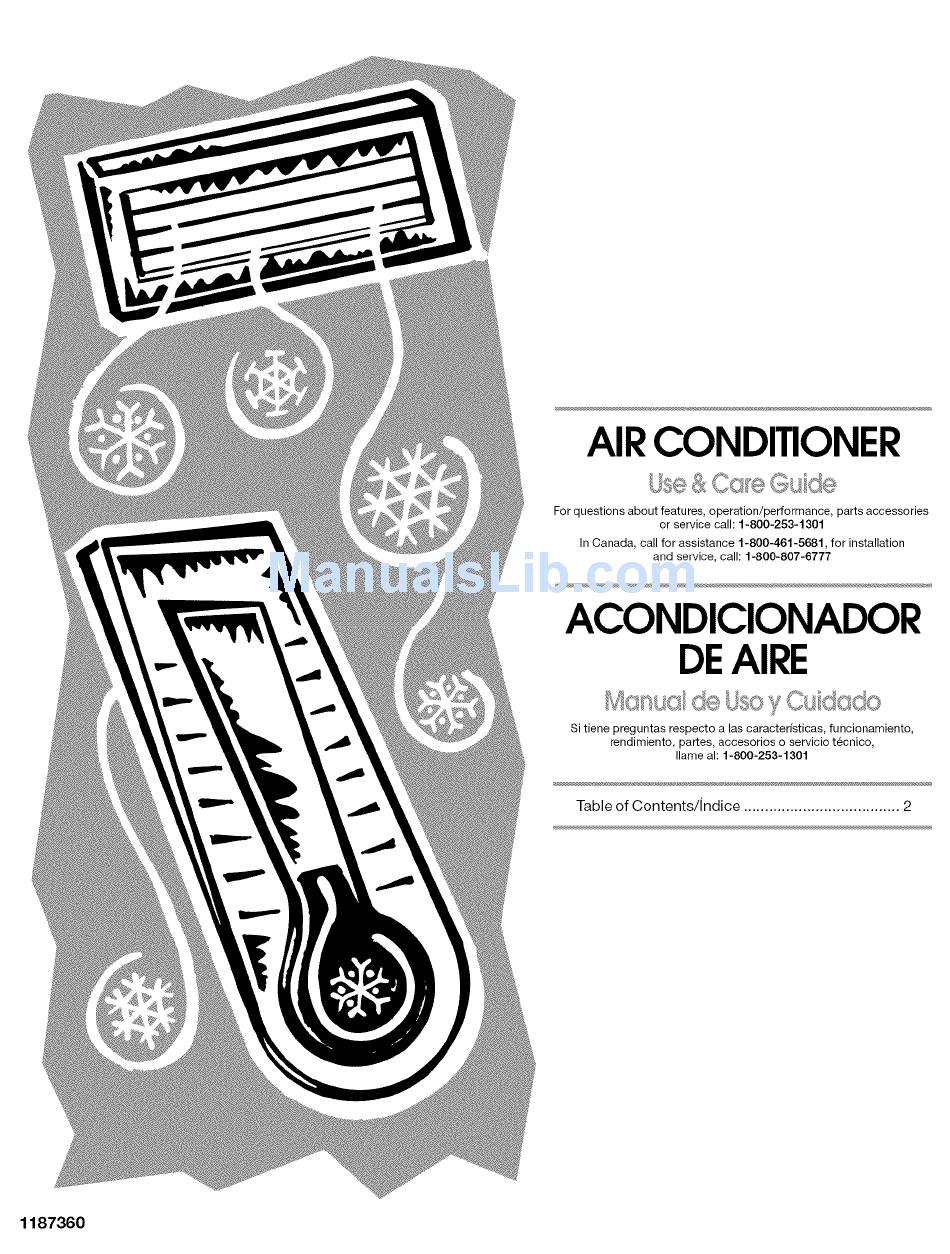

Page 1
AIR CONDITIONER For questions about features, operation/performance, parts accessories or service call: 1-800-253-1301 In Canada, call for assistance 1-800-461-5681, for installation and service, call: 1-800-807-6777 ACONDICIONADOR Si tiene preguntas respecto alas caracter[sticas, funcionamiento, rendimiento, pares, accesorios o servicio tecnico, Ilame al: 1-800-253-1301 Table of Contents/Jndice ........
TABLE OF CONTENTS INDICE AIR CONDITIONER SAFETY ............SEGURIDAD DEL ACONDICIONADOR DE AIRE ...... 15 REQUISITOS DE INSTALACION ..........INSTALLATION REQUIREMENTS ..........Tools and Parts ................Herramientas y piezas ..............Location Requirements ..............Requisitos para la ubicaci6n ............Electrical Requirements ............... Requisitos electricos ..............
AIR CONDITIONER SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word "DANGER"...
IMPORTANT: Observe all governing codes and ordinances. Check the location where the air conditioner will be installed. Proper installation is your responsibility. Make sure you have everything necessary for correct installation. The location should provide: • Grounded electrical outlet within 4 ft (122 cm) of where the power cord exits the air conditioner.
INSTALLATION INSTRUCTIONS Install side curtains NOTE: Attach curtains to unit before placing unit in window. 1. Insert curtain into curtain frame. Excessive Weight Hazard Use two or more people to move and install air conditioner. Failure to do so can result in back or other injury. Remove packaging materials...
1. Center airconditioner inwindow. Check t hat f eetonbottom NOTE: This screw isrequired tocorrectly attach c urtain ( top tobottom) totheairconditioner cabinet. ofairconditioner arebehind a ndagainst back side ofwindow sill.Lower window sash tohold cabinet inplace. 1. Window sash 2. Feet on bottom of air conditioner 1.
Check that air conditioner cabinet is tilted to the outside so 4. Insert foam seal behind the top of the lower window sash and that water will run to the outside. If cabinet is not properly against the glass of the upper window. positioned, reposition or shim cabinet to provide the proper tilt.
AIR CONDITIONERUSE Operating your air conditioner properly helps you to obtain the Choose AUTO, COOL, FAN ONLY or POWER SAVER. best possible results. • Auto - Cools room while it automatically controls fan speed. You cannot change fan speed, but you can adjust This section explains proper air conditioner operation.
Page 9
Timer delay To operate air conditioner with remote control To set the Timer for a 1 - to 24-hour delay until the air conditioner turns off (the air conditioner must be On}: 1. Press TIMER. Indicator light will flash. POWER ON/OFF Timer ®...
To select the fan speed (in Cool or Power Saver mode only): Press TURBO, HIGH or LOW. Turbo TEMPERATURE High Cooler Warmer SPEED To raise the temperature: Press the up arrow button to raise the temperature 1° until it Turbo Cool reaches 86°F (30°C).
FanSpeed Set FAN SPEED to the desired setting. When the air conditioner Roll the wheel to direct the air right or left. Rotate the whole is operating at Low Cool, High Cool, or Turbo Cool, the fan cartridge to direct air up, down or straight ahead. circulates air continuously.
AIR CONDITIONERCARE Your new air conditioner is designed to give you many years of ..dependable service. This section tells you how to clean and care for your air conditioner properly. Call your local authorized dealer for an annual checkup. Remember... the cost of this service call 1.
TROUBLESHOOTING You can solve many common air conditioner problems easily, Air conditioner cycles on and off too much or does not saving you the cost of a service call. Try the suggestions below to cool. see whether you can solve your problem without outside help. The MODE is set to POWER SAVER (on some models).
ASSISTANCE OR SERVICE For further assistance Before calling for assistance or service, please check "Troubleshooting." It may save you the cost of a service call. If If you need further assistance, you can write with any questions you still need help, follow the instructions below.
SEGURIDADDELACONDICIONADOR DEAIRE Su seguridad y la seguridad de los demas es muy importante. Hemos incluido muchos mensajes importantes de seguridad en este manual yen su electrodomestico. Lea y obedezca siempre todos los mensajes de seguridad. Este simbolo le llama la atencion sobre peligros potenciales que pueden ocasionar la muerte o una lesion a usted y a los demas.
IMPORTANTE: Observe todos los c6digos y reglamentos aplicables. Verifique el lugar donde se instalara el acondicionador de aire. La instalaci6n correcta es su responsabildad. Asegirese de que tiene todo Io necesario para una instalaci6n correcta. El lugar debe tener: • Tomacorriente puesto a tierra a 4 pies (122 cm} de la parte donde el cable electrico sale del acondicionador...
Es responsabilidad del cliente: Utilice 3 tornillos de cabeza de cono achatado #10 x % pulg. para fijar el canal superior al acondicionador de aire. • Llamar a un instalador electrico calificado. • Asegurarse de que la instalaci6n electrica sea adecuada y este hecha de acuerdo con el Cddigo Nacional Electrico, ANSI/NFPA 70, 01tima edicidn, y todos los c6digos y reglamentos locales.
5. Inserte la parte superior y luego la parte inferior del • No bloquee las rejillas que estan en el exterior del acondicionador de aire. alojamiento de la cortina derecha en las gufas superior e inferior para cortinas en del acondicionador de aire.
Vista superior Fije el soporte de seguridad de la ventana al marco de la ventana con tornillos de cabeza redonda #8 x 3/4pulg. para asegurar la ventana en su lugar. 2 ..5,...," ..3 1. Cortina lateral contra la ranura de la ventana 2.
COMO USARSUACONDICIONADOR DEAIRE Operar debidamente su acondicionador de aire le permite obtener los mejores resultados posibles. Mode (Modo) Esta secci6n le explica c6mo operar su acondicionador de aire Oprima MODE (Modo) hasta que se encienda la luz del debidamente. indicador para la posici6n que usted desea. IMPORTANTE: Seleccione AUTO (Automatico), COOL (Enfriamiento), FAN •...
Page 21
Para programar el temporizador hasta que el Temperatura acondicionador de aire se encienda para cambiar ajustes previos: • Presione el bot6n de mas para aumentar la temperatura de a 1. Encienda el acondicionador de aire. 1° hasta Ilegar a 86°F (30°C). 2.
Page 22
Para seleccionar el modo: Para poner en marcha el acondicionador de aire con el Optima AUTO COOL (Enfriamiento automatico), COOL control remoto (Enfriamiento), FAN ONLY ($61o ventilaci6n) o POWER SAVER (Ahorro de energia). • Auto Cool (Enfriamiento automatico) - la velocidad de ventilacidn se ajusta automaticamente.
Para programar el temporizador para un retardo de I a 24 horas hasta que el acondicionador de aire se apagado SPEED (el acondicionador de aire tiene que estar en el modo de TEMPERATURE Encienda): Cooler Warmer 1. Oprima TIMER. La luz del indicador en el acondicionador de aire se encendera intermitentemente.
Fan Speed (Velocidad de ventilacibn) Ponga el control de velocidad de ventilaci6n en la posici6n que Gire la rueda hacia arriba o hacia abajo para dirigir el aire hacia la desee. Cuando el acondicionador de aire esta funcionando derecha, o hacia la izquierda. Gire el cartucho completo para temperaturas Low Cool (Poco ffia), High Cool (Muy ffia) o Turbo...
COMO CUIDAR SUACONDICIONADOR DEAIRE Su nuevo acondicionador de aire esta diseRado para darle 3. Limpie el filtre de aire usando una aspiradora. Si esta muy muchos aRos de servicio confiable. Esta secci6n le da la sucio, lave el filtro de aire con agua tibia y un detergente informaci6n acerca de la limpieza adecuada y el cuidado de su suave.
Page 26
Se esta usando un fusible de retardo o un disyuntor con El filtro esta sucio u obstruido por desechos. Limpie el filtro. la capacidad incorrecta. Reemplacelo con un fusible de retarde o un disyunter con la capacidad correcta. Vea El evaporador interno y los serpentines del condensador "Requisitos...
AYUDA O SERVlCIOTECNI¢O Por favor anote la informacibn sobre su modelo. Antes de solicitar ayuda o servicio tecnico, por favor consulte la secci6n "Soluci6n de Problema." Esto le podrfa ahorrar el costo Siempre que Ilame para solicitar servicio del aparato, necesitara de una visita de servicio tecnico.
