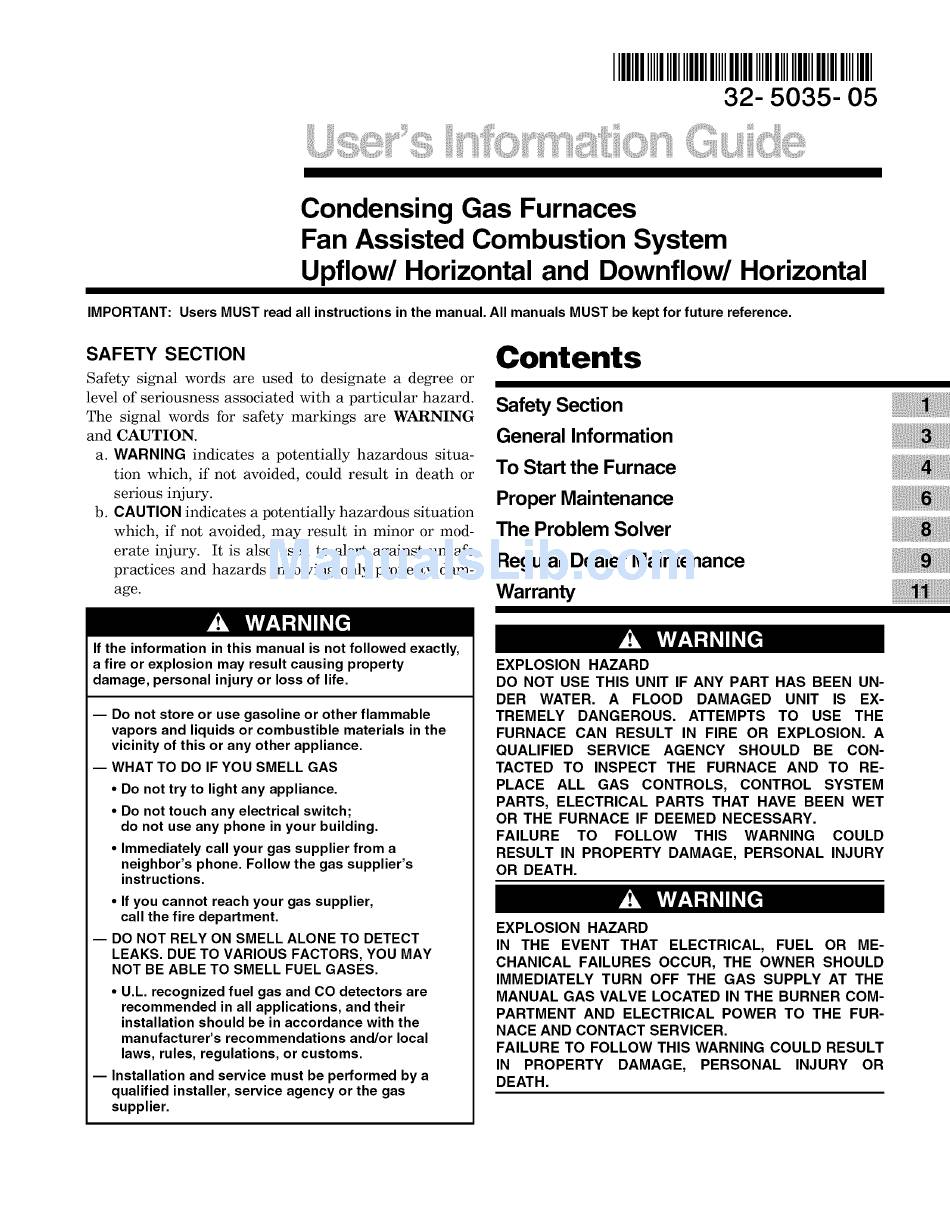

32- 5035- 05
Condensing Gas Furnaces
Fan Assisted Combustion System
Upflow/Horizontal
and Downflow/Horizontal
IMPORTANT:
Users MUST read all instructions in the manual. All manuals MUST be kept for future reference.
SAFETY
SECTION
Safety signal
words are used to designate
a degree or
level of seriousness
associated
with a particular
hazard.
The signal words for safety
markings
are WARNING
and CAUTION.
a. WARNING indicates
a potentially
hazardous
situa-
tion which, if not avoided, could result
in death
or
serious injury.
b. CAUTION indicates
a potentially
hazardous
situation
which, if not avoided, may result
in minor or mod-
erate injury.
It is also used to alert against
unsafe
practices
and hazards
involving
only property
dam-
age.
Contents
Safety Section
General Information
To Start the Furnace
Proper Maintenance
The Problem Solver
Regular Dealer Maintenance
Warranty
If the information in this manual is not followed exactly,
a fire or explosion may result causing property
damage, personal injury or loss of life.
-- Do not store or use gasoline or other flammable
vapors and liquids or combustible
materials in the
vicinity of this or any other appliance.
-- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your building.
• Immediately call your gas supplier from a
neighbor's
phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier,
call the fire department.
-- DO NOT RELY ON SMELL ALONE TO DETECT
LEAKS. DUE TO VARIOUS FACTORS, YOU MAY
NOT BE ABLE TO SMELL FUEL GASES.
• U.L. recognized fuel gas and CO detectors are
recommended
in all applications, and their
installation should be in accordance
with the
manufacturer's
recommendations
and/or local
laws, rules, regulations, or customs.
-- Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
EXPLOSION HAZARD
DO NOT USE THIS UNIT IF ANY PART HAS BEEN UN-
DER WATER. A
FLOOD
DAMAGED
UNIT
IS EX-
TREMELY
DANGEROUS.
ATTEMPTS
TO USE
THE
FURNACE CAN RESULT IN FIRE OR EXPLOSION. A
QUALIFIED
SERVICE
AGENCY
SHOULD
BE
CON-
TACTED TO INSPECT THE FURNACE AND TO RE-
PLACE ALL
GAS CONTROLS,
CONTROL
SYSTEM
PARTS, ELECTRICAL PARTS THAT HAVE BEEN WET
OR THE FURNACE IF DEEMED NECESSARY.
FAILURE
TO
FOLLOW
THIS
WARNING
COULD
RESULT IN PROPERTY DAMAGE, PERSONAL INJURY
OR DEATH.
EXPLOSION HAZARD
IN THE EVENT THAT ELECTRICAL, FUEL OR ME-
CHANICAL FAILURES OCCUR, THE OWNER SHOULD
IMMEDIATELY TURN OFF THE GAS SUPPLY AT THE
MANUAL GAS VALVE LOCATED IN THE BURNER COM-
PARTMENT AND ELECTRICAL POWER TO THE FUR-
NACE AND CONTACT SERVICER.
FAILURE TO FOLLOW THIS WARNING COULD RESULT
IN PROPERTY
DAMAGE,
PERSONAL
INJURY
OR
DEATH.
