Summary of Contents for Trane XR95

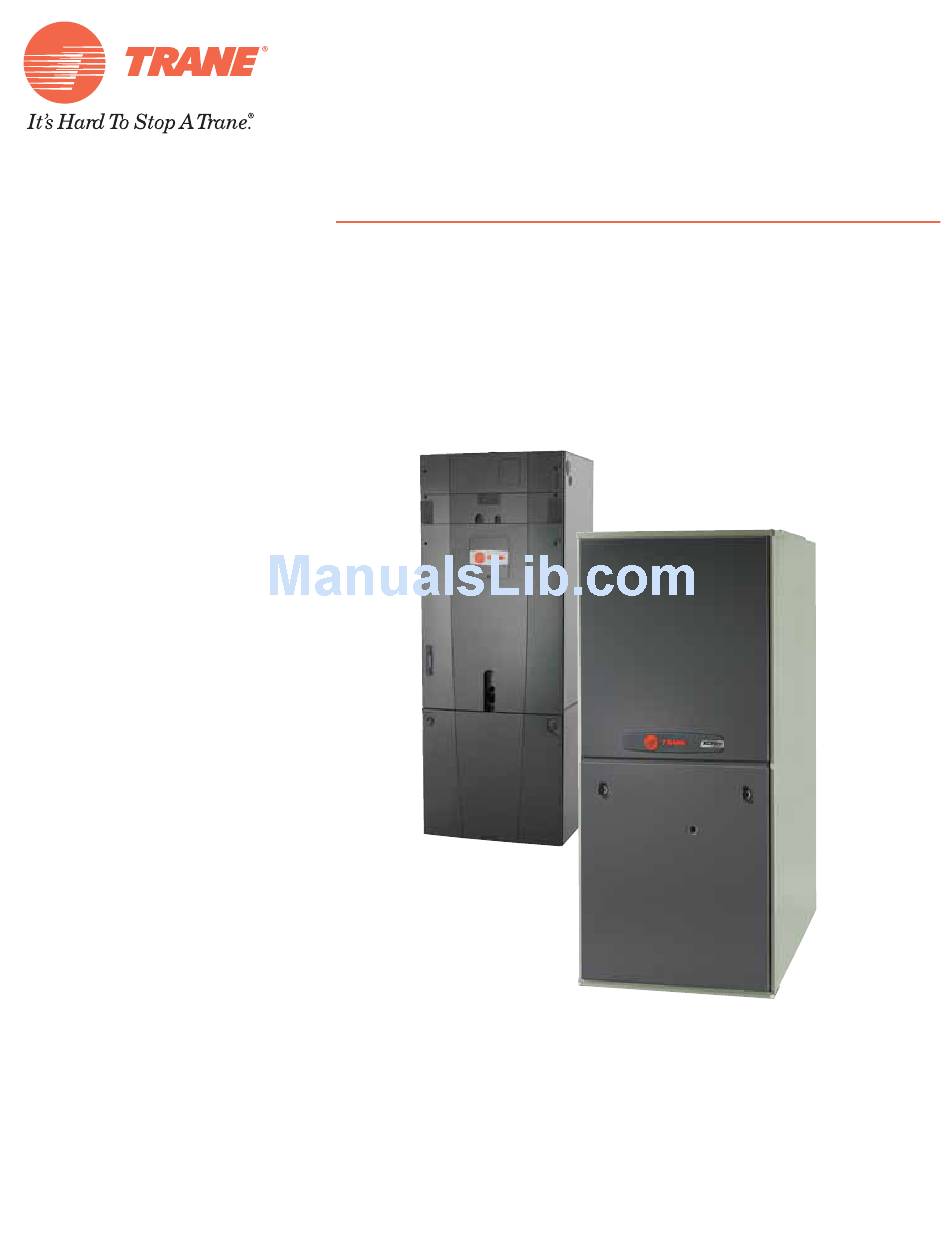

- Page 1 Owner's Guide Indoor Units: Air Handlers Gas Furnaces 32-5064-WEB01...
- Page 2 Proper Maintenance – Air Handlers Don’t waste money heating and cooling when you don’t need to. To prevent injury or death, or property damage, read and follow all When you’re going to be away from home for a few days – instructions and warnings, including labels shipped with or attached to unit before operating your new air conditioning system.
- Page 3 The Problem Solver – Air Handlers Before you call for service, check the following: Problem Possible cause Possible Remedy Insufficient heating or cooling 1. Dirty filters 1. Clean or replace 2. Air not circulating freely 2. Check supply registers and return grills for blockage 3.
- Page 4 Limited Warranty Information...
- Page 5 Safety Section – Gas Furnaces IMPORTANT: Users MUST read all instructions in the manual. All manuals MUST be kept for future reference. FIRE OR EXPLOSION HAZARD EXPLOSION HAZARD If the information in this manual is not followed exactly, a fire or In the event that electrical, fuel or mechanical failures occur, explosion may result causing property damage, personal injury shut off the gas supply at the manual gas shut off valve, located...
- Page 6 Safety Section – Gas Furnaces BURN HAZARD CARBON MONOXIDE HAZARD Do not attempt to manually light the furnace. Failure to follow For proper and safe operation of the furnace, air for combustion this warning could result in property damage, personal injury and ventilation must be provided.
-
Page 7: Air Filters
Proper Maintenance – Gas Furnaces Air Filters Clean the filter once a month for optimum performance. A slid all the way into the filter rack. Replace blower access door. A monthly visual inspection of the furnace is also recommended. bottom return air inlet as shown features a 17" x 25" x 1" filter in See General Inspection on page 9, number 1. - Page 8 Proper Maintenance – Gas Furnaces Air filters may also be located A downflow/horizontal furnace return air filter application, as outside of the furnace using a shown, features two 14" x 20" x 1" filters in the 17-1/2" wide remote filter grille. The filter grille furnace cabinets;...
-
Page 9: Regular Dealer Maintenance
Regular Dealer Maintenance For regular dealer maintenance please refer to 1. GENERAL INSPECTION – Examine the furnace installation www.acca.org/industry/quality for the following items: To ensure proper operation of your fur nace, the a. All flue product carrying areas external to the furnace recommended dealer inspection is once a year, before the (i.e. - Page 10 Regular Dealer Maintenance 4. BURNER – Gas burners do not normally require scheduled 6. CIRCUIT PROTECTION – If blower or gas valve fail to servicing, however, accumulation of foreign material operate, the cause could be the circuit breaker or a loose may cause a yellowing flame or delayed ignition.
- Page 11 Limited Warranty Information...
-
Page 12: Service Information
Important Product Information Thank you for purchasing Trane home comfort products. Registering your products helps us provide you with one of the strongest manufacturer limited warranties available. Product registration can be completed either online at Trane.com or by calling 800-554-6413. You will need the serial number, model number, and installation date for each product being registered. Your dealer may have included these on your invoice or can provide a list for you to use.
