- Page 1 TUX-D-2 Upflow/Horizontal Left Downflow/Horizontal Right Condensing, Direct Vent Gas-Fired Furnace XR 90 TUX040,060,080,100,120C TDX040,060,080,100,120C Single-Stage Fan Assisted Combustion System PUB. NO. 22-1674-04-0803 (EN)
-
Page 2: General Features
General Features NATURAL GAS MODELS AIR DELIVERY Central Heating furnace designs are The four speed, direct drive blower certified by the American Gas Association motor, has sufficient airflow for most for both natural and L.P. gas. Limit heating and cooling requirements, will setting and rating data were established switch from heating to cooling speeds on and approved under standard rating... -
Page 3: Table Of Contents
Features and Benefits Contents XR 90 Standard Equipment General Features • Power supply 115/1/60 Features and Benefits • Convertible to horizontal left • Type 29-4C™ stainless steel second- XR 90 Standard Equipment ary heat exchanger XR 90 Optional Equipment • Inner blower doors •... -
Page 4: Xr 90 Optional Equipment
Features and Benefits XR 90 Optional Equipment Thermostat, Mechanical Heating Only Without Fan Switch ..................BAYSTAT388 [ ] Thermostat, Mechanical Heating Only With Fan Switch ................... BAYSTAT303 [ ] Thermostat, Heating/Cooling Single Stage (Mounts Horizontally) ................AY28X092 [ ] Thermostat, Heating/Cooling Single Stage (Mounts Vertically) ................BAYSTAT305 [ ] Thermostat, Electronic Programmable 1-Stage Heating/1-Stage Cooling .............. -
Page 5: General Data
General Data Product Specifications MODEL TUX040C924D TUX060C936D TUX080C942D TUX080C960D TYPE Upflow / Horizontal Upflow / Horizontal Upflow / Horizontal Upflow / Horizontal RATINGS 2 Input BTUH 40,000 60,000 80,000 80,000 Capacity BTUH (ICS) 3 38,000 56,000 74,000 74,000 AFUE (ICS) 92.0 92.0 92.0... -
Page 6: Tux100C948D
General Data Product Specifications MODEL TUX100C948D TUX100C960D TUX120C960D TYPE Upflow / Horizontal Upflow / Horizontal Upflow / Horizontal RATINGS 2 Input BTUH 100,000 100,000 120,000 Capacity BTUH (ICS) 3 93,000 93,000 113,000 AFUE (ICS) 92.0 92.0 92.0 Temp. rise (Min.-Max.) °F. 35 - 65 35 - 65 40 - 70... -
Page 7: Tdx040C924D
General Data Product Specifications MODEL TDX040C924D TDX060C936D TDX080C942D TYPE Downflow / Horizontal Downflow / Horizontal Downflow / Horizontal RATINGS 2 Input BTUH 40,000 60,000 80,000 Capacity BTUH (ICS) 3 38,000 56,000 74,000 AFUE (ICS) 91.0 91.0 91.0 Temp. rise (Min.-Max.) °F. 30 - 60 30 - 60 35 - 65... -
Page 8: Tdx100C948D
General Data Product Specifications MODEL TDX100C948D TDX120C960D TYPE Downflow / Horizontal Downflow / Horizontal RATINGS 2 Input BTUH 100,000 120,000 Capacity BTUH (ICS) 3 94,000 110,000 AFUE (ICS) 91.0 91.0 Temp. rise (Min.-Max.) °F. 35 - 65 40 - 70 BLOWER DRIVE DIRECT DIRECT... -
Page 9: Performance Data
Performance Data FURNACE AIRFLOW (CFM) VS. EXTERNAL STATIC PRESSURE (in. w.c.) MODEL SPEED TAP 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 HIGH - Black 1043 MED.-HIGH - Blue TUX040C924D MED.-LOW - Yellow LOW - Red HIGH - Black 1394 1359 1314... - Page 10 Performance Data FURNACE AIRFLOW (CFM) VS. EXTERNAL STATIC PRESSURE (in. w.c.) MODEL SPEED TAP 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 HIGH - Black MED.-HIGH - Blue TDX040C924D MED.-LOW - Yellow LOW - Red HIGH - Black 1487 1425 1362 1286...
-
Page 11: Electrical Data
Electrical Data From Dwg. D341852 Rev. 1 22-1674-04-0803 (EN) - Page 12 Electrical Data From Dwg. D341854 Rev. 1 22-1674-04-0803 (EN)
-
Page 13: Field Wiring
Field Wiring FIELD WIRING DIAGRAM FOR 1 STAGE FURNACE 1 STAGE HEATING USING A 1 STAGE HEATING THERMOSTAT NO COOLING FURNACE NOTE 7 TWIN NOTE 6 TO 115 V 1 PH., 60 HZ., POWER SUPPLY PER LOCAL CODES HUM SEE NOTE 5 EAC SEE NOTE 5... -
Page 14: Twinning Field Wiring
Twinning Field Wiring TWINNING CONNECTION DIAGRAM FOR TWINNING 1 STAGE FURNACES WITH SINGLE WIRE TWINNING FEATURE 1 STAGE HEAT 1 STAGE HEATING ONLY THERMOSTAT ONLY THERMOSTAT (WITH FAN SWITCH) FURNACE NO. 1 FURNACE NO. 2 BLOWER OPERATION OF UNIT NO. 2 IS SYNCRONIZED WITH UNIT NO. -
Page 15: Dimensions
Dimensions TUX-C-D Outline Drawing (ALL DIMENSIONS ARE IN INCHES) MODEL TUX040C924 TUX060C936 17-1/2" 2-1/4" 16-1/4" 16" 7-1/2" 2" TUX080C942 TUX080C960 21" 2-1/2" 19-3/4" 19-1/2" 9" 3" TUX100C948 TUX100C960 24-1/2" 2-15/16" 23-1/4" 23" 10" 3" TUX120C960 From Dwg. 21C340574 Rev. 12 22-1674-04-0803 (EN) -
Page 16: Dimensions
PL-UN-FURN-TUX-D-2 08/03 Supersedes TUX-D-1 06/02 Stocking Location PI Louisville Trane A business of Trane has a policy of continuous product and product data improvement and it reserves the right to change American Standard Companies www.trane.com design and specifications without notice.
Need help?
Do you have a question about the XR 90 SERIES and is the answer not in the manual?
Questions and answers
Does XR90 gas furnace have a bug screen on burner inlet air?
The provided information does not mention a bug screen on the burner inlet air for the Trane XR 90 Series gas furnace. Therefore, it cannot be determined from the given context.
This answer is automatically generated

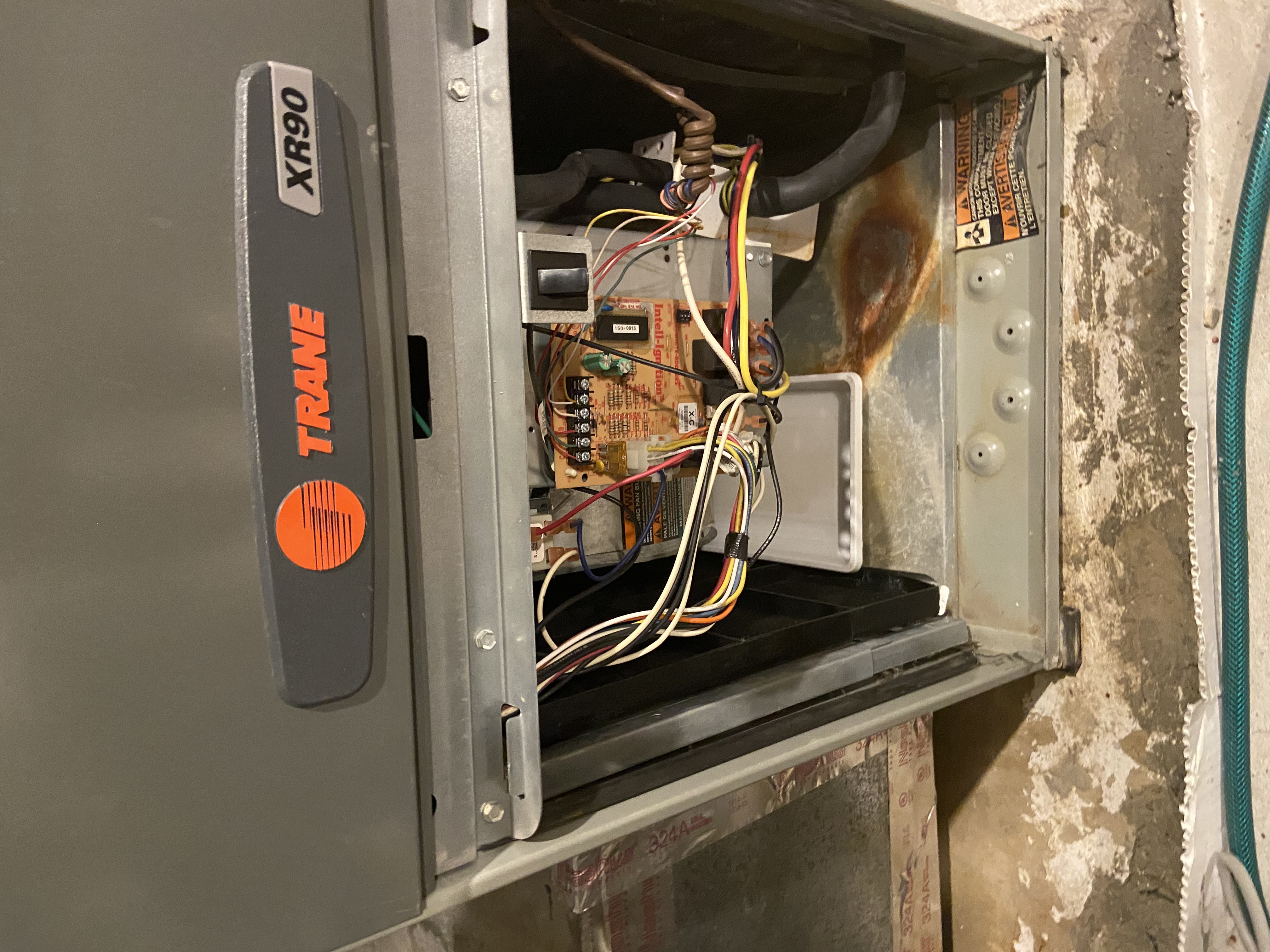

Water leaking out of furnace inside unit out of blower unit

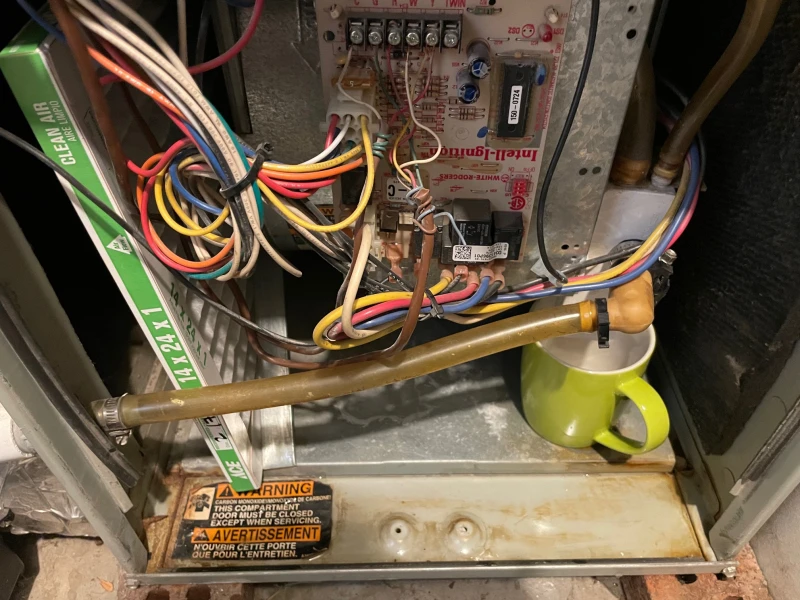

Where do I get a replacement condensation drain hose ?
