Hybrid Mini-PCI TV Tuner Module

A CD containing drivers, software and a user guide will be supplied if your purchase
configuration includes the optional Hybrid (Analog & Digital) Mini-PCI TV Tuner
module.
The optional TV Tuner allows you to watch TV, play music CDs, video conference
and capture still images and video on your PC.
The two CATV antenna jacks and S-Video-In jack will only be enabled when
the TV Tuner module is installed. Make sure you install any software before
connecting the TV antenna.
1
3
2
1. Consumer IR Transceiver
2. S-Video-In Jack
3. Jacks
2 * CATV-In (Coaxial)
(Note: You can use one of the CATV-In jacks
to connect a CATV cable, and the other to con-
nect a Digital Aerial.)

Hybrid Mini-PCI TV Tuner Module 7 - 15

Modules
CATV Cable Safety
Make sure that your
CATV system installer
has connected the Co-
axial cable shield to the
grounding system of the
building, as close to the
point of cable entry as
practical.
TV Tuner Remote
Point the remote at the
consumer IR transceiv-
er to change channels
etc.

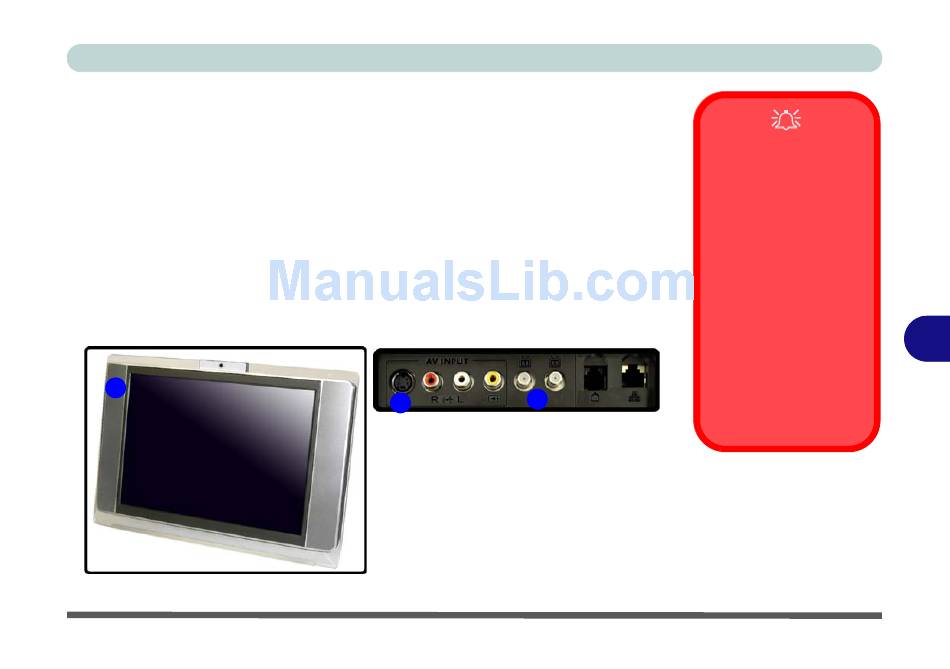

Figure 7 - 11
TV Tuner
Ports/Jacks
7
