ExpressCard Slot

The computer is equipped with an ExpressCard/34/54 slot that reads Express Card/
34 and ExpressCard/54 formats. ExpressCards are the successors to PCMCIA (PC
Cards).
ExpressCard/54 is used for applications which
require a larger interface slot, e.g. CompactFlash
card reader. The number denotes the card width;
54mm for the Express Card/54 and 34mm for the
ExpressCard/34. Make sure you install the Card
Reader driver (see "ExpressCard/Card Reader"
on page 4 - 6).
Inserting and Removing Express-
Cards
• Align the ExpressCard with the slot and push
it in until it locks into place.
• To remove an ExpressCard, simply press the
card to eject it.
Features & Components
ExpressCard Slot
Make sure you keep the
cover in the Express-
Card slot when not in
use. This will help pre-
vent foreign objects and/
or dust getting in to the
ExpressCard Slot.
1
1
ExpressCard Slot
1
1.
ExpressCard Slot 2 - 7
2

Cover

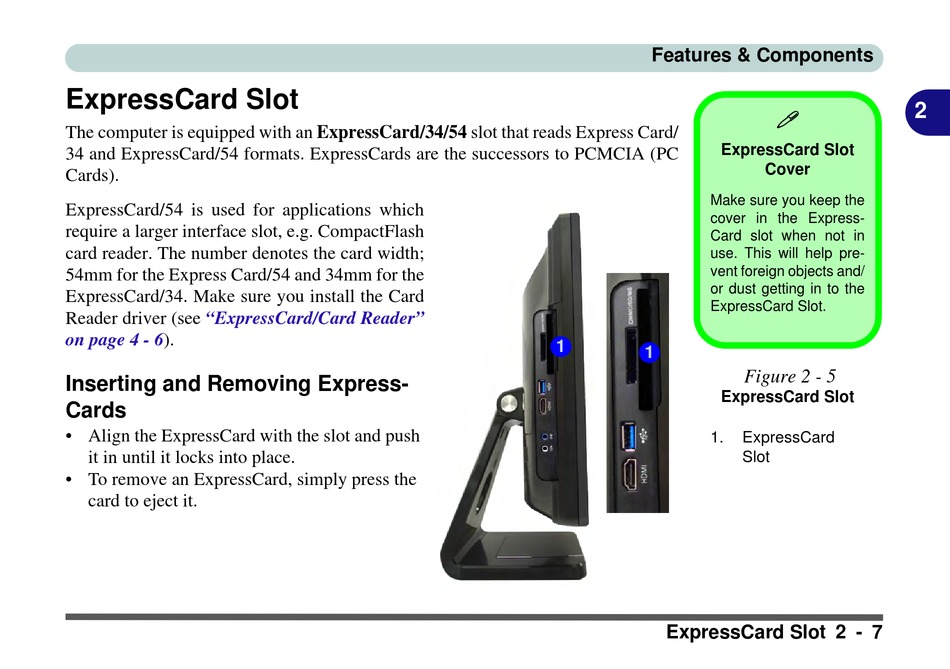

Figure 2 - 5
ExpressCard
Slot
