EUROCOM Multimedia PC User Manual page 135

6. Click Advanced (tab).
7. Scroll down to the bottom of the Property menu and click to select each of the values listed below.
Property Item Settings for Wake On LAN
Set each of the following Property items to En-
abled.
Item:
• Wake on Connect
• Wake on Link Raised
• Wake on Magic Packet
• Wake on Pattern Match
• Wakeup from Shutdown
8. Click to select Enabled for each Property item from the drop-down Value menu.
9. Click OK to close the menu.
10. Close the Computer Management control panel.

Setting:
Enabled
Enabled
Enabled
Enabled
Enabled

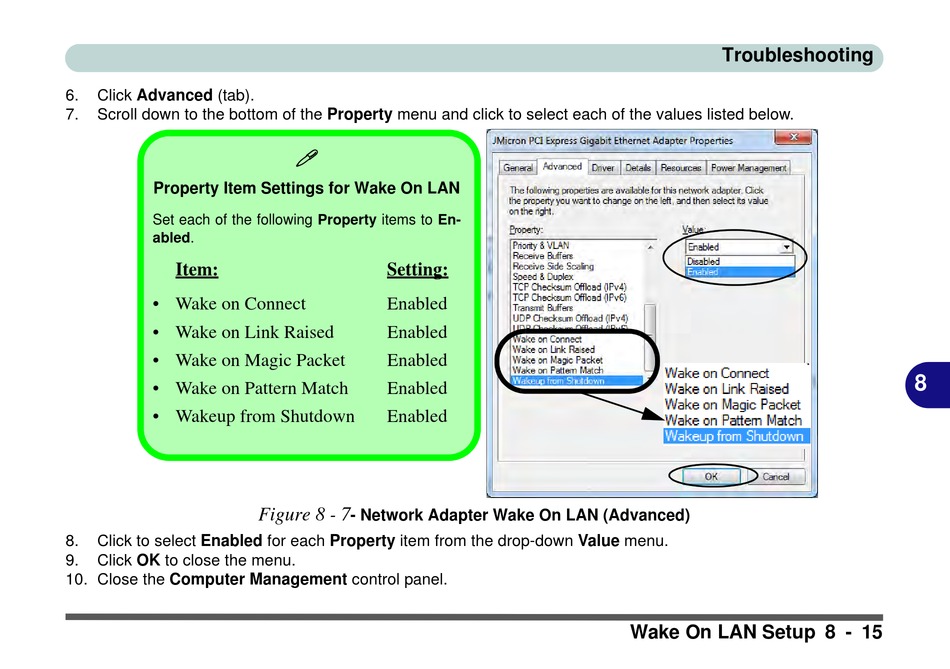

Figure 8 - 7
- Network Adapter Wake On LAN (Advanced)
Troubleshooting
Wake On LAN Setup 8 - 15
8
