Euphonix Version 3 Supplement to the R-1 Operation Manual
The R-1 creates multichannel files from its linked channel recordings. Imported source
files and exported target files can be located on the R-1's local drive, an optional random
access SCSI drive attached to the R-1's port, or a networked storage device attached to
the R-1's built-in Ethernet port.
To facilitate the R-1's use as a 24-bit/96 kHz mastering recorder, version 3 allows direct
transfer of multichannel BWAV files to a DVD authoring system.
3.2.1

Export from the Directory Software Panel

In the Audio Browser, select either Media or Libraries. Then select a Disk drive or Li-
brary in the Tree Panel to see its Sound File contents. Using the Media display mode
allows retrieving sounds from a disk drive regardless of the associated Title, while the
Library mode retrieves sounds from a particular Title regardless of its location. Note
that after selecting a sound file, the Audio Browser Copy To button changes to Export.

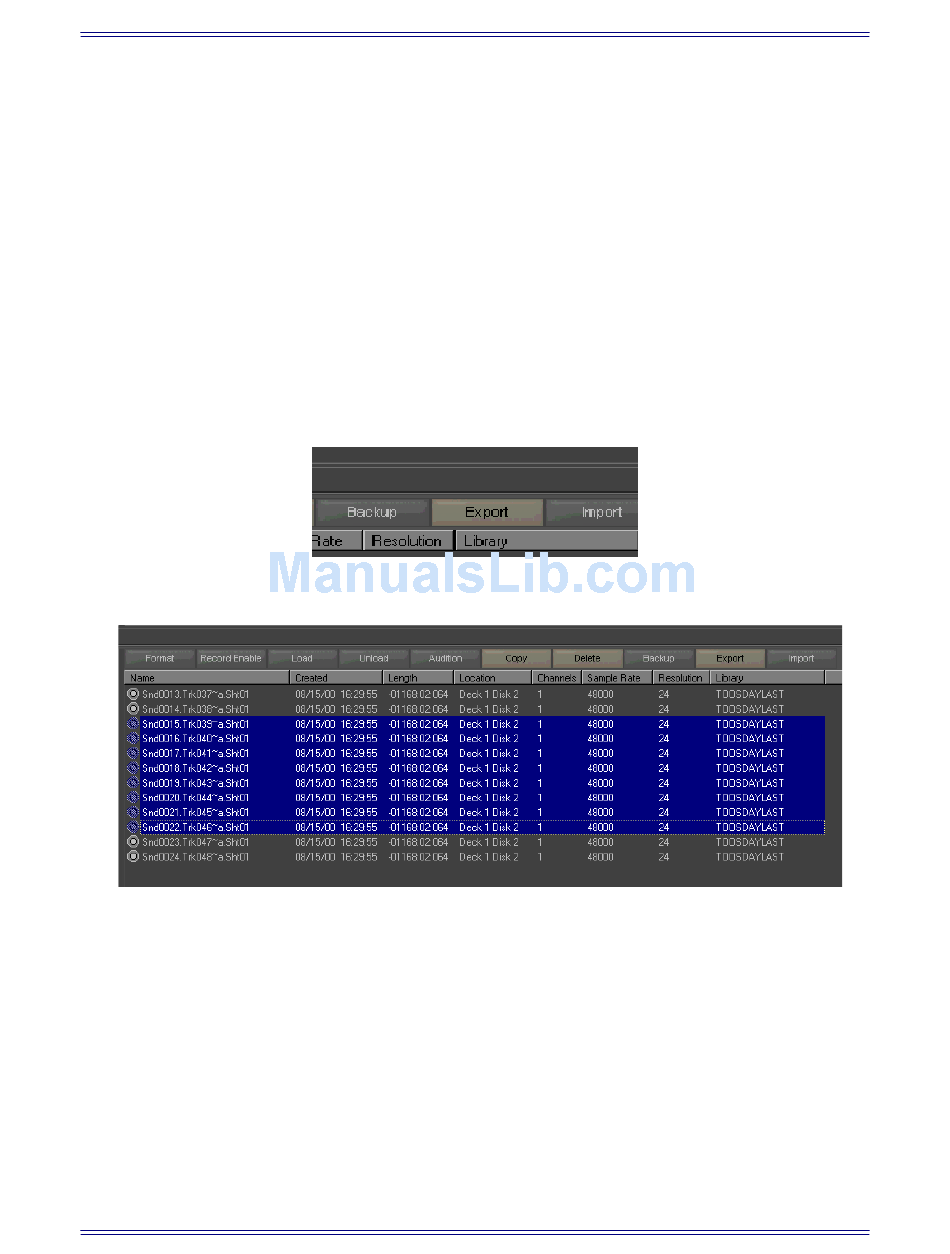

Figure 3-1 Export button illuminates when Sound File is selected
In the Audio Browser, multiple Sound Files can be included in the Export command:
1. Click on a Sound File.
2. Press the Ctrl key and click on additional Sound Files.
Figure 3-2 Multi-selecting Sound Files for Export
27
File Management
