Euphonix Version 3 Supplement to the R-1 Operation Manual
Edit Configuration
Click on the Edit Configuration tab to begin building a configuration. Under the head-
ing All other MADI Device, make sure all system components are listed and that the
Studio Hub is listed with the correct size. Highlight and delete unnecessary compo-
nents. Add a new component by pressing the New button and selecting R-1 and MADI
devices from the dialog box that appears.
Next, define how the MADI ports of each device are connected to each other. This rep-
licates your MADI connections on the rear of the R-1. For example:
1. Under Studio Hub Inputs, select MADI In #1.
2. Under All Other MADI Devices, select MADI Out #1 of the Analog to MADI
(AM 713)#1.
3. Click Define Studio Hub Connection to confirm the selections.
When selecting from the All Other MADI Devices, you will need to expand the list of
components to see types of connections available. For instance if you click on the + next
to Audio Deck you will see its Inputs and Outputs. Expand the Outputs to see the two
different outputs available.

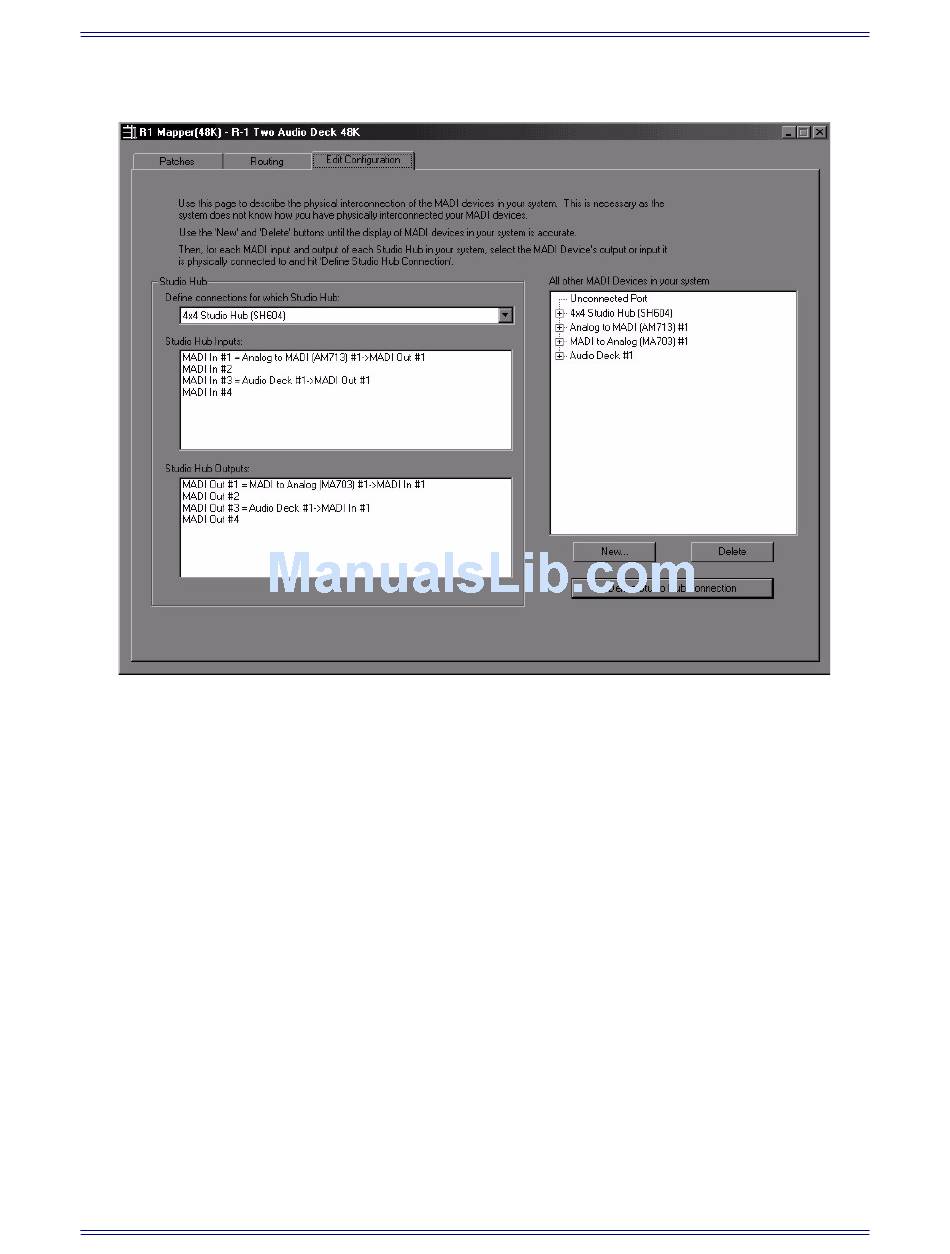

Figure 1-1 Router App: Edit Configuration Dialog
11
Overview of Version 3
