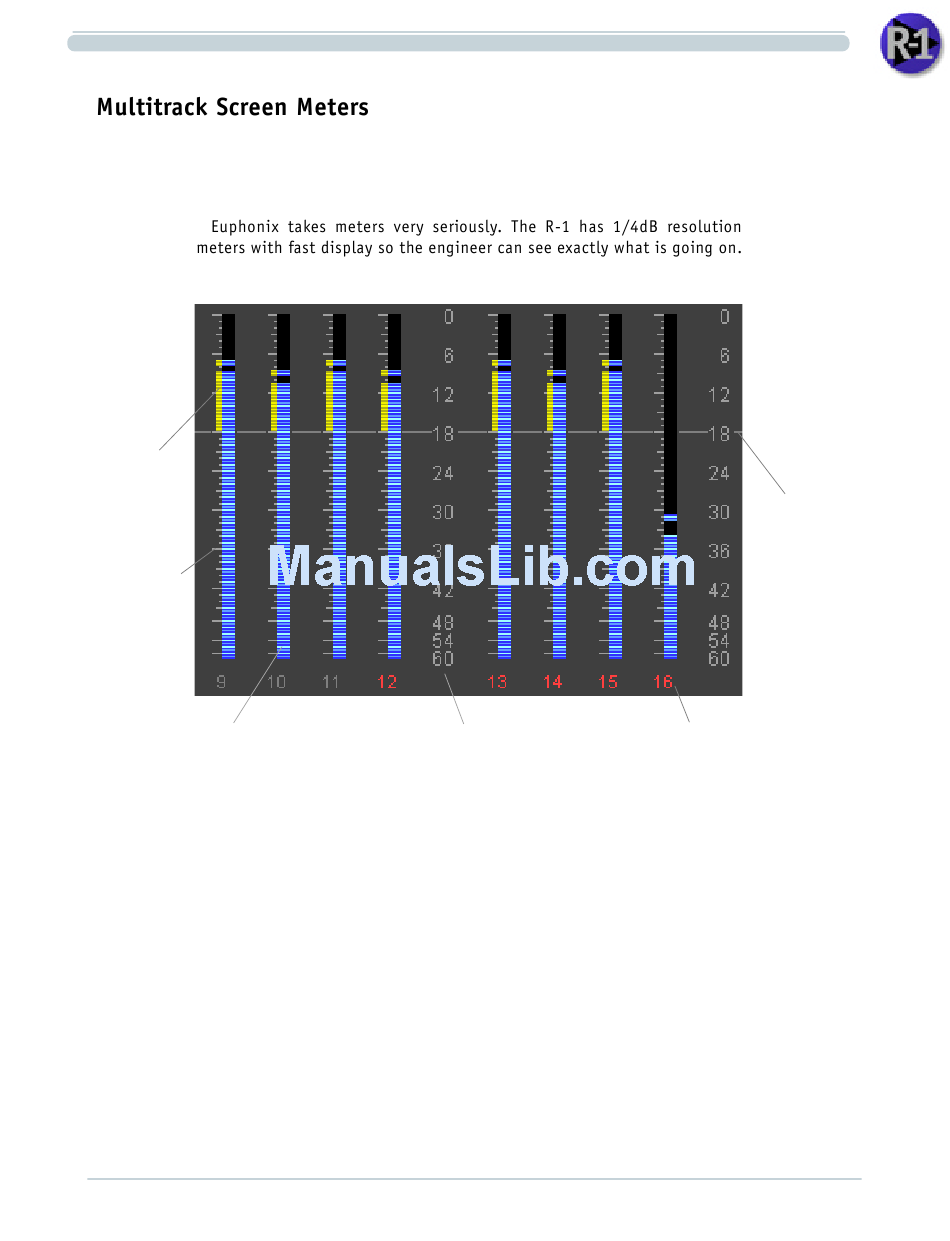

Screen Display Panels
Headroom
Bar
1 dB ticks
3 color meter bar:
• 1/4 db resolution
• Light Blue every dB mark
• Mid Blue at every 1/2dB mark
• Dark Blue at every 1/4, 3/4
mark
Page 54
The scale shows over 60dB
of dynamic range with a 1/
4dB resolution linear
response from 0-45dB.
Headroom line
This sets the
headroom point.
The headroom
indication bar
starts at this
value down from
peak.
Rec Ready
Indication
