CONNECTING YOUR
VCR
Refer to these pages to help you connect your VCR.

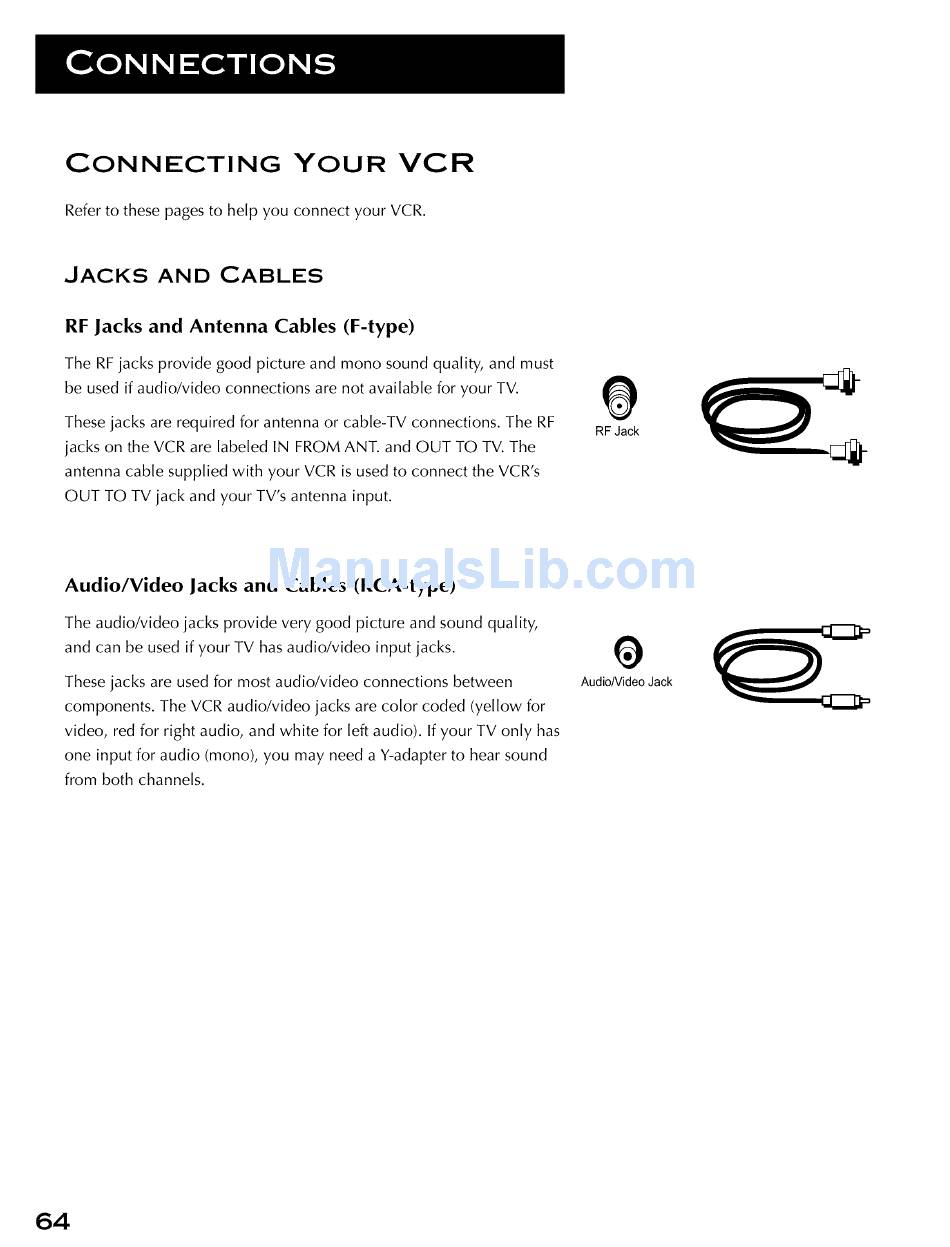

JACKS AND CABLES
RF Jacks and Antenna Cables (F-type)
The RF jacks provide good picture and mono sound quality, and must
be used if audio/video connections are not available for your TV.
These jacks are required for antenna or cable-TV connections. The RF
jacks on the VCR are labeled IN FROM ANT. and OUT TO TV. The
antenna cable supplied with your VCR is used to connect the VCR's
OUT TO TV jack and your TV's antenna input.
O
RF Jack
Audio/Video Jacks and Cables (RCA-type)
The audio/video jacks provide very good picture and sound quality,
and can be used if your TV has audio/video input jacks.
These jacks are used for most audio/video connections between
components. The VCR audio/video jacks are color coded (yellow for
video, red for right audio, and white for left audio). If your TV only has
one input for audio (mono), you may need a Y-adapter to hear sound
from both channels.
Audio/Video Jack
64
