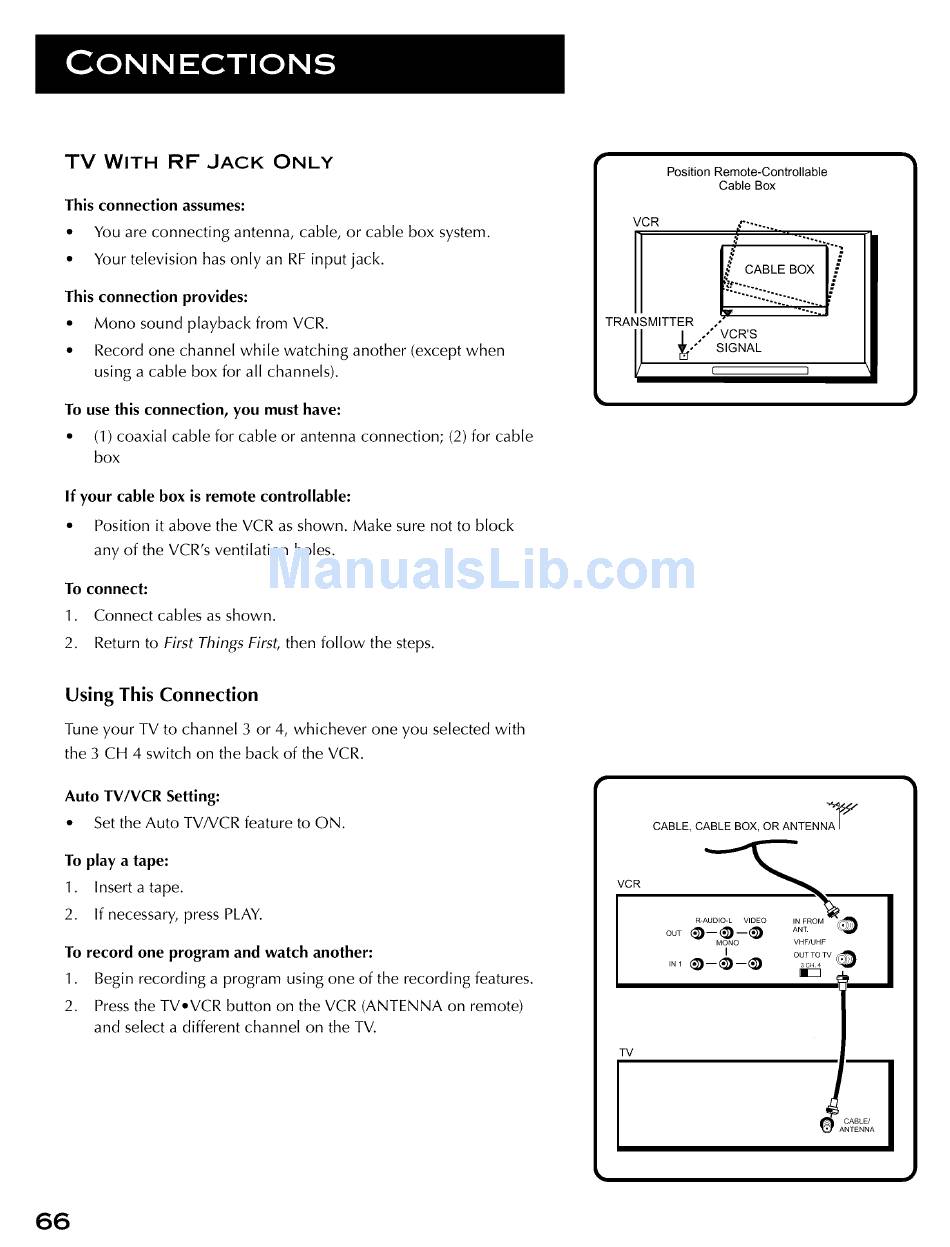

TV WITH RF
JACK ONLY
This connection assumes:
• You are connecting antenna, cable, or cable box system.
• Your television has only an RF input jack.
This connection provides:
• Mono sound playback from VCR.
• Record one channel while watching another (except when
using a cable box for all channels).
To use this connection, you must have:
• (1) coaxial cable for cable or antenna connection; (2) for cable
box
If your cable box is remote controllable:
• Position it above the VCR as shown. Make sure not to block
any of the VCR's ventilation holes.
To connect:
1. Connect cables as shown.
2. Return to First Things First, then follow the steps.
Using This Connection
Tune your TV to channel 3 or 4, whichever one you selected with
the 3 CH 4 switch on the back of the VCR.
Auto TV/VCR Setting:
• Set the Auto TVNCR feature to ON.
To play a tape:
1. Insert a tape.
2. If necessary, press PLAY.
To record one program and watch another:
1. Begin recording a program using one of the recording features.
2. Press the TV•VCR button on the VCR (ANTENNA on remote)
and select a different channel on the TV.
66
VCR
Position Remote-Controllable
Cable Box
TRANSMITTER
/ o'" VCR'S
_,'° SIGNAL
VCR
TV
t ."
I_ CABLEBOXI"
::::::::::::::::::::::::
so
[ I
CABLE, CABLE BOX, OR ANTENNA
R-Aoo,o-L v,oEo ,N_O>_)
O0T @--_)--_
MONO VHF/UHF
I
OUT TO TV (_
re
CABLE/
NTENNA
