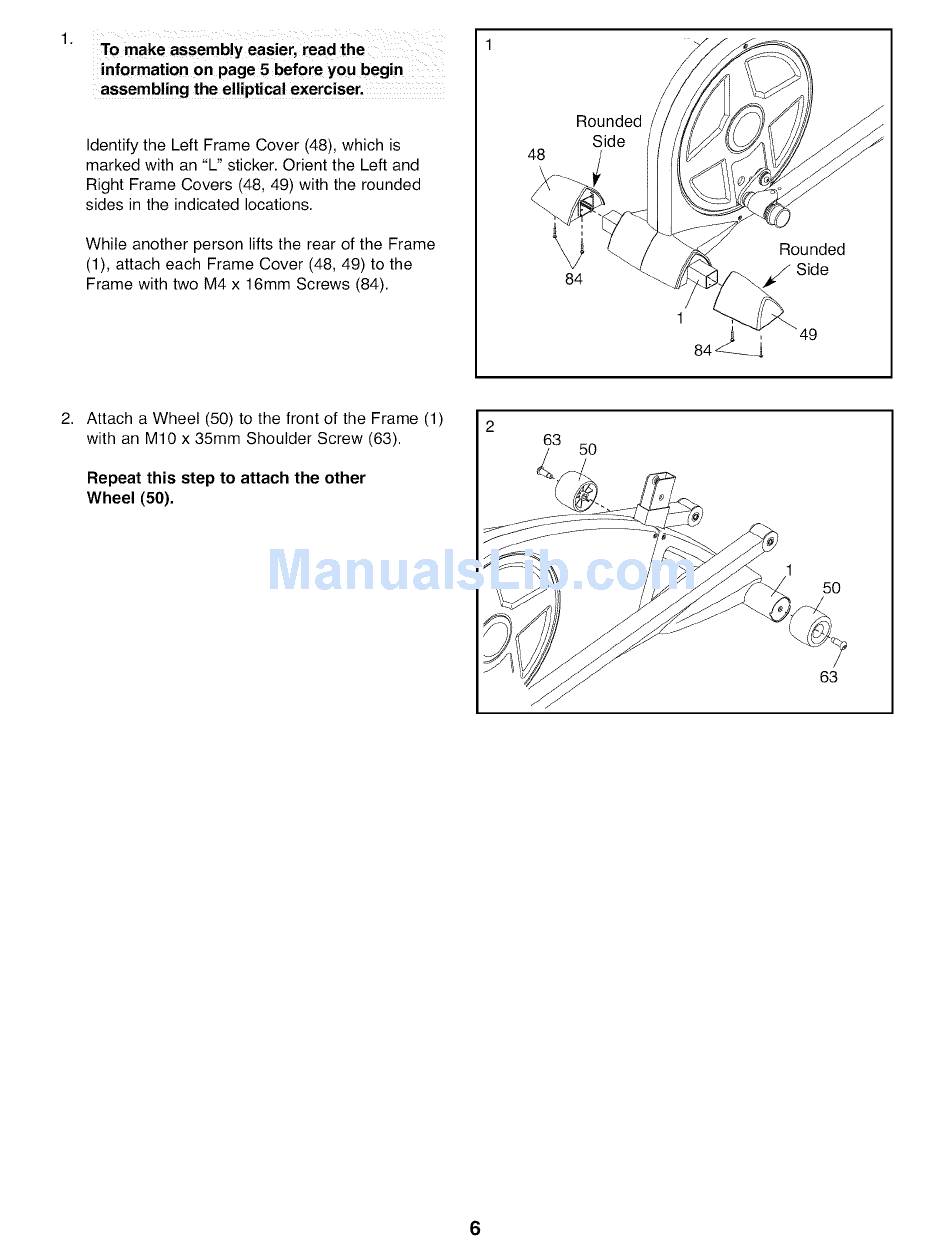

1. 1
information on page 5 before you begin
assembling the elliptical exerciser.
Identify the Left Frame Cover (48), which is
marked with an "L" sticker. Orient the Left and
Right Frame Covers (48, 49) with the rounded
sides in the indicated locations.
While another person lifts the rear of the Frame
(1), attach each Frame Cover (48, 49) to the
Frame with two M4 x 16mm Screws (84).
48
Rounded
Side
84
Rounded
Side
49
2. Attach a Wheel (50) to the front of the Frame (1)
with an M10 x 35mm Shoulder Screw (63).
Repeat this step to attach the other
Wheel (50),
63
5O
1
5O
6
