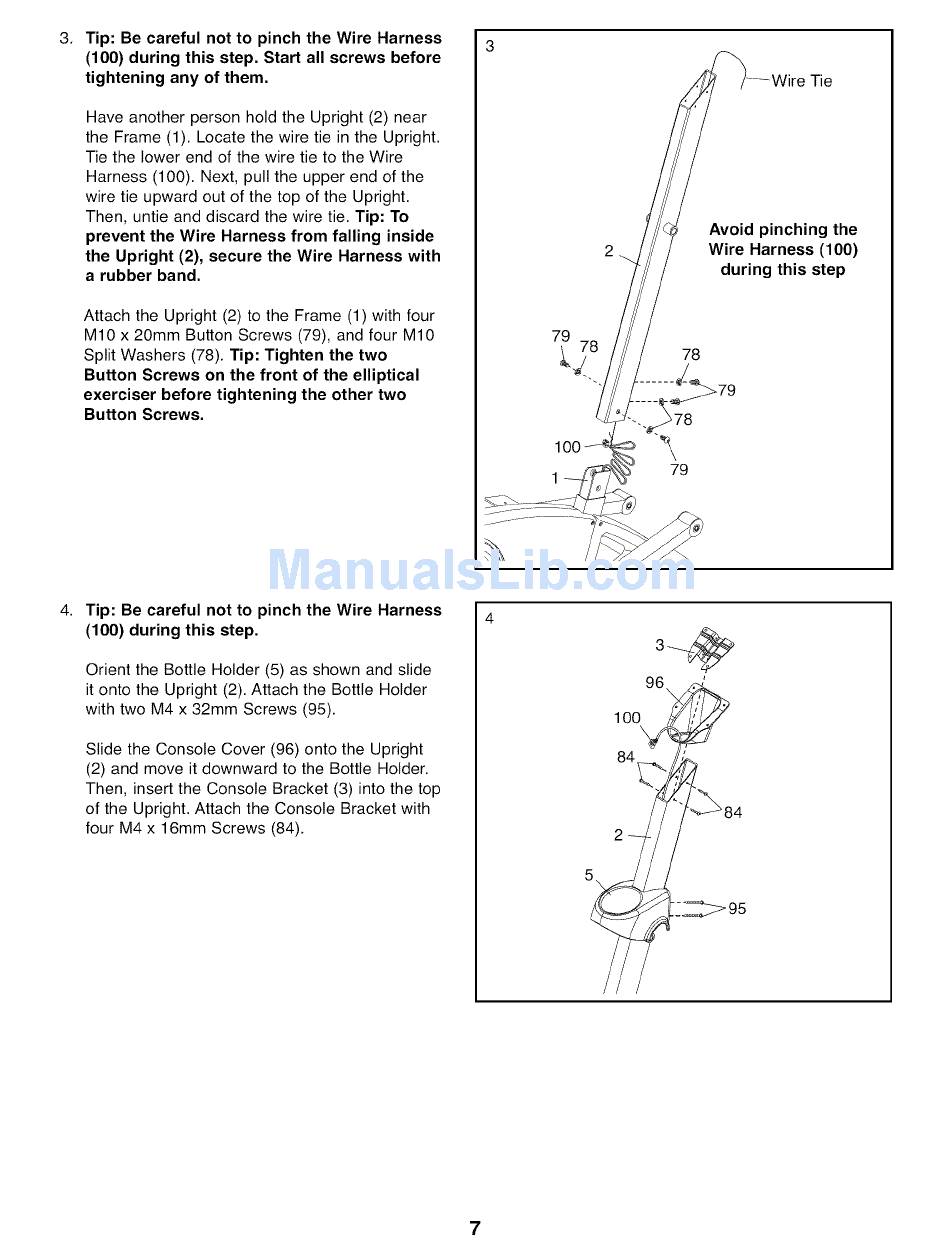

3. Tip: Be careful not to pinch the Wire Harness
(100) during this step, Start all screws before
tightening any of them,
Have another person hold the Upright (2) near
the Frame (1). Locate the wire tie in the Upright.
Tie the lower end of the wire tie to the Wire
Harness (100). Next, pull the upper end of the
wire tie upward out of the top of the Upright.
Then, untie and discard the wire tie. Tip: To
prevent the Wire Harness from falling inside
the Upright (2), secure the Wire Harness with
a rubber band,
Attach the Upright (2) to the Frame (1) with four
MIO x 20mm Button Screws (79), and four MIO
Split Washers (78). Tip: Tighten the two
Button Screws on the front of the elliptical
exerciser before tightening the other two
Button Screws.
Avoid pinching the
Wire Harness (100)
during this step
4
Tip: Be careful not to pinch the Wire Harness
(100) during this step.
Orient the Bottle Holder (5) as shown and slide
it onto the Upright (2). Attach the Bottle Holder
with two M4 x 32mm Screws (95).
Slide the Console Cover (96) onto the Upright
(2) and move it downward to the Bottle Holder.
Then, insert the Console Bracket (3) into the top
of the Upright. Attach the Console Bracket with
four M4 x 16mm Screws (84).
3@
96\
.]_95
7
